150 / 250 Type Top-mounted Spring-operated Automatic Swing Door Operator

  • BFPM150—BFPM250

  • start-motors

  • 067

Availability:
Quantity:
Inquire Add to Basket

1、Model：BFPM150 product parameters
Product name 150 Type Top-mounted Spring-operated Automatic Swing Door operator Controller size 155X65X85mm
Model BFPM150 Max door weight 150KG
Max door width 1100mm
 Spread of axles 40mm
Application Environment Indoor Size 160X80X92mm
Operning direction One-way opening Weight 5.5KG
Max torque 60N.m IP Level IP 54


2、Model：BFPM250 product parameters
Product name 250 Type Top-mounted Spring-operated Automatic Swing Door operator Controller size 165X65X85mm
Model BFPM250 Max door weight 2500KG
Max door width 1000mm Spread of axles 45mm
Application Environment Indoor Size 180X90X115mm
Operning direction One-way opening Weight 7.5KG
Max torque 35N.m IP Level IP 54

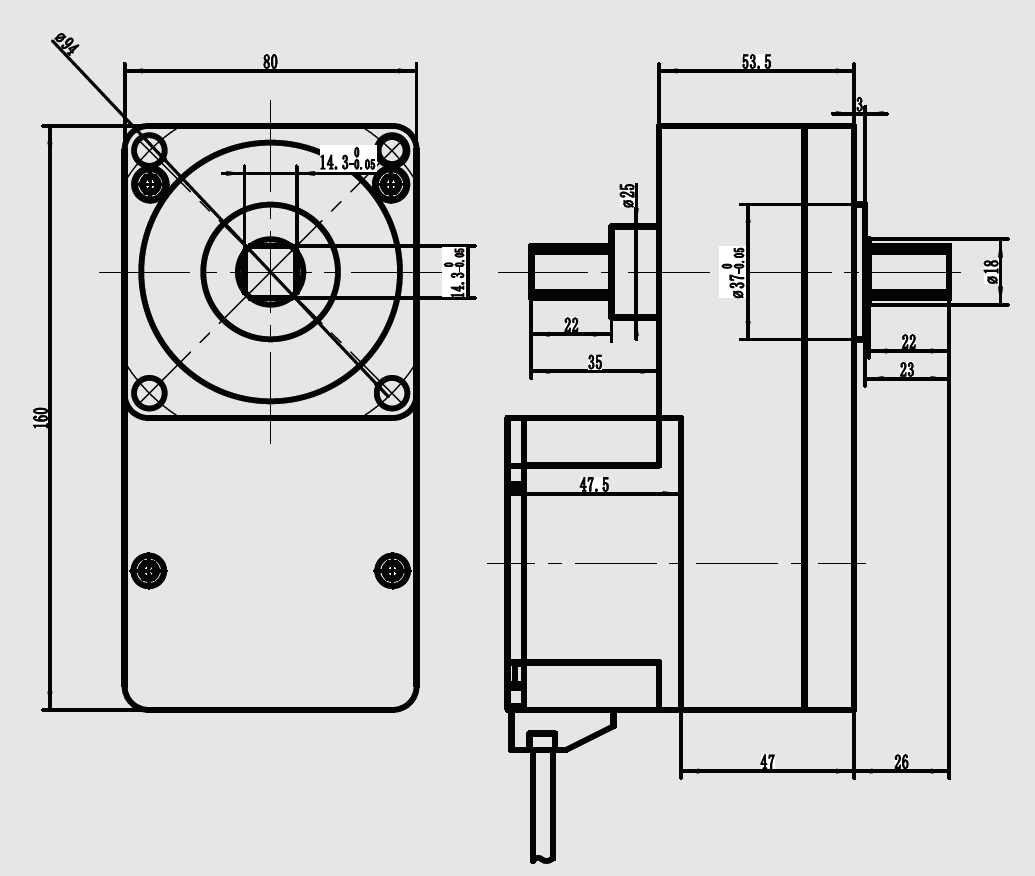

183adf59-60a8-49c8-a836-e094dc20a0f8

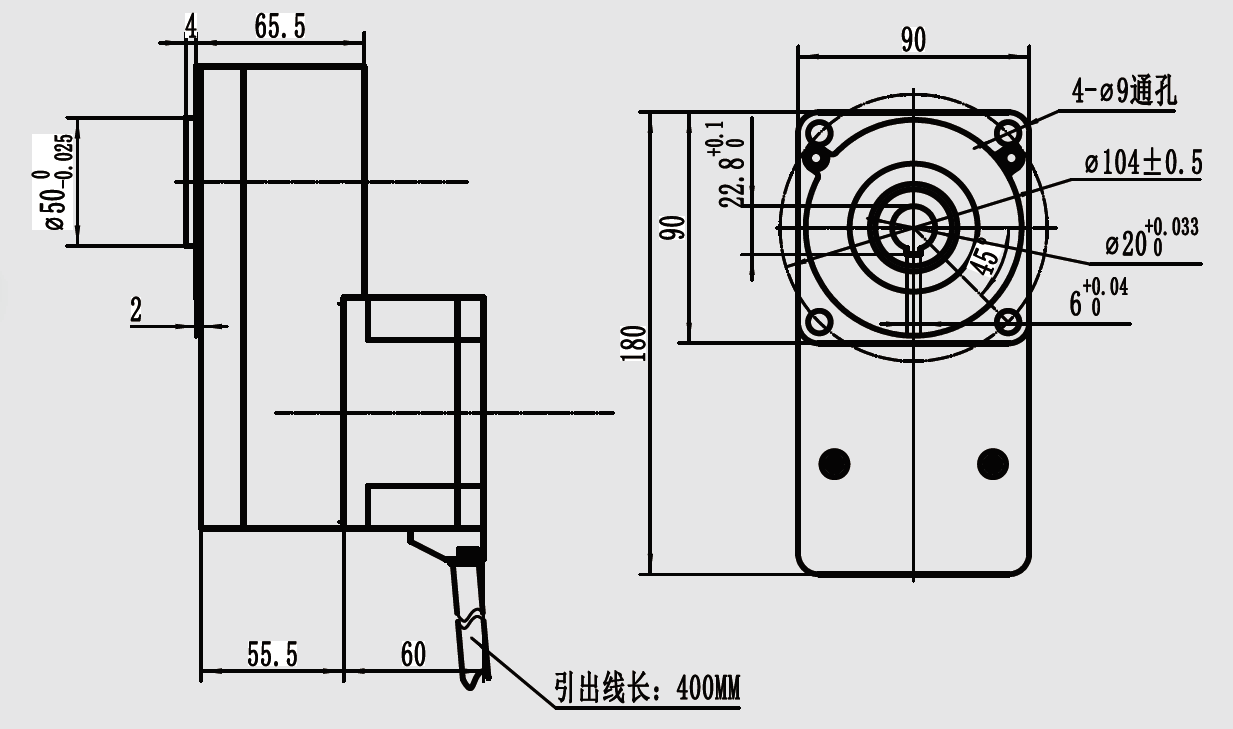

87d7e3d3-9586-47f0-a8fb-5c5cdf38101f
