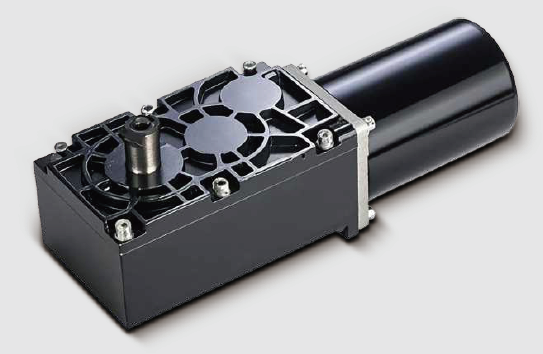

ST253 And 184 Ratio Automatic Swing Door Motor

  • ST253 And 184 Ratio Automatic Swing Door Motor

  • start-motors

  • 0162

Availability:
Quantity:
Inquire Add to Basket

1、Model：BF253-20
Product name 253 Automatic Swing door Motor Rated Current 2.1A
Model BF253-20 Rated Speed 2600RPM
Color Black/customize On-load speed 10RPM
Number of stator slots 12 Gear Ratio 1:253
Magnetic Poles 4 pairs Rated torque without Gearbox 0.35Nm
Motor shaft  milling groove Stall Torque without Gearbox 0.5N.m
Rated Voltage DC24V Motor Socket JST-ELP-09V

Rated Power

500W

 IP Level

IP54


Output Torque 88Nm

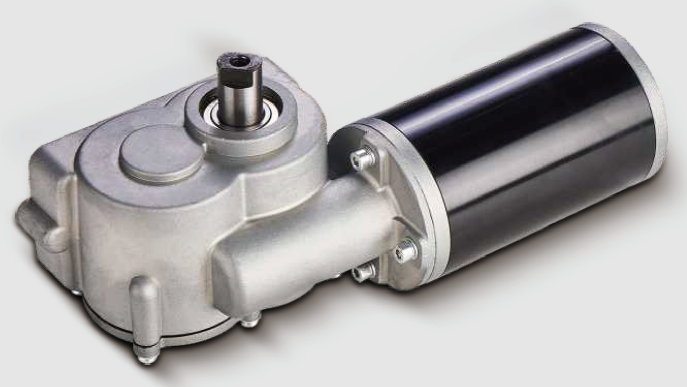

2、Model：BF184HB/6
Product name 184 Automatic Swing door Motor Rated Current 2.5A
Model BF184HB/6 Rated Speed 2300RPM
Color Black/customize On-load speed 12.5RPM
Number of stator slots 6 Gear Ratio 1:84
Magnetic Poles 4 pairs Rated torque without Gearbox 0.45N.m
Motor Shaft Edge milling Stall Torque without Gearbox 0.65N.m
Rated Voltage DC24V Motor Socket JST-ELP-09V

Rated Power

60W

 IP Level

IP54


Output Torque 84Nm

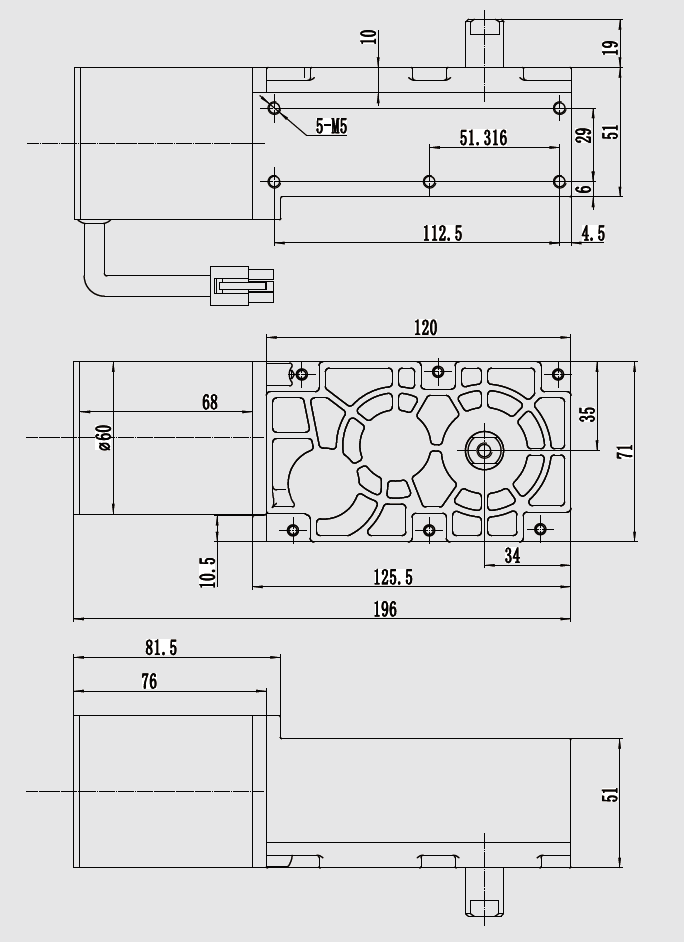

dbe22c4f-dd74-4f6a-9e7e-76c3847b5588d33bdaa2-b485-4765-937d-71d1923c6a53
