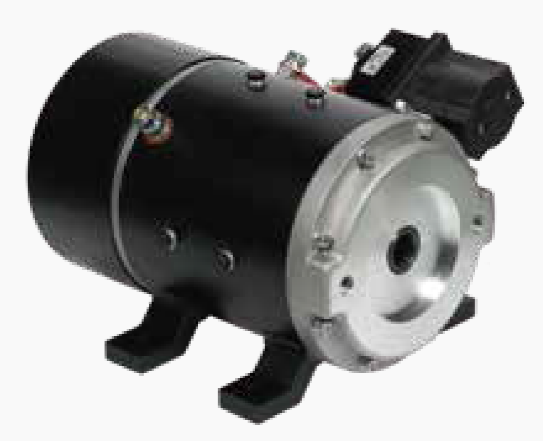

High-torque And Stability Hydraulic DC Motor ST192-LG series Are Applied in Forklift

  • ST192-LG series

  • start-motors

  • 0109

Availability:
Quantity:

1751353302394


电机参数 Motor Data 电机型号   Motor Model
LC054 LC068 LC049
额定功率
    Nominal Power
kW 5.5 7.5 5.5
额定电压
    Nominal Voltage
V 24 24 48
环境温度
    Environmental Tempeature
°C -20-40°C -20-40°C -20-40°C
空载转速
    No-load Speed
Rpm 5000 6500 5500
空载电流
    No-load Current
A 55 85 30
额定负载
    Nominal Torque
N.m 25 27 25
额定转速
    Nominal Speed
Rpm 1800 2600 2100
额定电流
    Nominal Current
A 250 420 150
工作制
    Duty Cycle
S2 15MIN 6MIN 15MIN
S3 25%ED 15%ED 25%ED
电机转向
    Motor Rotation
CW/CCW CCW CCW CCW
电机噪音
    Motor Noise
dBA/1m 90 82 90

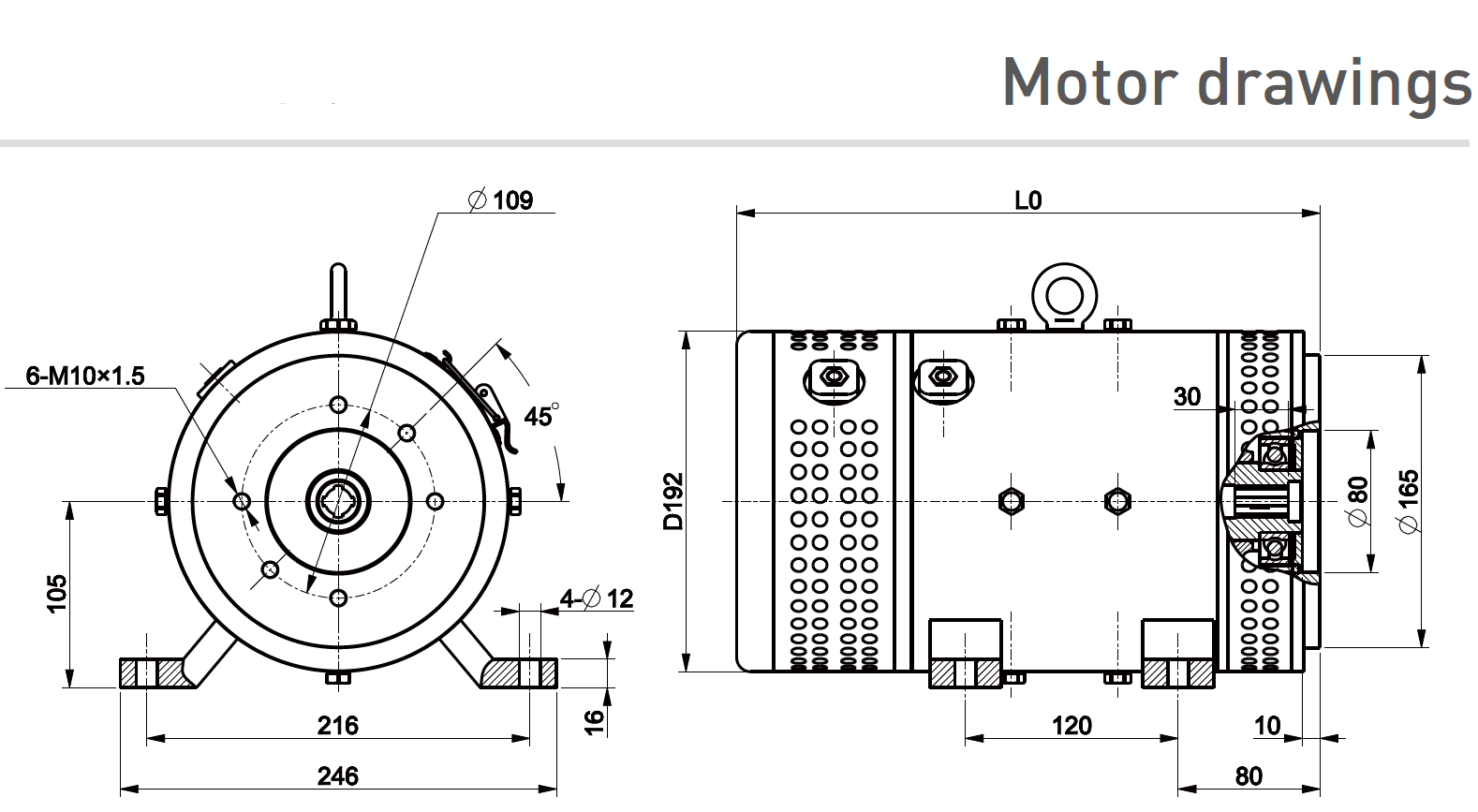

电机尺寸
    Motor Dimension
L(mm) 329 313 329
D(mm) 192 192 192
电机重量
    Motor Weight
Kg 44 36 44
电机设计   Motor Design
绝缘等级
    Insulation Degree
Class H H H
温控
    Thermal Protection
Optional
防水等级
    IP Class
Class IP20 IP20 IP20
励磁方式
    Excitation
Wound 串励
    Series
串励
    Series
串励
    Series
振动
    Vibration
mm/S <5 <5 <5
绝缘强度
    Insulation Resistance
MΩ >20 >20 >20
电机寿命
    Motor Endurance
Hrs 800 800 800
