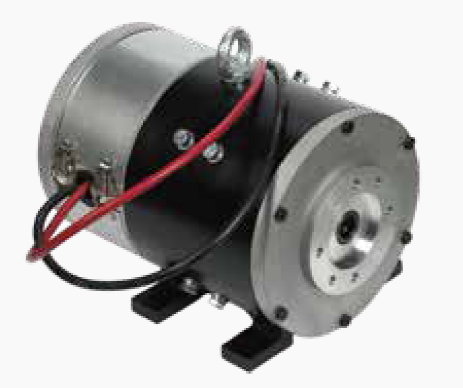

ST240-ZL Series
start-motors
0110
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||
| LC063 | LC050 | ||
| 额定功率 Nominal Power | kW | 7.5 | 7.5 |
| 额定电压 Nominal Voltage | V | 24 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 4200 | 4200 |
| 空载电流 No-load Current | A | 80 | 35 |
| 额定负载 Nominal Torque | N.m | 45 | 45 |
| 额定转速 Nominal Speed | Rpm | 1600 | 1550 |
| 额定电流 Nominal Current | A | 425 | 220 |
| 工作制 Duty Cycle | S2 | 15MIN | 15MIN |
| S3 | 20%ED | 20%ED | |
| 电机转向 Motor Rotation | CW/CCW | CCW | CCW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 82 |

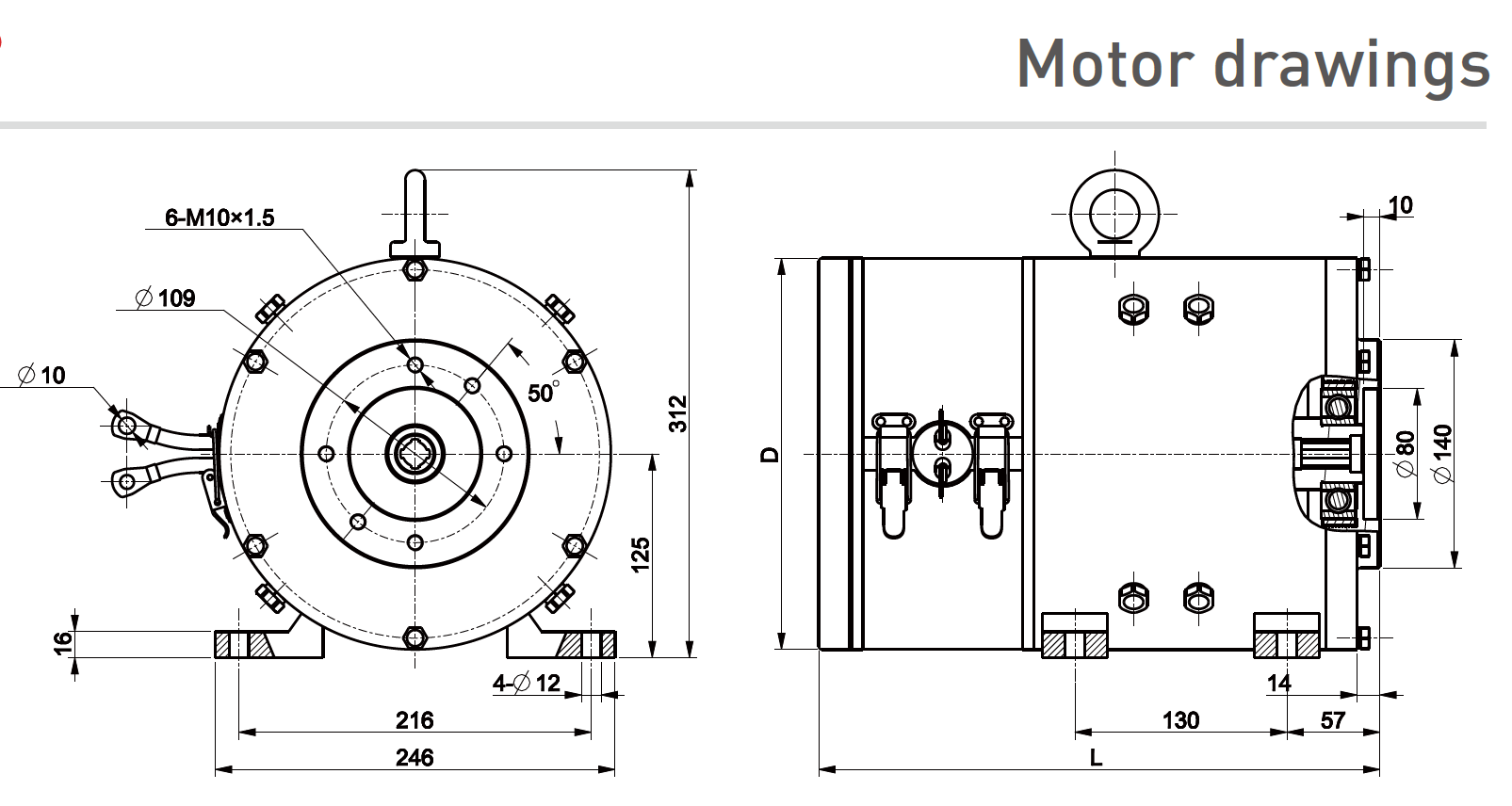

| 电机尺寸 Motor Dimension | L（mm） | 345 | 345 |
| D（mm） | 240 | 240 | |
| 电机重量 Motor Weight | Kg | 68 | 68 |
| 电机设计 Motor Design | |||
| 绝缘等级 Insulation Degree | Class | H | H |
| 温控 Thermal Protection | Optional | √ | √ |
| 防水等级 IP Class | Class | IP20 | IP20 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series |
| 振动 Vibration | mm/S | <5 | <5 |
| 绝缘强度 Insulation Resistance | MΩ | >20 | >20 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 |
| 电机参数 Motor Data | 电机型号 Motor Model | ||
| LC063 | LC050 | ||
| 额定功率 Nominal Power | kW | 7.5 | 7.5 |
| 额定电压 Nominal Voltage | V | 24 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 4200 | 4200 |
| 空载电流 No-load Current | A | 80 | 35 |
| 额定负载 Nominal Torque | N.m | 45 | 45 |
| 额定转速 Nominal Speed | Rpm | 1600 | 1550 |
| 额定电流 Nominal Current | A | 425 | 220 |
| 工作制 Duty Cycle | S2 | 15MIN | 15MIN |
| S3 | 20%ED | 20%ED | |
| 电机转向 Motor Rotation | CW/CCW | CCW | CCW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 82 |
| 电机尺寸 Motor Dimension | L（mm） | 345 | 345 |
| D（mm） | 240 | 240 | |
| 电机重量 Motor Weight | Kg | 68 | 68 |
| 电机设计 Motor Design | |||
| 绝缘等级 Insulation Degree | Class | H | H |
| 温控 Thermal Protection | Optional | √ | √ |
| 防水等级 IP Class | Class | IP20 | IP20 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series |
| 振动 Vibration | mm/S | <5 | <5 |
| 绝缘强度 Insulation Resistance | MΩ | >20 | >20 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 |
