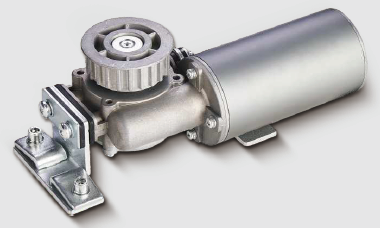

YF360/400 Round 36V Heavy Duty Automatic Door Motor

  • YF360/400P

  • start-motors

  • 0155

Availability:
Quantity:
Inquire Add to Basket


1、Model：YF360/9P;  YF400/9P
Product name 9 slots 36V heavy duty round Motor Rated Current 4.2A/ 5A
Model YF360/400 9P Rated Speed 2800/3000RPM
Color Matte white, Black, Customize On-load speed 187/200RPM
Number of stator slots 9 Gear Ratio 1:15
Magnetic Poles 3 pairs Rated torque without Gearbox 0.8 / 1Nm
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 1 / 1.2N.m
Rated Voltage DC36V Motor Socket JST/ELP-09V

Rated Power

150W/ 180W

 IP Level

IP54


2、Model：YFP360/9P;  YFP400/9P
Product name 9 slots 36V heavy duty 8 sided Motor Rated Current 4.2A/ 5A
Model YFP360/400 9P Rated Speed 2800/3000RPM
Color Black, Customize On-load speed 187/200RPM
Number of stator slots 9 Gear Ratio 1:15
Magnetic Poles 3 pairs Rated torque without Gearbox 0.8 / 1.2N.m
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 1 / 1.2N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

150W/180W

 IP Level

IP54



843c3672-fbb3-4331-8daf-ffb65ad08e84


c75e02c0-b908-480e-82fc-357b37a62f16


Previous:
Next:
DC 36V gearbox motor dc worm gear motor High torque worn motor 150W/180W automatic door motor output speed 200rpm DC Brushless Gear Motor Heavy-Duty Sliding Door motor

Related Products

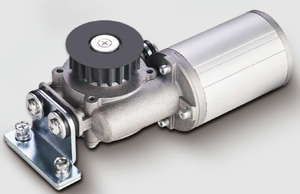

YF200/240 Asian Design 60W/100W Round Automatic Door Motor
YF200/240 Asian Design 60W/100W Round Automatic Door Motor

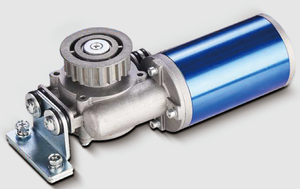

YF150/YF180 Asian Design Automatic Door Round Motor
