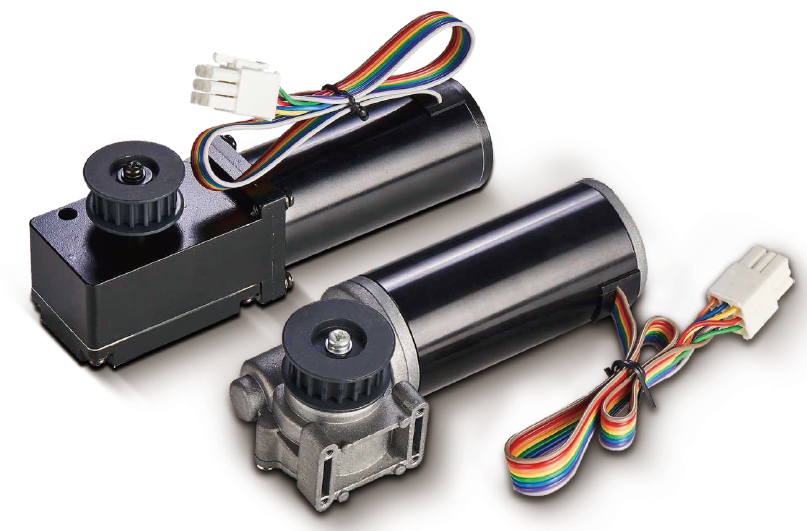

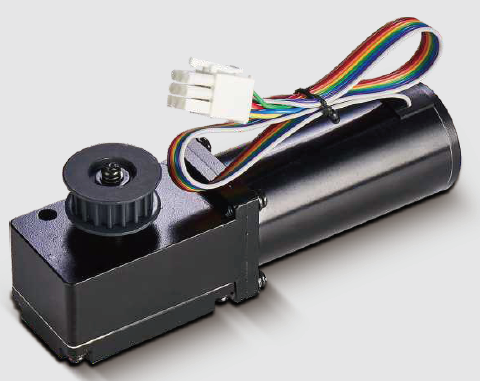

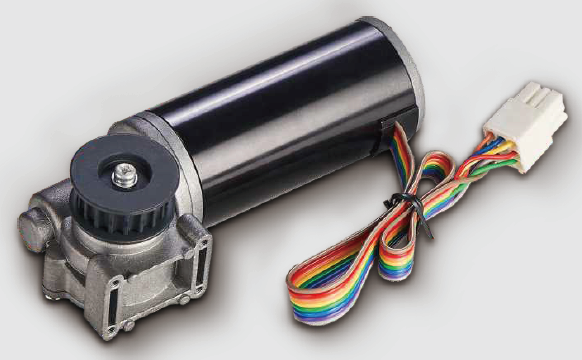

YFL42 Series Direc-drive Mini Motor

  • YFL42 Series Direc-drive Motor

  • start-motors

  • 0160

Availability:
Quantity:
Inquire Add to Basket

1、Model：YFM42, YFL42
Product name 42 style mini Motor Rated Current 1A
Model YFM42/YFL42 Rated Speed 2600RPM
Color Black No-load speed 243/224RPM
Number of stator slots 6 Gear Ratio 1:10.7/1:11.6
Magnetic Poles 4 pairs Rated torque without Gearbox 0.15Nm
Motor Pulley 5M powder metallurgy Stall Torque without Gearbox 0.2N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

25W

 IP Level

IP54


2、Model：YFL42-P; YFL42-S
Product name 42 type direct-drive Motor Rated Current 1.5A / 1A
Model YFL42-P / YFL42-S Rated Speed 2800/2600RPM
Color Black No-load speed 242/224RPM
Number of stator slots 6 Gear Ratio 1:11.6
Magnetic Poles 4 pairs Rated torque without Gearbox 0.2 / 0.15N.m
Motor Pulley 5M powder metallurgy Stall Torque without Gearbox 0.25 / 0.2N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

35W / 25W

 IP Level

IP54

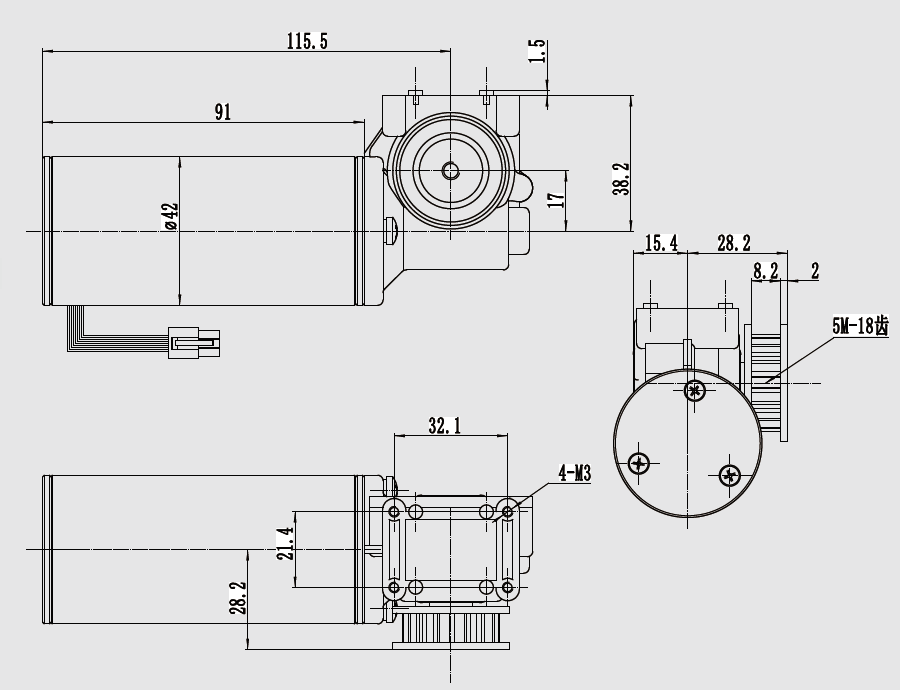

a70f7d35-cb12-4406-9c18-3ee6d0a1a443

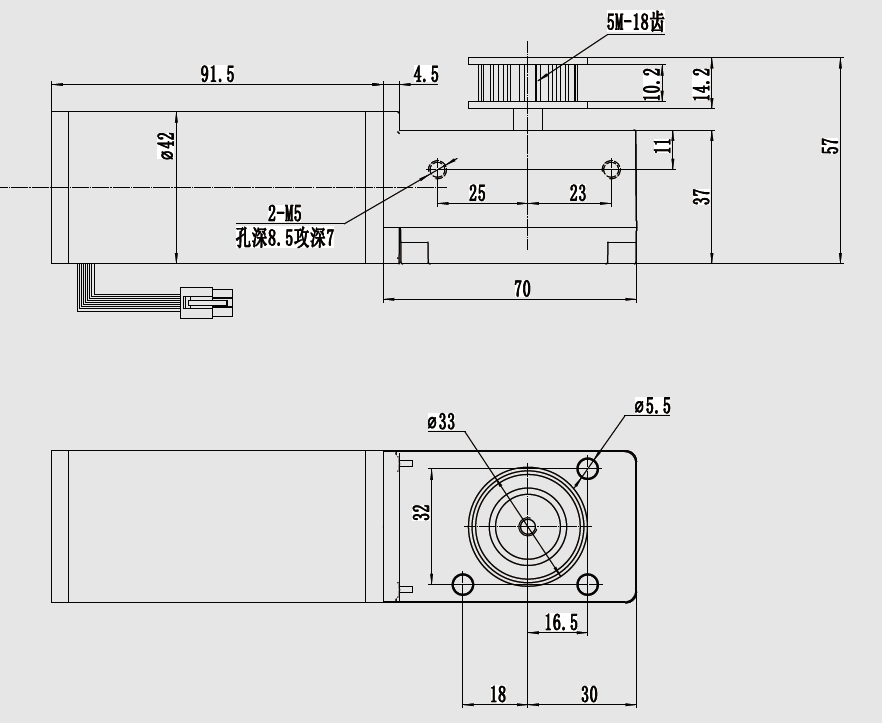

093c0b4b-5233-41bf-9aff-ef0abe4d475c

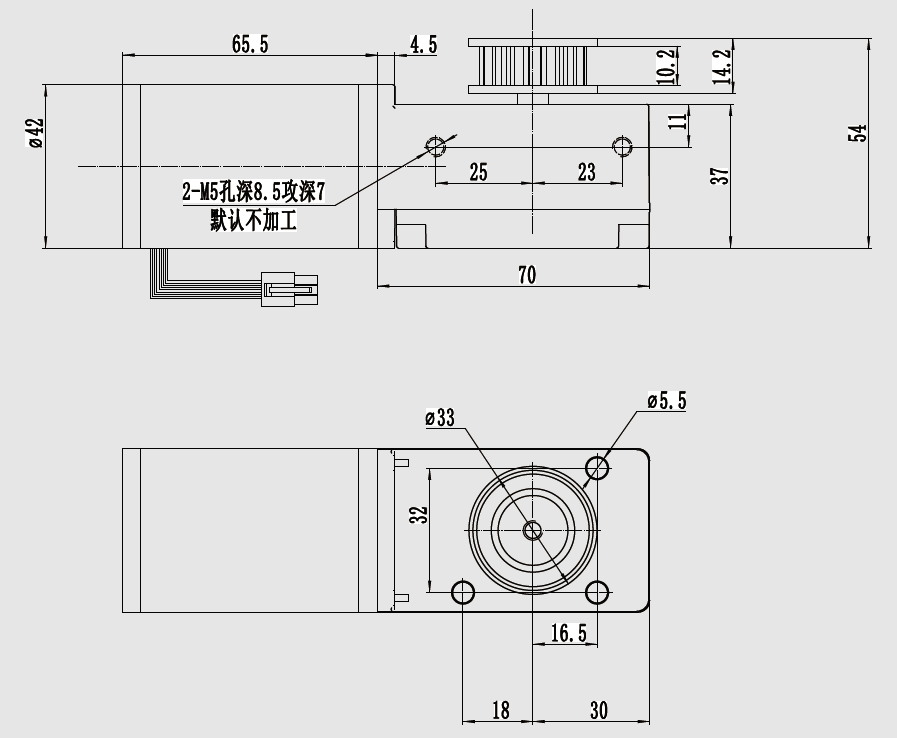

8e8d4749-ee2a-4ebf-b994-dd40a65a1d9b
