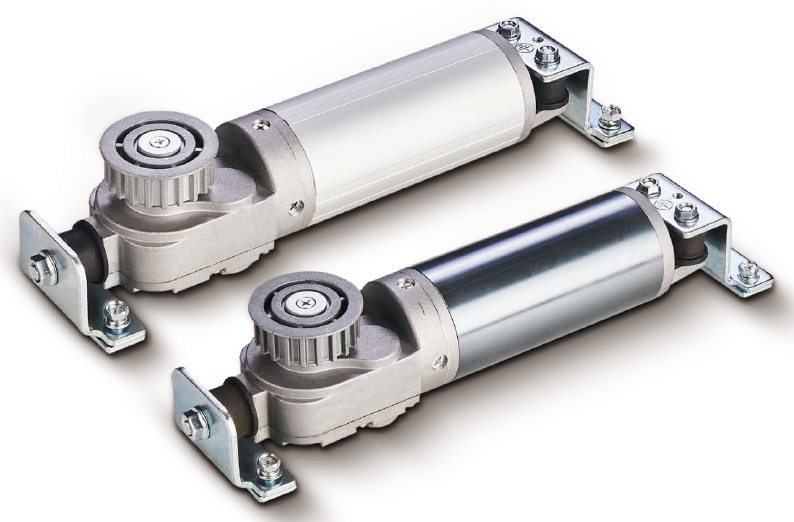

YFK200 Korean Design 100W Round Motor

  • YFK200 Koream gesign

  • start-motors

  • 0159

Availability:
Quantity:
Inquire Add to Basket


1、Model：YFK200/6
Product name 6 slots 100W Korean design round Motor Rated Current 4.2A
Model YFK200/6 Rated Speed 3300RPM
Color Silver with slots, Customize On-load speed 311RPM
Number of stator slots 6 Gear Ratio 1:12
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65Nm
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54


2、Model：YFG200/12
Product name 12 slots 100W Korean design round Motor Rated Current 4.2A
Model YFK200/12 Rated Speed 3100RPM
Color Bright grey, Customize On-load speed 292RPM
Number of stator slots 12 Gear Ratio 1:12
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65N.m
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54



c681e696-ef16-43cd-9c66-31591efdaa82


Previous:
Next:
power 100W Automatic door motor BLDC worm gear motor High quality sliding door motor DC24V Gearbox motor Low Noise BLDC gear motor
