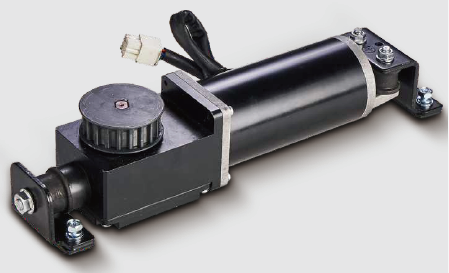

YFA200B Direct Drive Design Automatic Door Round Motor

  • YFA200B Direct-Drive

  • start-motors

  • 0157

Availability:
Quantity:
Inquire Add to Basket


1、Model：YFA200B/6
Product name 6 slots 100W direct-drive round Motor Rated Current 4.2A
Model YFA200B/6 Rated Speed 3300RPM
Color Aluminum alloy natural, Black, Customize On-load speed 138RPM
Number of stator slots 6 Gear Ratio 1:24
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65Nm
Motor Pulley S8M Powder matallurgy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54


2、Model：YFP360/9P;  YFP400/9P
Product name 12 slots 100W direct-drive round Motor Rated Current 4.2A
Model YFA200B/12 Rated Speed 3100RPM
Color Aluminum alloy natural, Black, Customize On-load speed 130RPM
Number of stator slots 12 Gear Ratio 1:24
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65N.m
Motor Pulley S8M Powder matallurgy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54

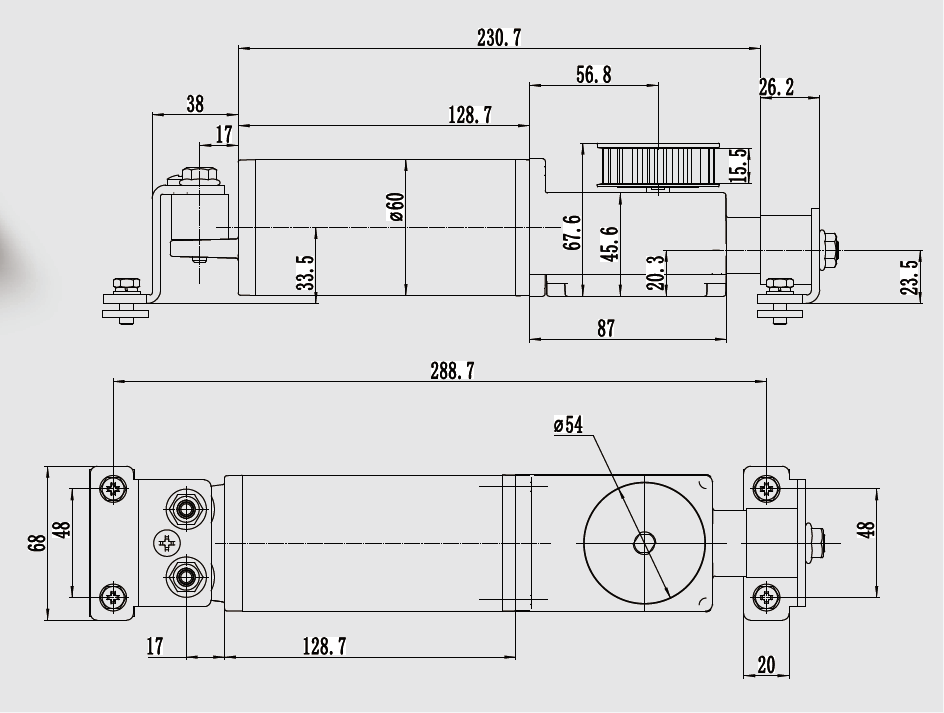

ab9190df-64b9-4657-bab4-7b8f790e2d3c
