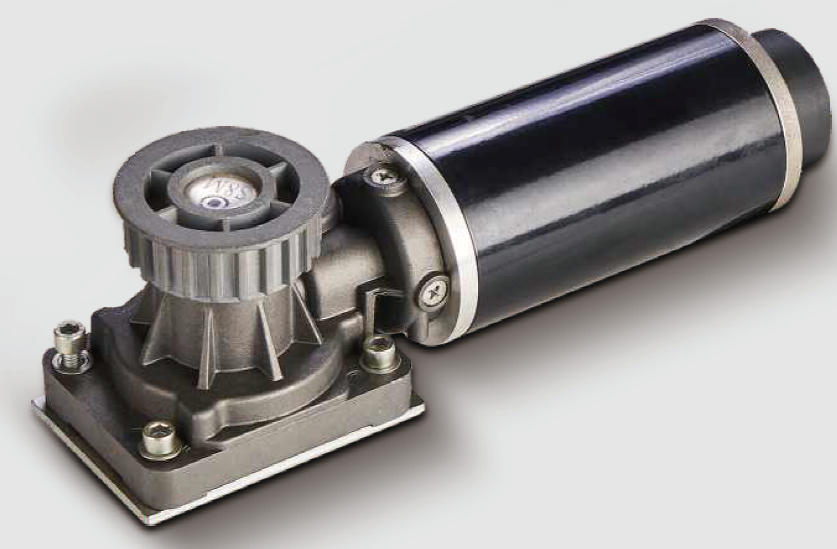

YFG200 German Design 100W Automatic Door Motor

  • YFG200 german design

  • start-motors

  • 0158

Availability:
Quantity:
Inquire Add to Basket


1、Model：YFG200/6
Product name 6 slots 100W German design round Motor Rated Current 4.2A
Model YFG200/6 Rated Speed 3300RPM
Color Aluminum alloy natural, Black, Customize On-load speed 311RPM
Number of stator slots 6 Gear Ratio 1:10.6
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65Nm
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54


2、Model：YFG200/12
Product name 12 slots 100W German design round Motor Rated Current 4.2A
Model YFG200/12 Rated Speed 3100RPM
Color Aluminum alloy natural, Black, Customize On-load speed 292RPM
Number of stator slots 12 Gear Ratio 1:10.6
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65N.m
Motor Pulley S8M Zinc alloy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54



8068ba90-7d7b-4718-acae-1052cd338795


Previous:
Next:
Automatic door motor power 100W dc worm gear motor high torque Low noise automatic door motor DC24V Gearbox motor
