Electric-basketball Stands Power Units And Tyre Changer

A hydraulic power unit is usually composed of the following core components:

• Hydraulic Pump: Converts the mechanical energy of the motor into hydraulic energy. Common types include gear pumps, piston pumps, and vane pumps.

• DC Motor: Provides power to the hydraulic pump, typically ranging from 0.3 to 4.5 kW.

• Oil Tank: Stores hydraulic oil, while also serving to dissipate heat, precipitate impurities, and separate gas.

• Control Elements: Include solenoid valves, proportional valves, directional control valves, etc., used to regulate oil pressure, flow, and direction, achieving precise control of hydraulic actuators.

• Accumulator: Stores hydraulic energy, balances system pressure fluctuations, and improves power smoothness.

• Auxiliary Devices: Such as filters, coolers, and necessary piping and fittings, ensuring efficient and stable system operation.

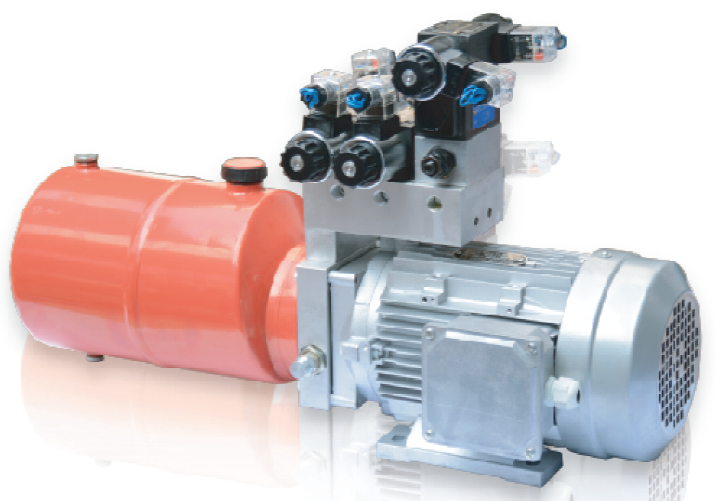

1、Electric-basketball stands power units

This power unit is designed exclusively for the electric-basketballstand,consisting of two independent,typical"power up,gravity down".circuits for the up and down movements of the basketball board andthe whole basketball stand.The pressure switch will stop the motor oncethe basketball or the whole stand is completely lifted.Thepressure-compensated balance valves make the lowering movementsvery smooth.

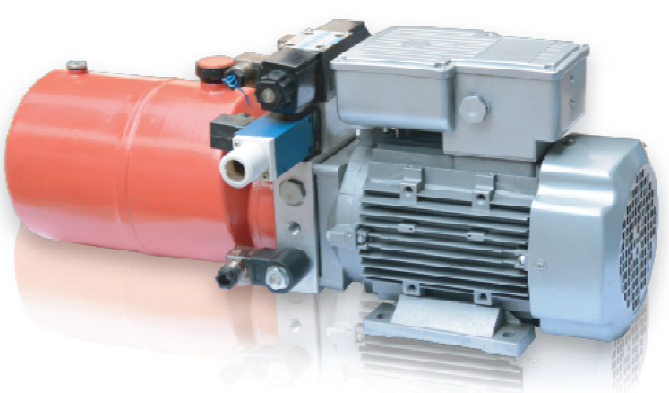

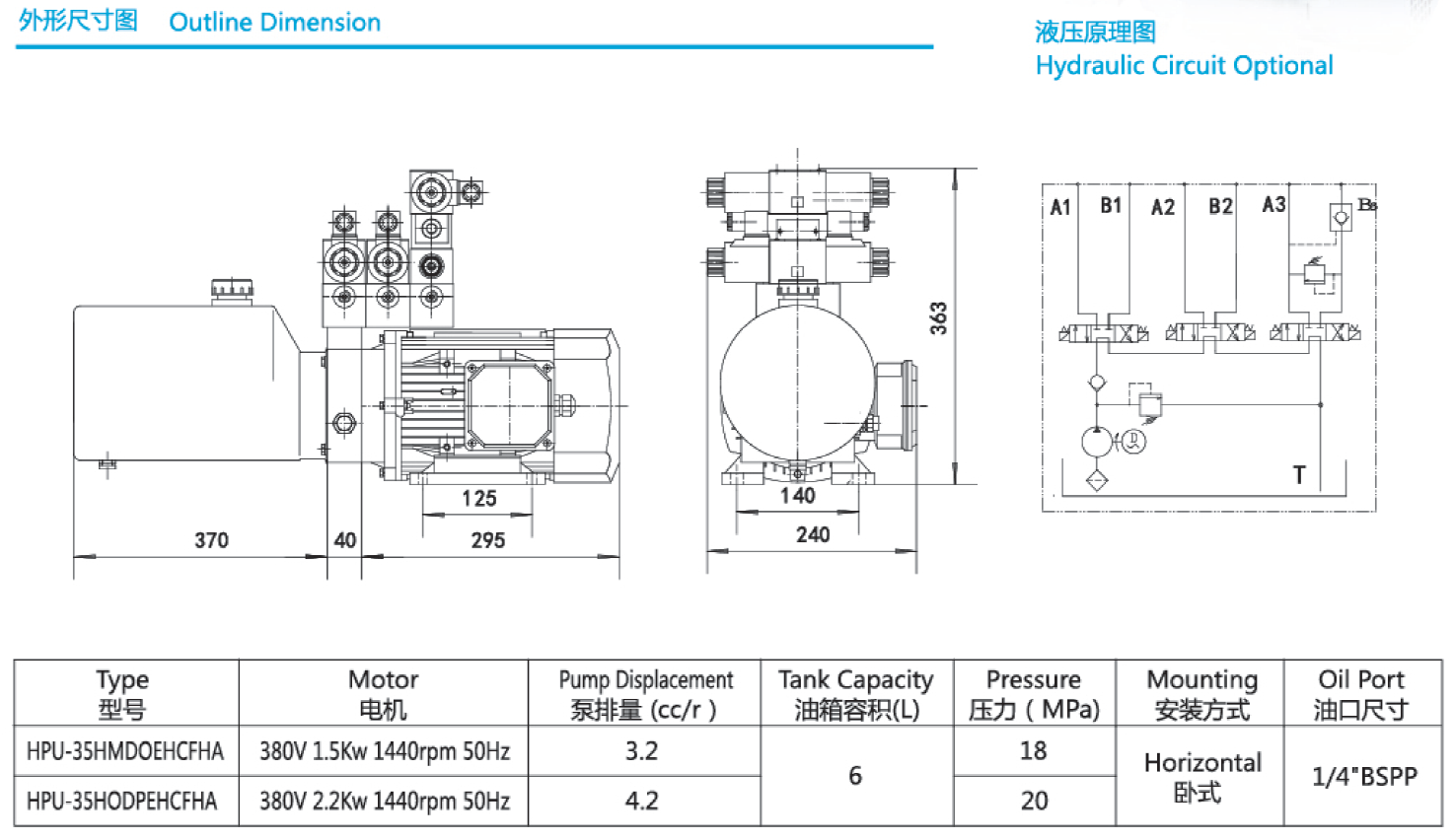

2、Power units for tyre changer

Equiped with a high pressure gear pump,a AC motor,a multi-func-tional manifold valves and a tank,ect.Specially designed for TyreChangersupport the operation of three sets double actioncylinders.
