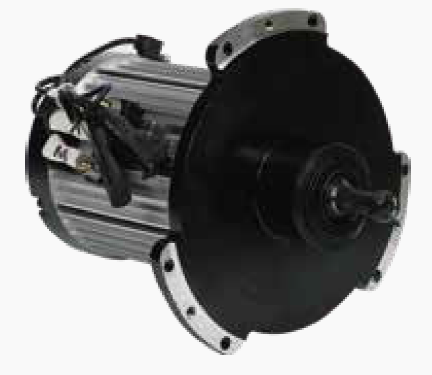

Storage Truck Drive Motor 110series
start-motors
0114
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||||||||
| LF001 | LF002 | LF003 | LF003-48V | LF035 | LF004 | LF008 | LF009 | ||
| 额定功率 Nominal Power | 1.6 | 1.6 | 2.5 | 2.5 | 2.6 | 0.65 | 1.3 | 1.7 | |
| 额定电压 Nominal Voltage | V(AC) | 16V | 16V | 16V | 33V | 16V | 17V | 16V | 16V |
| 额定电流 Nominal Current | A | 100 | 100 | 138 | 64 | 132 | 36 | 81 | 90 |
| 频率 Frequency | HZ | 87 | 87 | 120 | 100 | 81 | 120 | 50 | 72 |
| 额定转速 Nominal Speed | RPM | 2530 | 2530 | 3315 | 2760 | 2265 | 3443 | 1344 | 2025 |
| 效率 Rated efficiency | η% | 83 | 83 | 82 | 82 | 80 | 0.83 | 73 | 0.8 |
| 功率因数 Factor | cosϕ | 0.82 | 0.82 | 0.8 | 0.83 | 0.89 | 0.79 | 0.8 | 0.8 |
| 额定转矩 Nominal Torque | N.m | 6 | 6 | 6.8 | 8.6 | 11 | 1.8 | 9.2 | 7.7 |
| 电机设计 Motor Design | |||||||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H | F/H | F/H | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | |||||||
| 电机噪音 Motor Noise | dBA/1m | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ | √ | √ | √ | √ |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
Practical application：
In modern logistics and industrial production, electric pallet trucks have become an important tool for enterprises to improve handling efficiency due to their environmentally friendly, efficient, and flexible characteristics. These devices use electricity to move goods horizontally and are widely used in warehousing, manufacturing, retail, healthcare, and many other industries.
Examples of application scenarios：

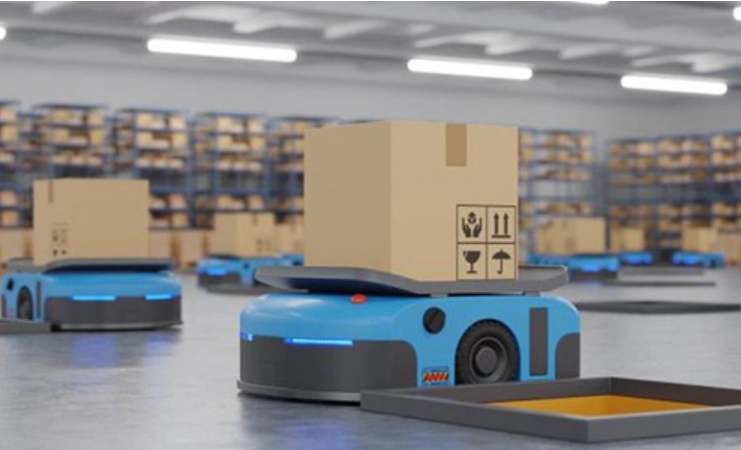

Warehousing and Logistics: Efficiency Champions in Intensive Scenarios
Surface handling: In e-commerce warehouses and third-party logistics centers, electric pallet trucks can quickly transfer goods from shelves to sorting tables and from sorting tables to the outbound gate.

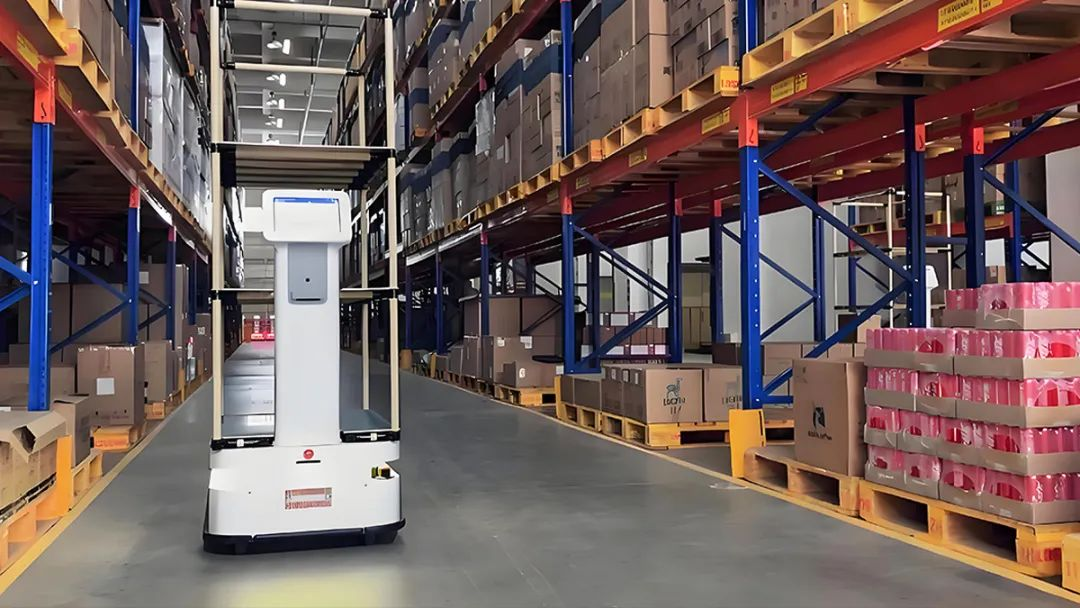

High-bay racking operations: Electric pallet trucks equipped with stacking capabilities (such as reach trucks) can reach deep into high-level racking areas (up to 10 meters) to put goods on and take them off the racks.
Cold chain warehousing: In cold storage warehouses (temperatures as low as -25°C), electric pallet trucks must have low-temperature resistance.
Manufacturing Plant: A Flexible Hub on a Flexible Production Line
In manufacturing, electric pallet trucks undertake key tasks such as material transfer between production lines, semi-finished product storage, and finished product unloading, adapting to diverse production scenarios.
Internal circulation material handling in the workshop.
Heavy equipment collaborative operation
Cleanroom Applications: In environments with stringent environmental requirements, such as semiconductor and pharmaceutical manufacturing, electric transport vehicles made of stainless steel and designed with anti-static properties are required.
Retail and Supermarkets: The "Last Mile" Assistant for Last-Mile Delivery
The handling of goods in the retail industry is characterized by high frequency, small batches, and multiple product categories, making the flexibility and ease of operation of electric pallet trucks a key advantage.
Supermarket back-of-house operations, Convenience store delivery, Emergency transport for promotional events, air cargo, Chemical industry, Medical industry.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
