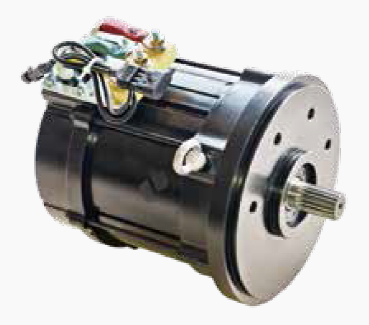

Counter Balance Drive Motor 230 series
start-motors
0116
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||||
| LF015 | LF048 | LF055 | LF043 | ||
| 额定功率 Nominal Power | kW | 6 | 10 | 16.6 | 2.2 |
| 额定电压 Nominal Voltage | V(AC) | 32 | 55 | 53 | 50 |
| 额定电流 Nominal Current | A | 130 | 141 | 236 | 42 |
| 频率 Frequency | HZ | 50 | 101 | 50 | 107.5 |
| 额定转速 Nominal Speed | RPM | 1496 | 2992 | 1476 | 3171 |
| 效率 Rated efficiency | η% | 0.85 | 90 | 91 | 84 |
| 功率因数 Factor | cosϕ | 0.85 | 0.82 | 0.84 | 0.72 |
| 额定转矩 Nominal Torque | N.m | 40.7 | 31.9 | 107 | 6.6 |
| 电机设计 Motor Design | |||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | |||
| 电机噪音 Motor Noise | dBA/1m | 60 | 60 | 60 | 60 |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 | ≥50 |
| 电机参数 Motor Data | 电机型号 Motor Model | ||||
| LF015 | LF048 | LF055 | LF043 | ||
| 额定功率 Nominal Power | kW | 6 | 10 | 16.6 | 2.2 |
| 额定电压 Nominal Voltage | V(AC) | 32 | 55 | 53 | 50 |
| 额定电流 Nominal Current | A | 130 | 141 | 236 | 42 |
| 频率 Frequency | HZ | 50 | 101 | 50 | 107.5 |
| 额定转速 Nominal Speed | RPM | 1496 | 2992 | 1476 | 3171 |
| 效率 Rated efficiency | η% | 0.85 | 90 | 91 | 84 |
| 功率因数 Factor | cosϕ | 0.85 | 0.82 | 0.84 | 0.72 |
| 额定转矩 Nominal Torque | N.m | 40.7 | 31.9 | 107 | 6.6 |
| 电机设计 Motor Design | |||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | |||
| 电机噪音 Motor Noise | dBA/1m | 60 | 60 | 60 | 60 |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 | ≥50 |
