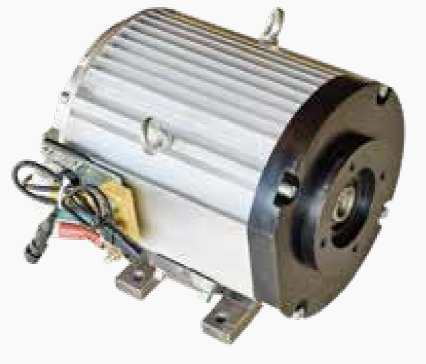

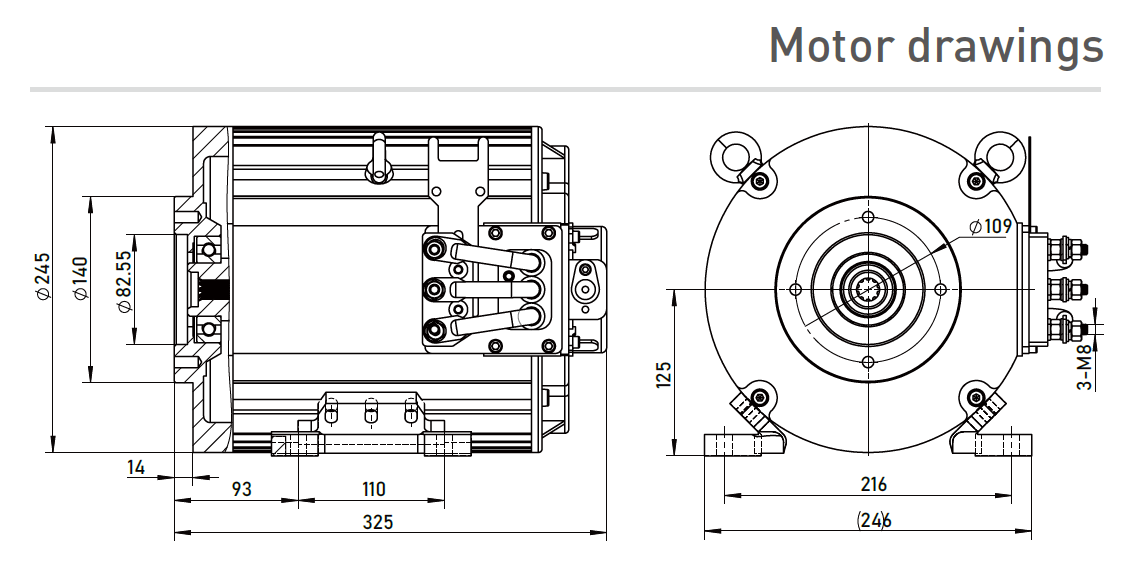

Counter Balance Pump Motor 245 Series
start-motors
0117
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | |||
| LF033 | LF044 | LF048 | ||
| 额定功率 Nominal Power | kW | 26 | 7 | 16 |
| 额定电压 Nominal Voltage | V(AC) | 50 | 50 | 55 |
| 额定电流 Nominal Current | A | 373 | 112 | 212 |
| 频率 Frequency | HZ | 84.7 | 85 | 75 |
| 额定转速 Nominal Speed | RPM | 2462 | 2401 | 2190 |
| 效率 Rated efficiency | η% | 91.5 | 84 | 90.5 |
| 功率因数 Factor | cosϕ | 0.88 | 0.86 | 0.86 |
| 额定转矩 Nominal Torque | N.m | 100 | 27.8 | 69.6 |
| 电机设计 Motor Design | ||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | ||
| 电机噪音 Motor Noise | dBA/1m | 60 | 60 | 60 |
| 温控 Thermal Protection | Optional | √ | √ | √ |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 |
| 电机参数 Motor Data | 电机型号 Motor Model | |||
| LF033 | LF044 | LF048 | ||
| 额定功率 Nominal Power | kW | 26 | 7 | 16 |
| 额定电压 Nominal Voltage | V(AC) | 50 | 50 | 55 |
| 额定电流 Nominal Current | A | 373 | 112 | 212 |
| 频率 Frequency | HZ | 84.7 | 85 | 75 |
| 额定转速 Nominal Speed | RPM | 2462 | 2401 | 2190 |
| 效率 Rated efficiency | η% | 91.5 | 84 | 90.5 |
| 功率因数 Factor | cosϕ | 0.88 | 0.86 | 0.86 |
| 额定转矩 Nominal Torque | N.m | 100 | 27.8 | 69.6 |
| 电机设计 Motor Design | ||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | ||
| 电机噪音 Motor Noise | dBA/1m | 60 | 60 | 60 |
| 温控 Thermal Protection | Optional | √ | √ | √ |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 |
