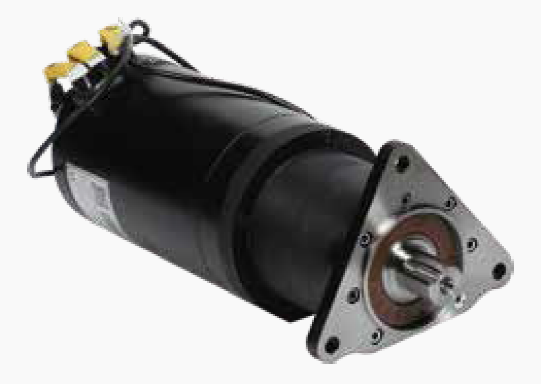

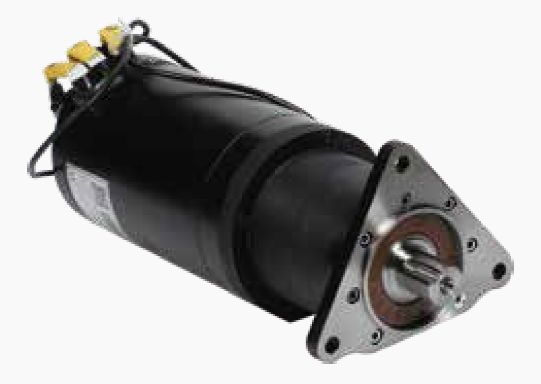

Steering gearbox Motor 116 Series
start-motors
0115
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||||||||||
| LF006 | LF028 | LF040 | LF056 | LC010 | LC011 | LC026 | LC030 | LC037 | LC060 | ||
| 额定功率 Nominal Power | kW | 0.65 | 0.67 | 0.67 | 1.1 | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 |
| 额定电压 Nominal Voltage | V | 16VAC | 32VAC | 50VAC | 54VAC | 24VDC | 48VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| 额定电流 Nominal Current | A | 36 | 21 | 18 | 20 | 13 | 6.5 | 13 | 24 | 24 | 24 |
| 频率 Frequency | HZ | 120 | 77 | 103 | 129 | / | / | / | / | / | / |
| 额定转速 Nominal Speed | RPM | 3487 | 2156 | 3004 | 3432 | 3200 | 3200 | 3600 | 3000 | 3000 | 3000 |
| 效率 Rated efficiency | η% | 83 | 77 | 78.5 | 74.5 | / | / | / | / | / | / |
| 功率因数 Factor | cosϕ | 0.79 | 0.76 | 0.6 | 0.78 | / | / | / | / | / | / |
| 额定转矩 Nominal Torque | N.m | 1.8 | 3 | 2.1 | 3.1 | 0.59 | 0.59 | 0.59 | 1.19 | 1.19 | 1.19 |
| 减速比 Reduction ratio | i | 50 | 50 | 50 | 50 | 31.5 | 31.5 | 32 | 32 | 32 | 32 |
| 电机设计 Motor Design | |||||||||||
| 工作制 Duty Cycle | Min | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| 绝缘等级 Insulation Class | Class | F/H | F/H | F/H | F/H | F/H | F/H | F/H | F/H | F/H | F/H |
| 防护等级 IP Class | Class | IP20/IP44/IP54/IP56/IP66 | |||||||||
| 电机噪音 Motor Noise | dBA/1m | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ | / | / | / | / | / | / |
| 绝缘强度 Insulation Resistance | MΩ | ≥50 | ≥50 | ≥50 | ≥50 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
