ST190.5-L Series
start-motors
0111
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||||||
| M09 | M10 | M11 | M12 | M13 | M15 | ||
| 额定功率 Nominal Power | kW | 0.4KW | 0.4KW | 0.55KW | 0.55KW | 0.55KW | 0.55KW |
| 额定电压 Nominal Voltage | V | 24V | 24V | 24V | 24V | 24V | 24V |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 235 | 235 | 215 | 215 | 185 | 185 |
| 空载电流 No-load Current | A | 4 | 4 | 4 | 4 | 4 | 4 |
| 额定负载 Nominal Torque | N.m | 21 | 21 | 30 | 30 | 30 | 30 |
| 额定转速 Nominal Speed | Rpm | 180 | 180 | 180 | 180 | 150 | 150 |
| 额定电流 Nominal Current | A | 25 | 25 | 30 | 30 | 30 | 30 |
| 工作制 Duty Cycle | S% | S1 | S1 | S1 | S1 | S1 | S1 |
| 出水口 Water Tube | WT | √ | √ | √ | √ | ||
| 电机转向 Motor Rotation | CW/CCW | CW | CW | CW | CW | CW | CW |
| 安装方式 Installation | Type | 键槽 Keyway | 螺纹 screw thread | 键槽 Keyway | 螺纹 screw thread | 螺纹 screw thread | 螺纹 screw thread |
| 电机噪音 Motor Noise | dBA/1m | <65 | <65 | <65 | <65 | <65 | <65 |

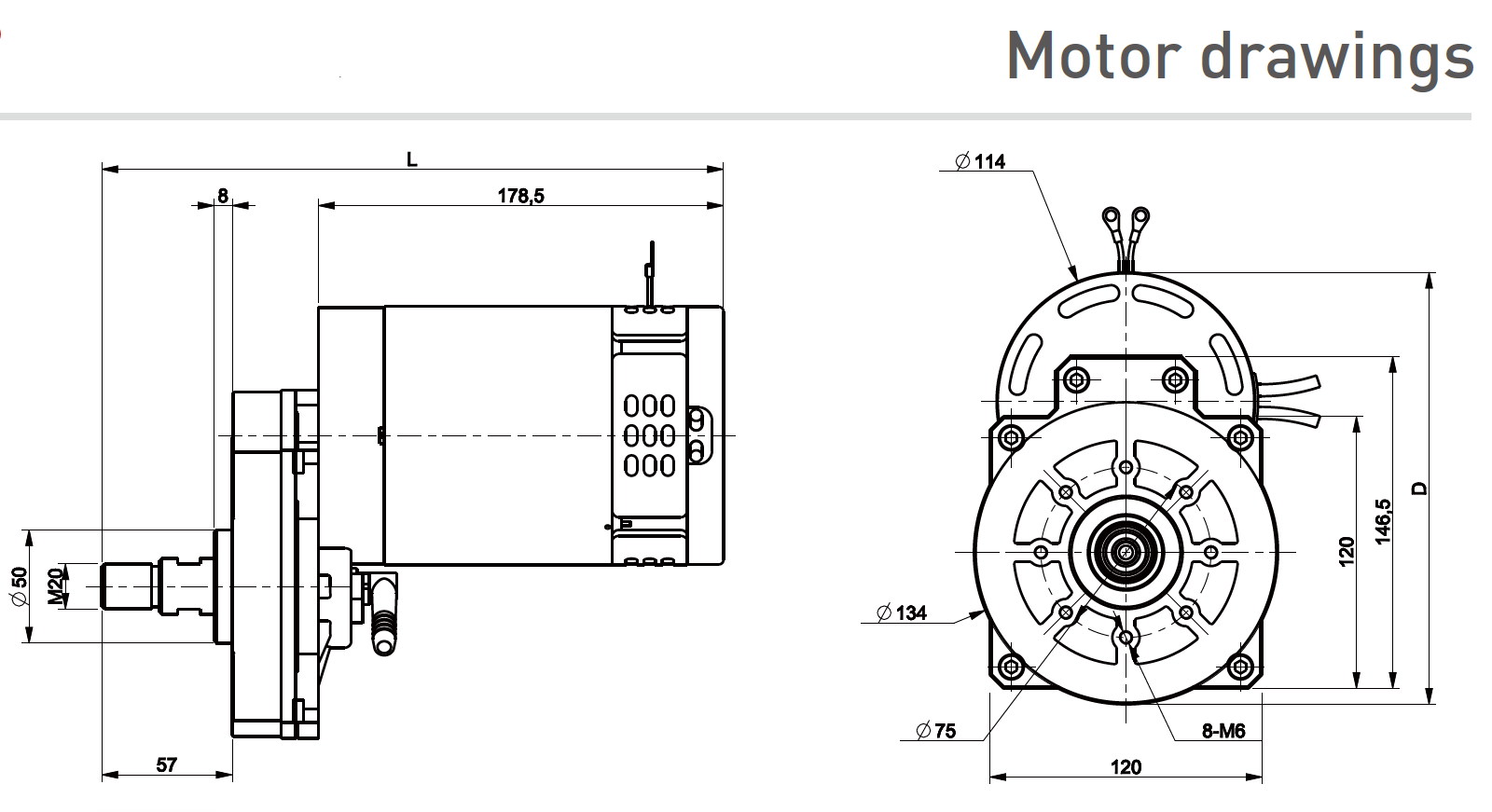

| 电机尺寸 Motor Dimension | L（mm） | 243 | 225 | 267.5 | 249.5 | 270.5 | 274 |
| D（mm） | 190.5 | 190.5 | 190.5 | 190.5 | 190.5 | 190.5 | |
| 电机重量 Motor Weight | Kg | 7.6 | 6.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| 电机设计 Motor Design | |||||||
| 绝缘等级 Insulation Degree | Class | F | F | F | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ | √ | √ |
| 防水等级 IP Class | Class | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| 励磁方式 Excitation | Wound | 永磁 PM | 永磁 PM | 永磁 PM | 永磁 PM | 永磁 PM | 永磁 PM |
| 振动 Vibration | mm/S | <2 | <2 | <2 | <2 | <2 | <2 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
