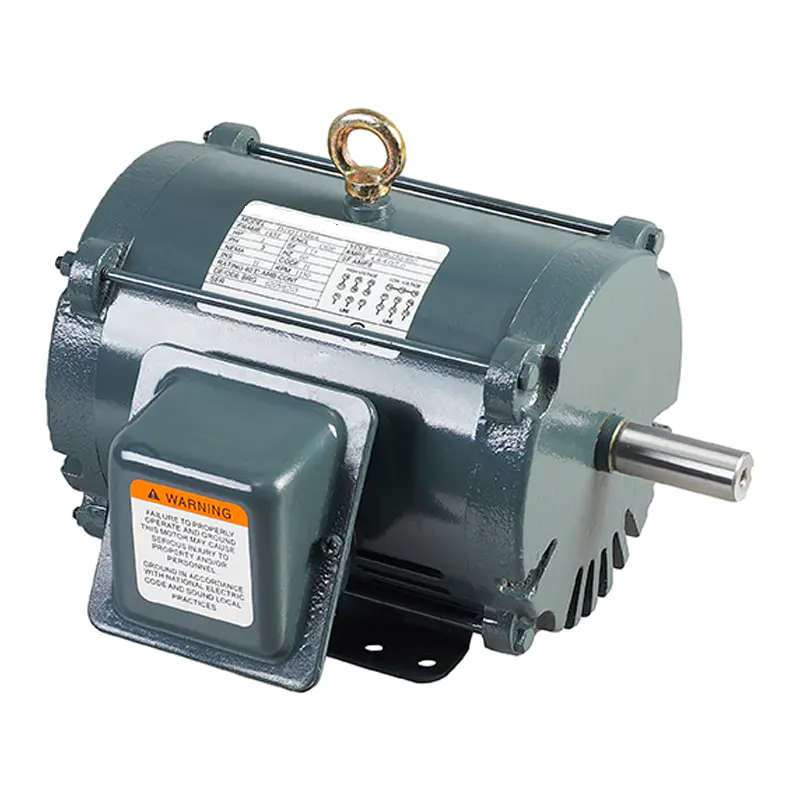

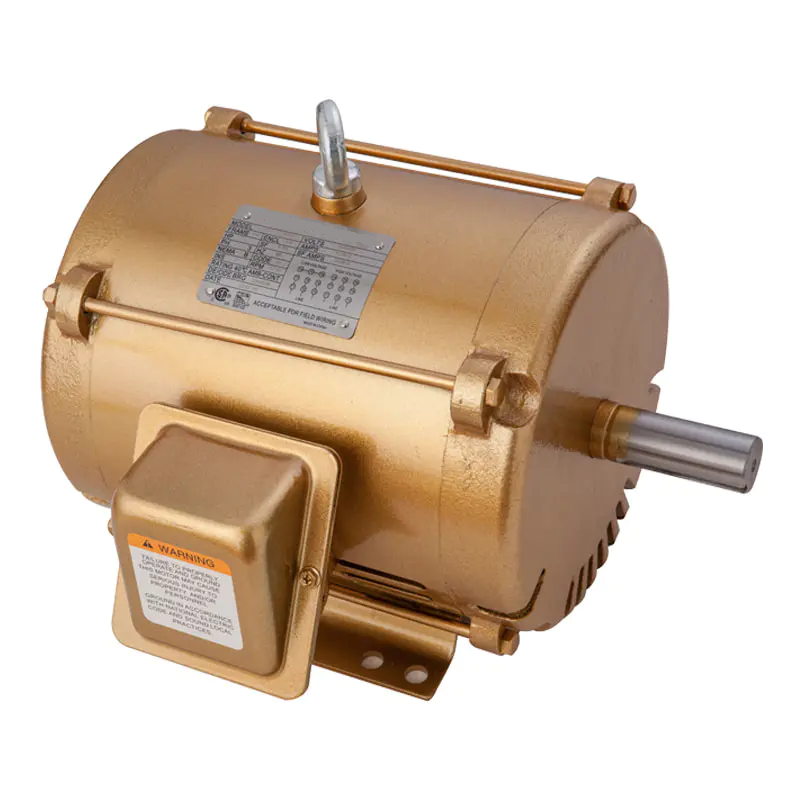

Dripproof Premium Efficiency Motor
start-motors
0150
| Quantity: | |
|---|---|
Features:
HP: 1HP-20HP
Pole: 2P, 4P, 6P
Frame: 56-256T
Rolled steel
NEMA design: B
Accept C-face Kit
Service factor: 1.15
Insulation Class: F, H (UL approved)
Enclosure: ODP
IP Class: IP23
1、SD56-215T 208-230/460V Three Phase Premium Efficiency Motor Data
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | % | WGT. |
1 | 3600 | 56 | SD561M2A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 77 | 33 |
3600 | 143T | SD143T1M2A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 77 | 34 | |
1800 | 56 | SD561M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 85.5 | 43 | |
1800 | 143T | SD143T1M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 85.5 | 44 | |
1200 | 56 | SD561M6A | 208-230/460 | 60 | ODP | 1.15 | 3.9-3.6Z1.8 | 82.5 | 43 | |
1200 | 145T | SD145T1M6A | 208-230/460 | 60 | ODP | 1.15 | 3.9-3.6Z1.8 | 82.5 | 44 | |
1.5 | 3600 | 56 | SD561.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.7-4.3/2.15 | 83.8 | 40 |
3600 | 143T | SD143T1.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.74.3/2.15 | 83.8 | 41 | |
1800 | 56 | SD561.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5.0-4.5/2.25 | 82.6 | 47 | |
1800 | 145T | SD145T1.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5.0^.5/2.25 | 82.6 | 48 | |
1200 | 182T | SD182T1.5M6A | 208-230/460 | 60 | ODP | 1.15 | 5.2W.8/2.4 | 82.6 | 70 | |
2 | 3600 | 56 | SD562M2A | 208-230/460 | 60 | ODP | 1.15 | 5.8-6.3/2.65 | 84.2 | 40 |
3600 | 145T | SD145T2M2A | 208-230/460 | 60 | ODP | 1.15 | 5.8-6.3/2.65 | 84.2 | 41 | |
1800 | 56 | SD562M4A | 208-230/460 | 60 | ODP | 1.15 | 6.3-5.9/2.95 | 86.5 | 50 | |
1800 | 145T | SD145T2M4A | 208-230/460 | 60 | ODP | 1.15 | 6.3-5.9/2.95 | 86.5 | 51 | |
1200 | 184T | SD184T2M6A | 208-230/460 | 60 | ODP | 1.15 | 6.5-6.0/3.0 | 86.5 | 78 | |
3 | 3600 | 56 | SD563M2A | 208-230/460 | 60 | ODP | 1.15 | 8.4-7.7/3.85 | 87.5 | 44 |
3600 | 145T | SD145T3M2A | 208-230/460 | 60 | ODP | 1.15 | 8.4-7.7/3.85 | 84.7 | 45 | |
1800 | 182T | SD182T3M4A | 208-230/460 | 60 | ODP | 1.15 | 9.4-8.6Z4.3 | 84.7 | 82 | |
1200 | 213T | SD213T3M6A | 208-230/460 | 60 | ODP | 1.15 | 9.04.2/4.1 | 89.5 | 110 | |
5 | 3600 | 182T | SD182T5M2A | 208-230/460 | 60 | ODP | 1.15 | 13.6-12.4/6.2 | 88.8 | 76 |
1800 | 184T | SD184T5M4A | 208-230/460 | 60 | ODP | 1.15 | 14.0-13.2/6.6 | 89.5 | 92 | |
1200 | 215T | SD215T5M6A | 208-230/460 | 60 | ODP | 1.15 | 15.0-13.6/6.8 | 89.5 | 121 | |
7.5 | 3600 | 184T | SD184T7.5M2A | 208-230/460 | 60 | ODP | 1.15 | 19.0-17.6/8.8 | 88.7 | 83 |
1800 | 213T | SD213T7.5M4A | 208-230/460 | 60 | ODP | 1.15 | 21.6-19.8/9.9 | 89.9 | 132 | |
10 | 3600 | 213T | SD213T10M2A | 208-230/460 | 60 | ODP | 1.15 | 26.0-23.6/11.8 | 89.3 | 120 |
1800 | 215T | SD215T10M4A | 208-230/460 | 60 | ODP | 1.15 | 29-26.6/13.3 | 89.5 | 145 | |
15 | 3600 | 215T | SD215T15M2A | 208-230/460 | 60 | ODP | 1.15 | 38.0-34.4/17.2 | 89.1 | 134 |
1800 | 254T | SD254T15M4A | 208-230/460 | 60 | ODP | 1.15 | 42.0-38.4/19.2 | 93 | 201 | |
20 | 1800 | 256T | SD256T20M4A | 208-230/460 | 60 | ODP | 1.15 | 57.0-52.0/26.0 | 92.3 | 223 |
2、SD56-215T 575V Three Phase Premium Efficiency Motor Data
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | % | WGT. |
1 | 3600 | 56 | SD561M2D | 575 | 60 | ODP | 1.15 | 1.3 | 77 | 33 |
3600 | 143T | SD143T1M2D | 575 | 60 | ODP | 1.15 | 1.3 | 77 | 34 | |
1800 | 56 | SD561M4D | 575 | 60 | ODP | 1.15 | 1.1 | 85.5 | 43 | |
1800 | 143T | SD143T1M4D | 575 | 60 | ODP | 1.15 | 1.1 | 85.5 | 44 | |
1200 | 56 | SD561M6D | 575 | 60 | ODP | 1.15 | 1.4 | 82.5 | 43 | |
1200 | 145T | SD145T1M6D | 575 | 60 | ODP | 1.15 | 1.4 | 82.5 | 44 | |
1.5 | 3600 | 56 | SD561.5M2D | 575 | 60 | ODP | 1.15 | 1.9 | 84 | 40 |
3600 | 143T | SD143T1.5M2D | 575 | 60 | ODP | 1.15 | 1.9 | 83.9 | 41 | |
1800 | 56 | SD561.5M4D | 575 | 60 | ODP | 1.15 | 1.8 | 86.5 | 47 | |
1800 | 145T | SD145T1.5M4D | 575 | 60 | ODP | 1.15 | 1.8 | 80.9 | 48 | |
1200 | 182T | SD182T1.5M6D | 575 | 60 | ODP | 1.15 | 1.9 | 86.5 | 70 | |
2 | 3600 | 56 | SD562M2D | 575 | 60 | ODP | 1.15 | 2.20 | 85.5 | 40 |
3600 | 145T | SD145T2M2D | 575 | 60 | ODP | 1.15 | 2.20 | 85.5 | 41 | |
1800 | 56 | SD562M4D | 575 | 60 | ODP | 1.15 | 2.3 | 86.5 | 50 | |
1800 | 145T | SD145T2M4D | 575 | 60 | ODP | 1.15 | 2.3 | 86.5 | 51 | |
1200 | 184T | SD184T2M6D | 575 | 60 | ODP | 1.15 | 2.5 | 87.5 | 78 | |
3 | 3600 | 56 | SD563M2D | 575 | 60 | ODP | 1.15 | 3.5 | 85.5 | 44 |
3600 | 145T | SD145T3M2D | 575 | 60 | ODP | 1.15 | 3.5 | 85.5 | 45 | |
1800 | 182T | SD182T3M4D | 575 | 60 | ODP | 1.15 | 3.3 | 89.5 | 82 | |
1200 | 213T | SD213T3M6D | 575 | 60 | ODP | 1.15 | 3.3 | 88.5 | 110 | |
5 | 3600 | 182T | SD182T5M2D | 575 | 60 | ODP | 1.15 | 4.9 | 86.5 | 76 |
1800 | 184T | SD184T5M4D | 575 | 60 | ODP | 1.15 | 5.4 | 89.5 | 92 | |
1200 | 215T | SD215T5M6D | 575 | 60 | ODP | 1.15 | 5.4 | 89.5 | 121 | |
7.5 | 3600 | 184T | SD184T7.5M2D | 575 | 60 | ODP | 1.15 | 7.1 | 88.5 | 83 |
1800 | 213T | SD213T7.5M4D | 575 | 60 | ODP | 1.15 | 7.8 | 91.0 | 132 | |
10 | 3600 | 213T | SD213T10M2D | 575 | 60 | ODP | 1.15 | 9.45 | 89.5 | 120 |
1800 | 215T | SD215T10M4D | 575 | 60 | ODP | 1.15 | 10.5 | 91.7 | 145 | |
15 | 3600 | 215T | SD215T15M2D | 575 | 60 | ODP | 1.15 | 13.8 | 90.2 | 134 |
1800 | 254T | SD254T15M4D | 575 | 60 | ODP | 1.15 | 15.5 | 92.7 | 201 | |
20 | 1800 | 256T | SD256T20M4D | 575 | 60 | ODP | 1.15 | 20.8 | 92.1 | 223 |
Practical application
NEMA motors have a wide range of market applications, including but not limited to industrial equipment such as pumps, fans, conveyors, compressors, and mixers. They can be further subdivided into various types such as induction motors, synchronous motors, servo motors, and stepper motors. Their application scenarios vary depending on their protection rating. For example, NEMA 4 enclosures are suitable for indoor and outdoor environments, protecting against splashes, dust, and rain/snow, and are often used in situations requiring hose cleaning.

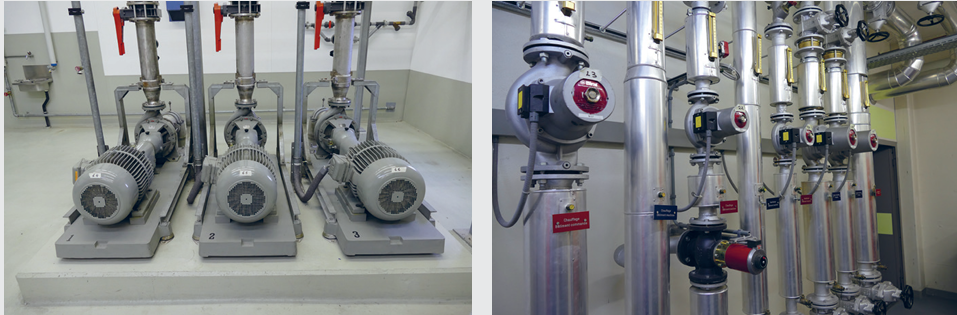

Examples of application scenarios
Pumps: Drive water pumps for conveying liquids, used in both domestic and industrial applications.
Fans and blowers: Used in ventilation, exhaust, and cooling systems.
Conveyors: Used in industrial automation and material handling systems.
Compressors: Used for gas compression, commonly found in industrial and refrigeration fields.
Mixers: Used for mixing materials in industries such as food, pharmaceuticals, and chemicals.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
