F48C NEMA
start-motors
0135
| Quantity: | |
|---|---|

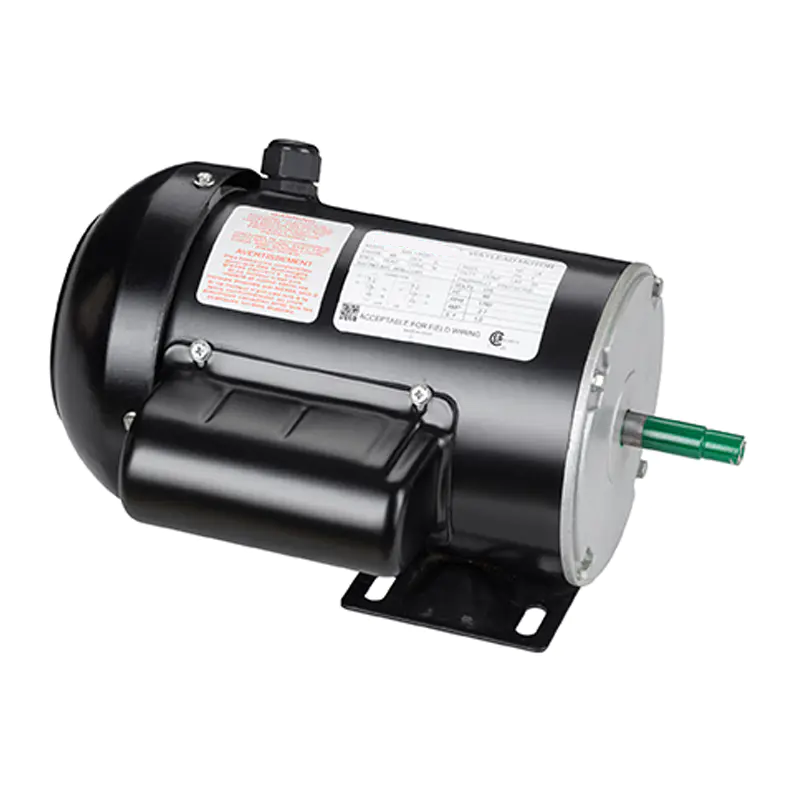

START-MOTORS is a professional 48 Frame Dripproof Single-Phase Motor company with rich industry experience. We can make "tailor-made" 48 Frame Dripproof Single-Phase Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
Features:
HP: 1/3HP-1HP
Pole: 2P, 4P
Frame: 48
Rolled steel
Capacitor Start
NEMA design: N
Service factor: 1.0
Insulation Class: F (UL approved)
Enclosure: TEFC
IP Class: IP44, IP55
Accept Auto Thermal Protector
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 48 | F481/3S2C | 115/230 | 60 | TEFC | 1.0 | 3.53/1.8 | 15 |
1800 | 48 | F481/3S4C-1 | 115/230 | 60 | TEFC | 1.0 | 3.39/1.7 | 16 | |
1/2 | 3600 | 48 | F481/2S2C | 115/230 | 60 | TEFC | 1.0 | 5.11/2.56 | 18 |
1800 | 48 | F481/2S4C-1 | 115/230 | 60 | TEFC | 1.0 | 6.92/3.46 | 21 | |
3/4 | 3600 | 48 | F483/4S2C | 115/230 | 60 | TEFC | 1.0 | 2.93/1.47 | 20 |
1800 | 48 | F483/4S4C | 115/230 | 60 | TEFC | 1.0 | 7.37/3.69 | 22 | |
1 | 3600 | 48 | F481S2C | 115/230 | 60 | TEFC | 1.0 | 9.4/4.7 | 21 |
1800 | 48 | F481S4C | 115/230 | 60 | TEFC | 1.0 | 8.91/4.46 | 25 |
Practical application
NEMA motors are widely used in various industries, including general industrial applications (injection molding machines), HVAC, petrochemicals, textiles, printing, CNC machine tools, agriculture, and food processing. Their applications range from general-purpose motors to heavy-duty motors designed for harsh environments.
Examples of application scenarios

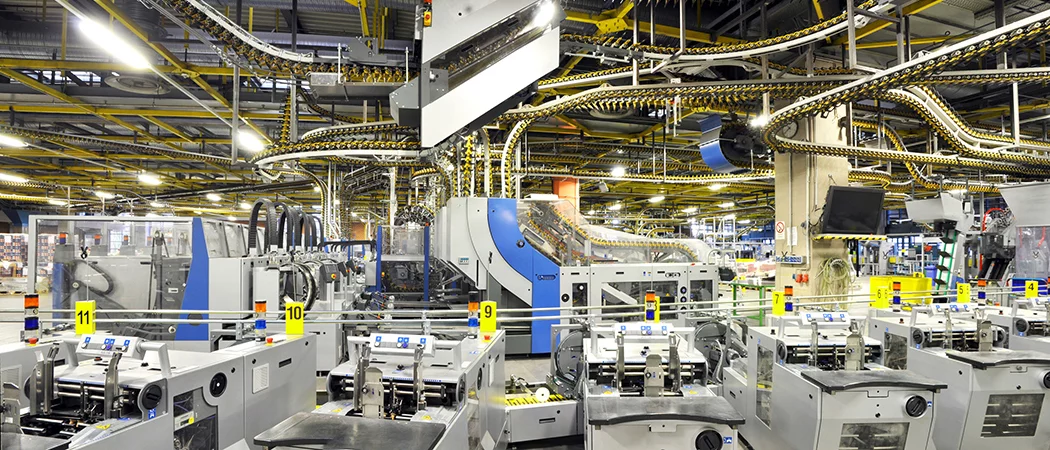

General Industry: Such as conveyor belt technology, textiles, printing, and chemical industries.
Heating, Ventilation, and Air Conditioning (HVAC): Suitable for aerators, exhaust fans, and air conditioning systems.
Harsh Environments: Heavy-duty motors are designed for industries such as pulp, paper, and food processing, such as the NEMA IEEE 841 motor, for harsh operating conditions.

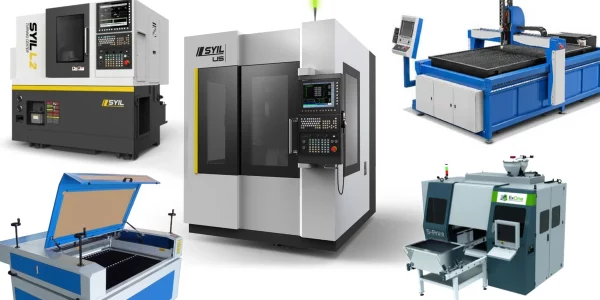

Automation and Precision Machining: Used in CNC machine tools to control the movement of cutting tools and worktables, and in automated production lines to control robotic arms and conveyor belts.
Agriculture: Used for aerators in grain storage on farms, etc.

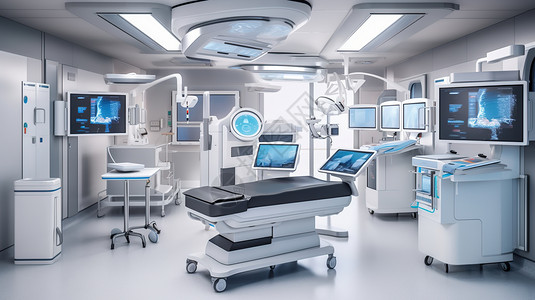

Medical Equipment: Used for positioning and controlling medical imaging equipment and laboratory instruments.
Water Treatment and Building Equipment: For example, in water treatment and building equipment.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
