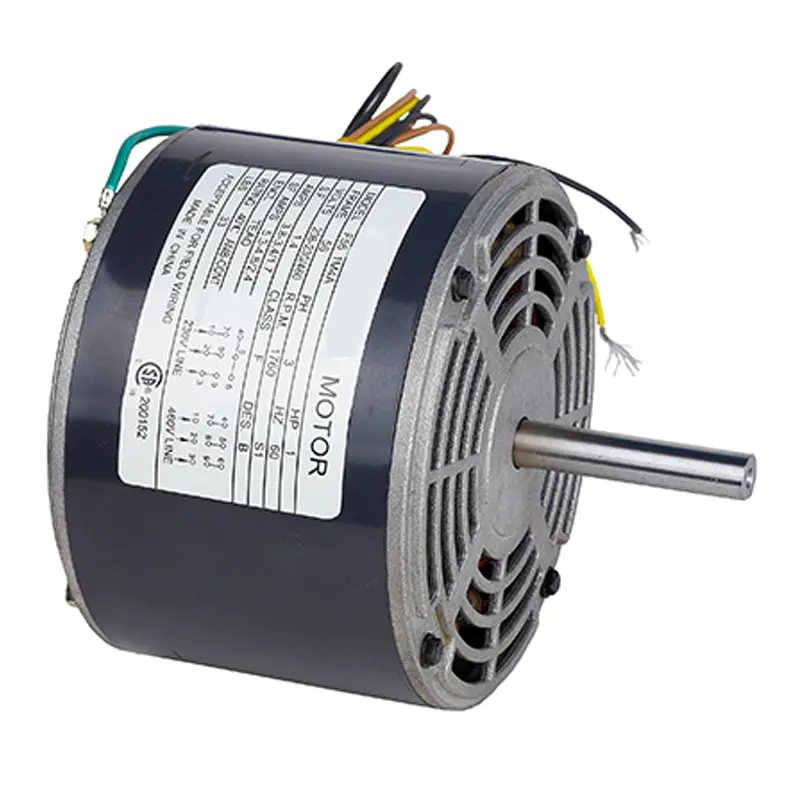

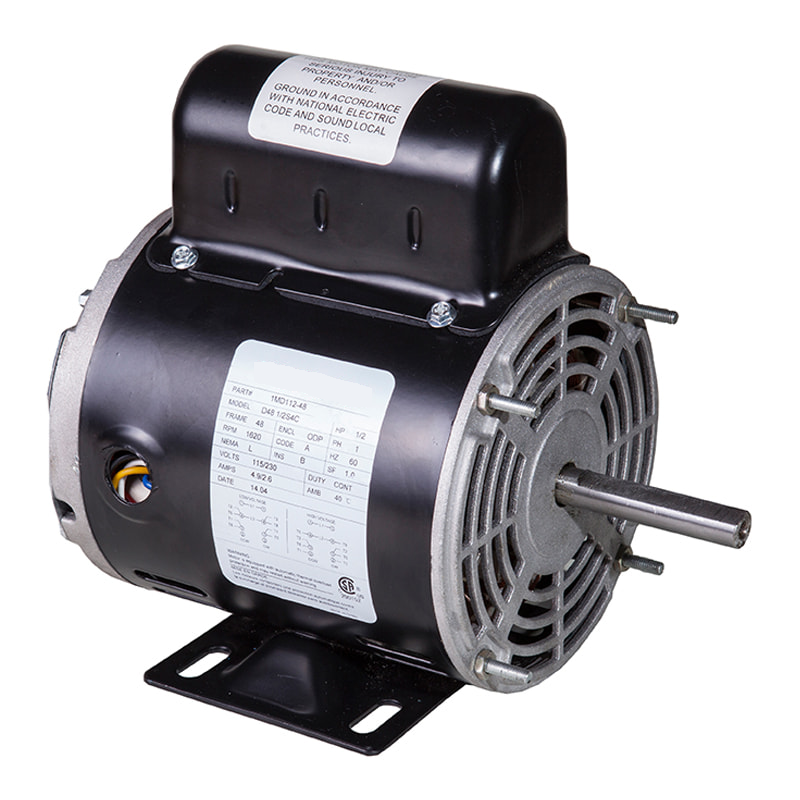

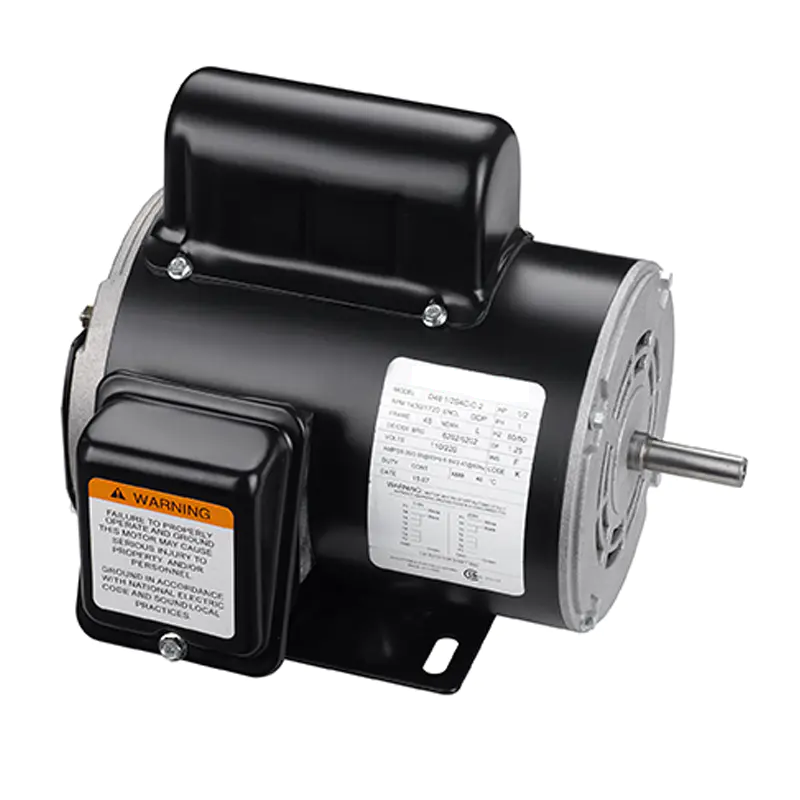

D48C NEMA
start-motors
0134
| Quantity: | |
|---|---|
Features:
HP: 1/10HP-1HP
Pole: 4P，6P，8P
Frame: 48
Rolled steel
NEMA design: N
Service factor: 1.0
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23
CSA&CUS,UL certified
Accept Auto Thermal Protector
START-MOTORS is a professional 48 Frame Dripproof Single-Phase Motor company with rich industry experience. We can make "tailor-made" 48 Frame Dripproof Single-Phase Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.
| HP | RPM | NEMA FRAME | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. LBS. |
| 1/10 | 1800 | 48 | D48 1/10S4C | 115/230 | 60 | ODP | 1.0 | 1.25/0.63 | 11 |
| 1/8 | 1800 | 48 | D48 1/8S4C | 115/230 | 60 | ODP | 1.0 | 1.64/0.84 | 11 |
| 1200 | 48 | D48 1/8S6C | 115/230 | 60 | ODP | 1.0 | 1.6/0.8 | 12 | |
| 900 | 48 | D48 1/8S8C-1 | 115/230 | 60 | ODP | 1.0 | 2.1/1.05 | 13 | |
| 1/6 | 1800 | 48 | D48 1/6S4C | 115/230 | 60 | ODP | 1.0 | 2.17/1.09 | 11 |
| 1200 | 48 | D48 1/6S6C | 115/230 | 60 | ODP | 1.0 | 2.12/1.06 | 12 | |
| 900 | 48 | D48 1/6S8C | 115/230 | 60 | ODP | 1.0 | 2.75/1.38 | 13 | |
| 1/5 | 1800 | 48 | D48 1/5S4C | 115/230 | 60 | ODP | 1.0 | 2.2/1.1 | 11 |
| 1200 | 48 | D48 1/5S6C-1 | 115/230 | 60 | ODP | 1.0 | 2.6/1.4 | 12 | |
| 900 | 48 | D48 1/5S8C-1 | 115/230 | 60 | ODP | 1.0 | 2.81/1.41 | 15 | |
| 1/4 | 1800 | 48 | D48 1/4S4C | 115/230 | 60 | ODP | 1.0 | 2.7/1.4 | 11 |
| 1200 | 48 | D48 1/4S6C-1 | 115/230 | 60 | ODP | 1.0 | 3/1.6 | 13 | |
| 900 | 48 | D48 1/4S8C | 115/230 | 60 | ODP | 1.0 | 3.62/1.81 | 15 | |
| 1/3 | 1200 | 48 | D48 1/3S6C | 115/230 | 60 | ODP | 1.0 | 3.6/1.8 | 12 |
| 900 | 48 | D48 1/3S8C | 115/230 | 60 | ODP | 1.0 | 4.17/2.09 | 17 | |
| 1/2 | 1800 | 48 | D48 1/2S4C-1 | 115/230 | 60 | ODP | 1.0 | 4.7/2.45 | 19 |
| 1200 | 48 | D48 1/2S6C | 115/230 | 60 | ODP | 1.0 | 5.1/2.55 | 20 | |
| 900 | 48 | D48 1/2S8C | 115/230 | 60 | ODP | 1.0 | 5.75/2.88 | 31 | |
| 3/4 | 1800 | 48 | D48 3/4S4C | 115/230 | 60 | ODP | 1.0 | 6.73/3.54 | 20 |
| 1200 | 48 | D48 3/4S6C | 115/230 | 60 | ODP | 1.0 | 7.78/3.89 | 22 | |
| 1 | 1800 | 48 | D48 1S4C | 115/230 | 60 | ODP | 1.0 | 9.5/4.95 | 21 |
| 1200 | 48 | D48 1S6C | 115/230 | 60 | ODP | 1.0 | 11/5.5 | 26 |
Practical application
NEMA motors have a wide range of market applications, including but not limited to industrial equipment such as pumps, fans, conveyors, compressors, and mixers. They can be further subdivided into various types such as induction motors, synchronous motors, servo motors, and stepper motors. Their application scenarios vary depending on their protection rating. For example, NEMA 4 enclosures are suitable for indoor and outdoor environments, protecting against splashes, dust, and rain/snow, and are often used in situations requiring hose cleaning.
Examples of application scenarios
Pumps: Drive water pumps for conveying liquids, used in both domestic and industrial applications.
Fans and blowers: Used in ventilation, exhaust, and cooling systems.
Conveyors: Used in industrial automation and material handling systems.
Compressors: Used for gas compression, commonly found in industrial and refrigeration fields.
Mixers: Used for mixing materials in industries such as food, pharmaceuticals, and chemicals.
NEMA motor standards cover a wide range of topics, including:
• Motor dimensions and enclosures: NEMA defines the mounting dimensions and enclosure types for motors to ensure interchangeability in various mounting environments. Common enclosure types include enclosed (TEFC) and open (ODP).
• Efficiency rating: NEMA has clearly classified the energy efficiency rating of motors. Common standards include NEMA Premium (high-efficiency motor) and NEMA Standard (standard motor) to support the goals of energy conservation, emission reduction and lower operating costs.
• Performance parameters: such as power, speed, frequency, torque and starting characteristics. NEMA standards specify the range and measurement methods for these parameters.
• Environment and operating conditions: NEMA standards also have requirements for the environmental adaptability of motors, including temperature, humidity, dust, and protection level.
Please contact our sales team for details regarding model naming.
