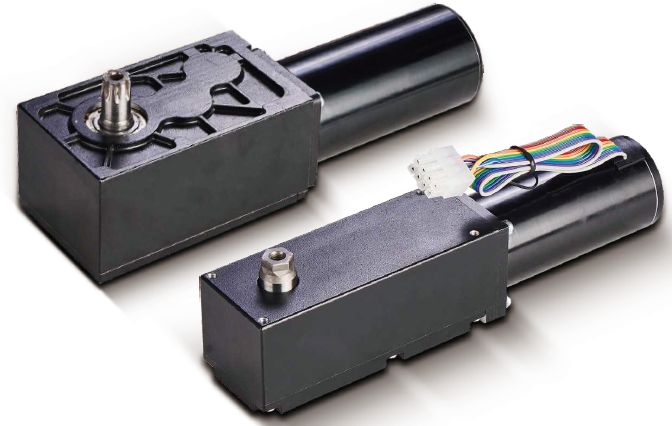

ST121 And 178 Ratio Automatic Swing Door Motor

  • ST121 And 178 Ratio Automatic Swing Door Motor

  • start-motors

  • 0161

Availability:
Quantity:
Inquire Add to Basket

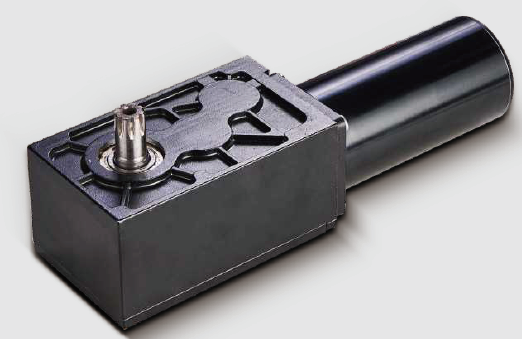

1、Model：BF121
Product name 121 Automatic Swing door Motor Rated Current 4.2A
Model BF121 Rated Speed 3100RPM
Color Black/customize On-load speed 25RPM
Number of stator slots 12 Gear Ratio 1:121
Magnetic Poles 4 pairs Rated torque without Gearbox 0.65Nm
Output shaft Rolling thread/ milling groove Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket HXH5557-8R

Rated Power

100W

 IP Level

IP54


Output Torque 90Nm

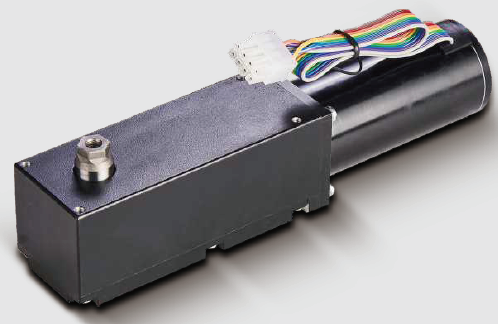

2、Model：BF178
Product name 178 Automatic Swing door Motor Rated Current 1A
Model BF178 Rated Speed 2600RPM
Color Black On-load speed 15RPM
Number of stator slots 6 Gear Ratio 1:178
Magnetic Poles 4 pairs Rated torque without Gearbox 0.15N.m
Output shaft Hexagon/ milling groove Stall Torque without Gearbox  0.2N.m
Rated Voltage DC24V Motor Socket HXH5557-8R

Rated Power

25W

 IP Level

IP54


Output Torque 20Nm

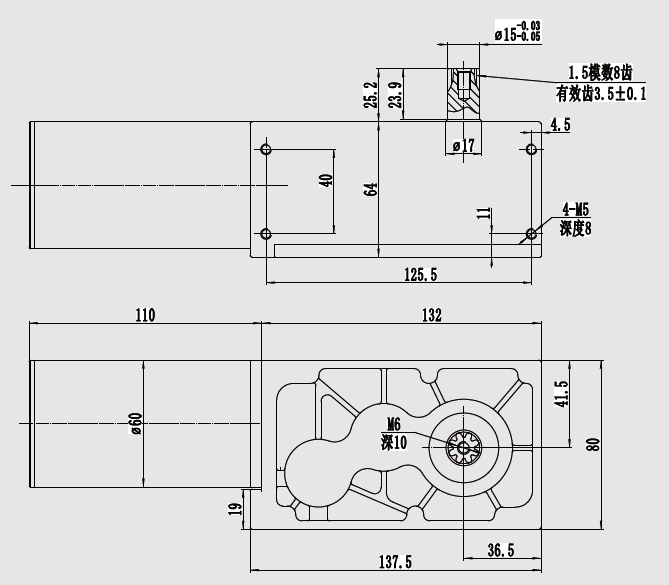

36761ed1-b23e-4e53-b3b1-b038a9daccd4


11c335c9-a9f8-4727-8fbe-86d109485086
