D56/F143/F145
start-motors
0138
| Quantity: | |
|---|---|
Features:
HP: 1/3HP-3HP
Pole: 2P, 4P
Capacitor Run, Capacitor Start
Frame: 56, 140T
Rolled steel, C-Face Kit
NEMA design: N
Service factor: 1.15
Insulation Class: F(UL approved)
Enclosure: ODP, TEFC
IP Class: IP23, IP44
Accept Auto Thermal Protector
Advantages of our NEMA motors：
• Versatile and widely rated for many different applications
• Better short-circuit resistant
• Offers larger sizes suitable for heavy-duty applications
• Better suited for the North American market
• Open design for easier maintenance and inspection

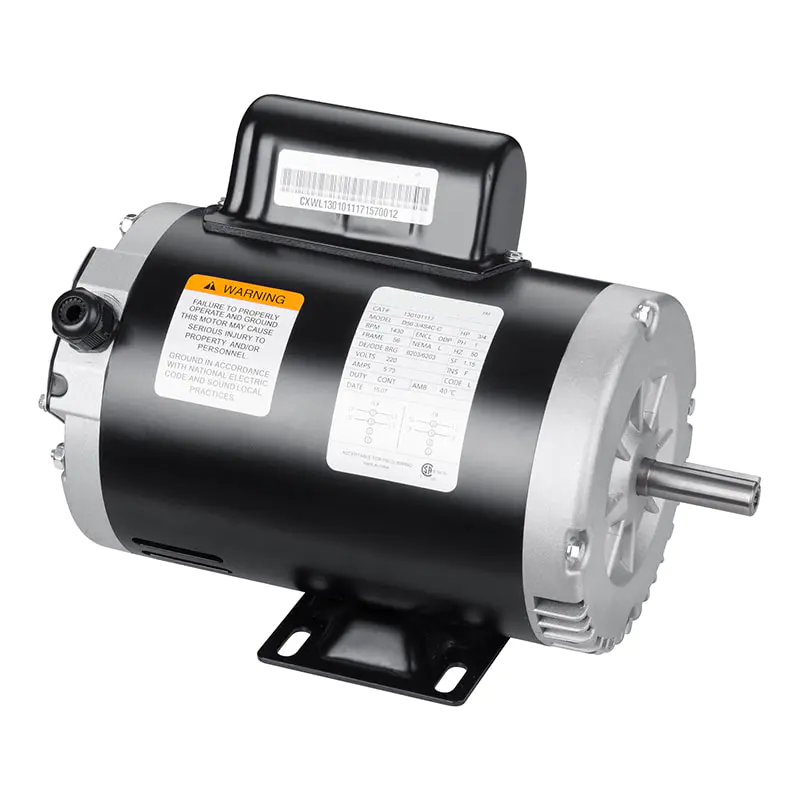

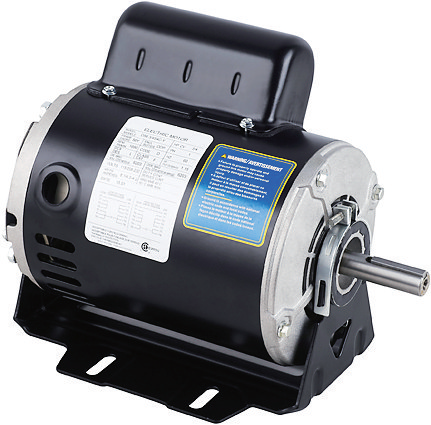

1、Drippoof Single-Phase Capacitor Run Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56 | D56 1/3S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 47/2.2-2.5 | 17 |
1800 | 56 | D56 1/3S4C-V | 115/208-230 | 60 | ODP | 1.15 | 4.3/2.1-2.3 | 17 | |
1/2 | 3600 | 56 | D56 1/2S2C-V | 115/208-230 | 60 | ODP | 1.15 | 5.9/2.9-3.1 | 18 |
1800 | 56 | D56 1/2S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 5.8/2.8-3.0 | 20 | |
3/4 | 3600 | 56 | D56 3/4S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 8.1/4.2-4.1 | 22 |
1800 | 56 | D56 3/4S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 8.1/4.0-4.2 | 25 | |
1 | 3600 | 56 | D56 1S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 12/6.4-5.8 | 24 |
3600 | 143T | D143T1S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 11.5/6.4-5.8 | 25 | |
3600 | 143T | D143T1S2A-Y | 208-230/460 | 60 | ODP | 1.15 | 5.8-5.4/2.6 | 24 | |
1800 | 56 | D56 1S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 11.5/6.0-5.7 | 36 | |
1800 | 143T | D143T1S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 11.5/6.0-5.7 | 37 | |
1800 | 143T | D143T1S4A-Y | 208-230/460 | 60 | ODP | 1.15 | 4.8-5.3/27 | 36 | |
1.5 | 3600 | 56 | D56 1.5S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 14.5/7.8-7.2 | 34 |
3600 | 145T | D145T1.5S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 14.5/8.0-7.6 | 32 | |
3600 | 145T | D145T1.5S2A-Y | 208-230/460 | 60 | ODP | 1.15 | 7.5-7.0/3.4 | 31 | |
1800 | 56 | D56 1.5S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 15.5/8.1-7.6 | 42 | |
1800 | 145T | D145T1.5S4C-Y | 115/208-230 | 60 | ODP | 1.15 | 15.5/8.1-7.6 | 43 | |
1800 | 145T | D145T1.5S4A-Y | 208-230/460 | 60 | ODP | 1.15 | 7.1-67/3.4 | 42 | |
2 | 3600 | 56 | D56 2S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 18/10.1-9.2 | 41 |
3600 | 145T | D145T2S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 18/10.2-9.4 | 42 | |
3600 | 145T | D145T2S2A-Y | 208-230/460 | 60 | ODP | 1.15 | 9.8-9.1/4.5 | 41 | |
1800 | 56 | D56 2S4C-V | 115/208-230 | 60 | ODP | 1.15 | 19.0/10-9.3 | 42 | |
1800 | 145T | D145T2S4C-V | 115/208-230 | 60 | ODP | 1.15 | 19.0/10-9.3 | 43 | |
1800 | 145T | D145T2S4A-Y | 208-230/460 | 60 | ODP | 1.15 | 9.8-9.1/4.5 | 42 | |
3 | 3600 | 56 | D56 3S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 25/14.2-13 | 49 |
3600 | 145T | D145T 3S2C-Y | 115/208-230 | 60 | ODP | 1.15 | 25/14.2-13 | 50 | |
3600 | 145T | D145T3S2A-Y | 208-230/460 | 60 | ODP | 1.15 | 14-12.5/6.5 | 49 |

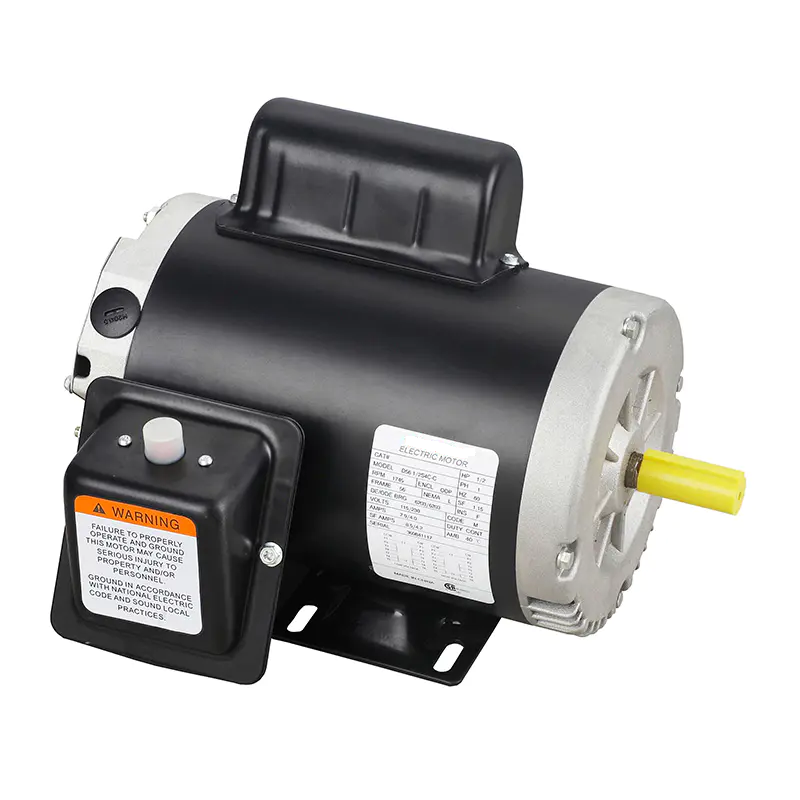

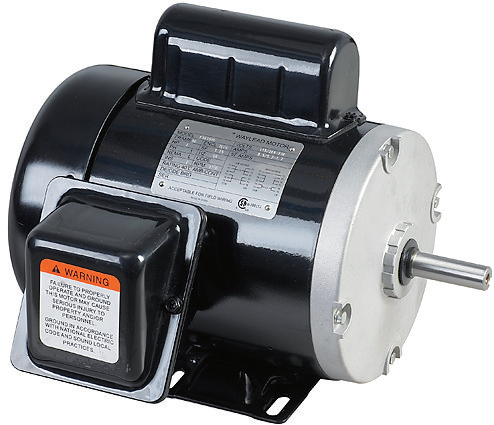

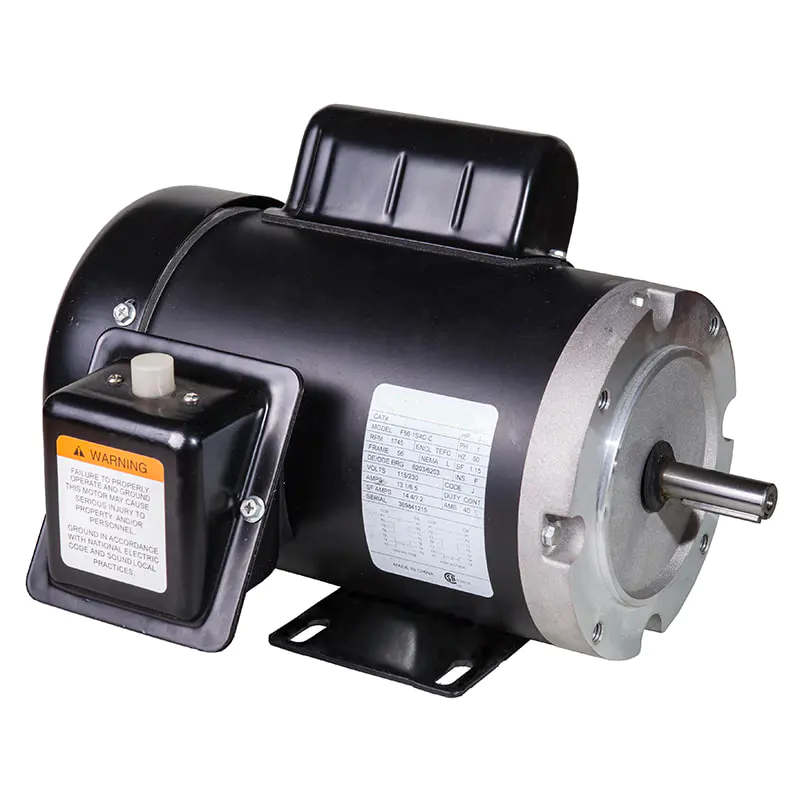

2、Totally Enclosed Single-Phase Capacitor Start Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56 | F561/3S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 6.0/2.8-3.0 | 26 |
1800 | 56 | F56 1/3S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 5.7/2.7-2.8 | 27 | |
1/2 | 3600 | 56 | F561/2S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 7.7/3.8-3.9 | 26 |
1800 | 56 | F56 1/2S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 7.9/3.8-4.0 | 28 | |
3/4 | 3600 | 56 | F56 3/4S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 9.8/4.94.8 | 30 |
1800 | 56 | F563/4S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 10.3/5.3-5.2 | 32 | |
1 | 3600 | 56 | F561S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 11.8/6.1-5.9 | 31 |
3600 | 143T | F143T1S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 11.8/6.1-5.9 | 32 | |
3600 | 143T | F143T1S2A-C | 208-230/460 | 60 | TEFC | 1.15 | 6.2-5.6/2.8 | 31 | |
1800 | 56 | F56 1S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 13/6.6-6 | 44 | |
1800 | 143T | F143T1S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 13/6.6-6.5 | 45 | |
1800 | 143T | F143T1S4A-C | 208-230/460 | 60 | TEFC | 1.15 | 6.7-6.0/3.1 | 44 | |
1.5 | 3600 | 56 | F56 1.5S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 15.3/8.4-7.7 | 33 |
3600 | 145T | F145T1.5S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 15.3/8.4-7.7 | 34 | |
3600 | 145T | F145T1.5S2A-C | 208-230/460 | 60 | TEFC | 1.15 | 8.0-7.2/3.6 | 33 | |
1800 | 56 | F56 1.5S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 17.8/9.3-8.9 | 49 | |
1800 | 145T | F145T1.5S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 15.3/8.4-7.7 | 50 | |
1800 | 145T | F145T1.5S4A-C | 208-230/460 | 60 | TEFC | 1.15 | 8.7-7.9/4.0 | 49 | |
2 | 3600 | 56 | F56 2S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 18.6/11-9.9 | 48 |
3600 | 145T | F145T2S2C-C | 115/208-230 | 60 | TEFC | 1.15 | 18.6/11-9.9 | 49 | |
3600 | 145T | F145T2S2A-C | 208-230/460 | 60 | TEFC | 1.15 | 10.5-0.3/4.6 | 48 | |
1800 | 56 | F56 2S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 21.7/11.5-10.8 | 51 | |
1800 | 145T | F145T2S4C-C | 115/208-230 | 60 | TEFC | 1.15 | 21/11.3-10.8 | 52 | |
1800 | 145T | F145T2S4A-C | 208-230/460 | 60 | TEFC | 1.15 | 11.4-10.3/5.2 | 51 |
Introducing the Drippoof Single-Phase Capacitor Run Motor and the Totally Enclosed Single-Phase Capacitor NEMA Motor, both of which are versatile and reliable options for various industrial applications.
The Drippoof Single-Phase Capacitor Run Motor is designed for general industrial use, making it suitable for applications such as fans, pumps, and compressors. With its durable construction and efficient performance, this motor is a dependable choice for a wide range of industrial settings.
On the other hand, the Totally Enclosed Single-Phase Capacitor NEMA Motor is a specialized motor that is ideal for specific environments or applications, such as Explosion Proof Motors. With its robust design and advanced features, this motor is built to withstand challenging conditions and deliver consistent performance.
Both motors are also compatible with variable frequency drive systems, making them suitable for modern industrial automation requirements. With the ability to adjust speed as needed, these motors offer flexibility and efficiency in a variety of industrial settings.
Choose the Drippoof Single-Phase Capacitor Run Motor or the Totally Enclosed Single-Phase Capacitor NEMA Motor for reliable performance and versatility in your industrial applications. Trust in these motors to meet your needs and exceed your expectations.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
