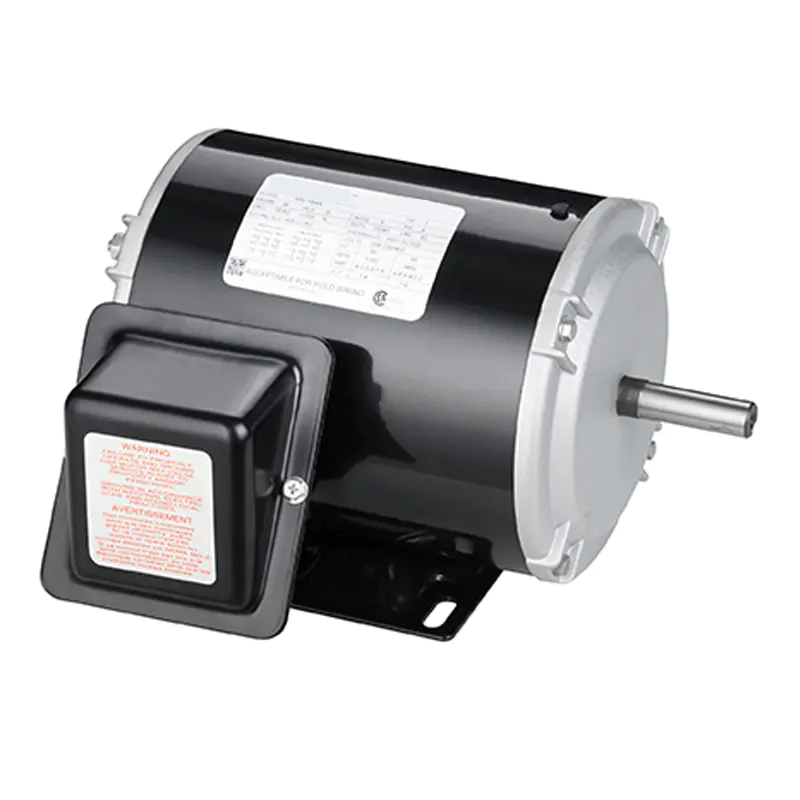

NEMA Farm Duty Motor And TEAO 48、56 Fan Motor

Model:
56-215T
Brand:
start-motors
Code:
0147

Availability:

Quantity:



Inquire Add to Basket

Product Description

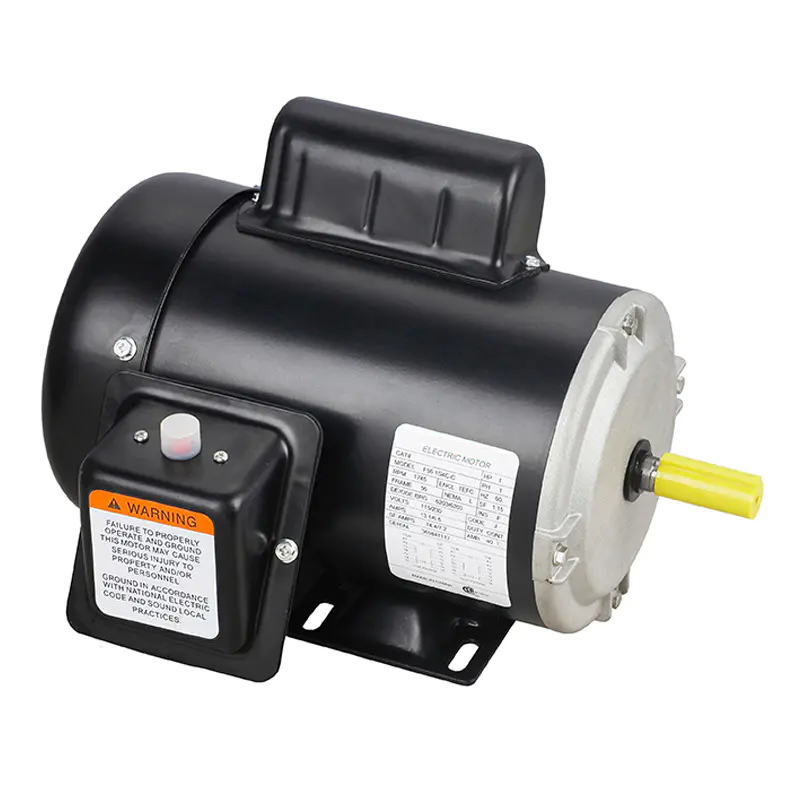

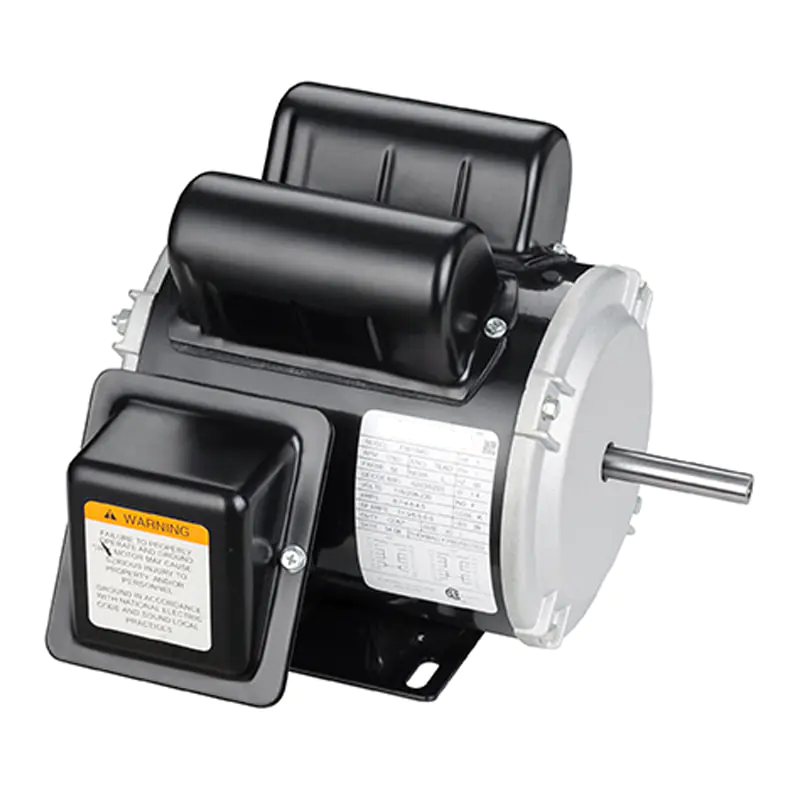

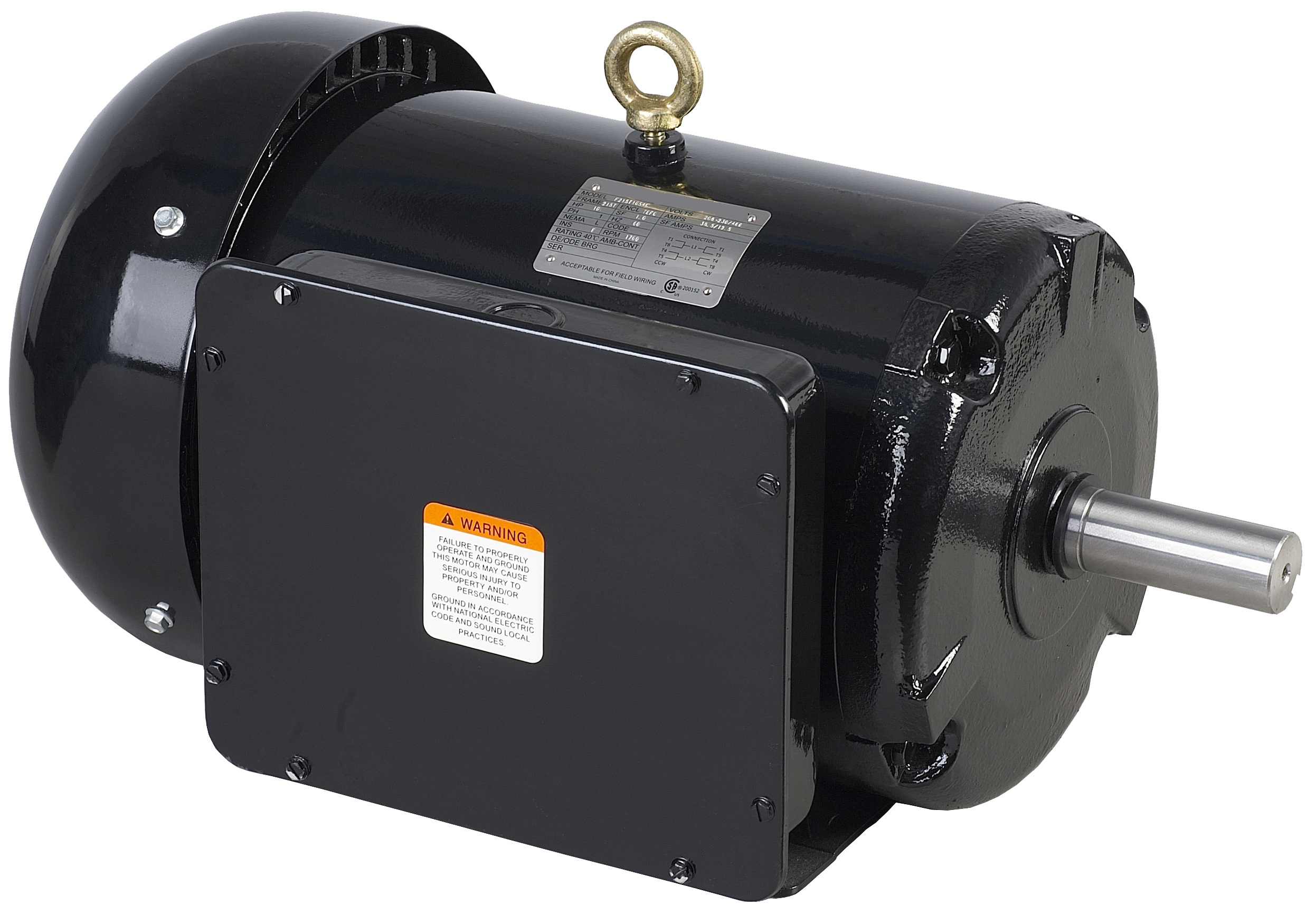

1、NEMA Farm Duty Motor

Features:

HP: 1/3HP-10HP

Pole: 4P

Frame: 56-215T

Enclosure: TEFC

IP Class: IP44

Service factor: 1.0, 1.15

Accept Manual Thermal Protector

Capacitor Start and Capacitor Run

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	OVER LOAD	S.F	Full Load AMPS	WGT. LBS.
1/3	1800	56	F561/3S4C	115/208-230	60	TEFC	MANUAL	1.15	1.43	12
1/2	1800	56	F561/2S4C	115/208-230	60	TEFC	MANUAL	1.15	2.56	20
3/4	1800	56	F563/4S4C	115/208-230	60	TEFC	MANUAL	1.15	3.9	38
1	1800	56	F561S4C	115/208-230	60	TEFC	MANUAL	1.15	8.7/5.0-4.5	39.5
1	1800	145T	F143T1S4C	115/208-230	60	TEFC	MANUAL	1.15	8.7/5.04.5	41
1.5	1800	56H	F56H 1.5S4C	115/208-230	60	TEFC	MANUAL	1.15	13.2/7.4-6.7	55
1.5	1800	145T	F145T1.5S4C	115/208-230	60	TEFC	MANUAL	1.15	13.2/7.3-6.7	57
2	1800	56H	F56H 2S4C	115/208-230	60	TEFC	MANUAL	1.15	17.5/9.6-8.7	65
	1800	145T	F145T2S4C	115/208-230	60	TEFC	MANUAL	1.15	17.5/9.7-8.7	67
	1800	182T	F182T2S4A	230/460	60	TEFC	MANUAL	1.15	11.4/5.7	83
3	1800	184T	F182T3S4A	230/460	60	TEFC	MANUAL	1.15	12/6.2	92
5	1800	184T	F182T5S4A	230/460	60	TEFC	MANUAL	1.15	20/10	110
7.5	1800	215T	F215T7.5S4A	230/460	60	TEFC	MANUAL	1.15	31/16	153
10	1800	215T	F215T10S4A	230/460	60	TEFC	MANUAL	1.0	40/19.5	176

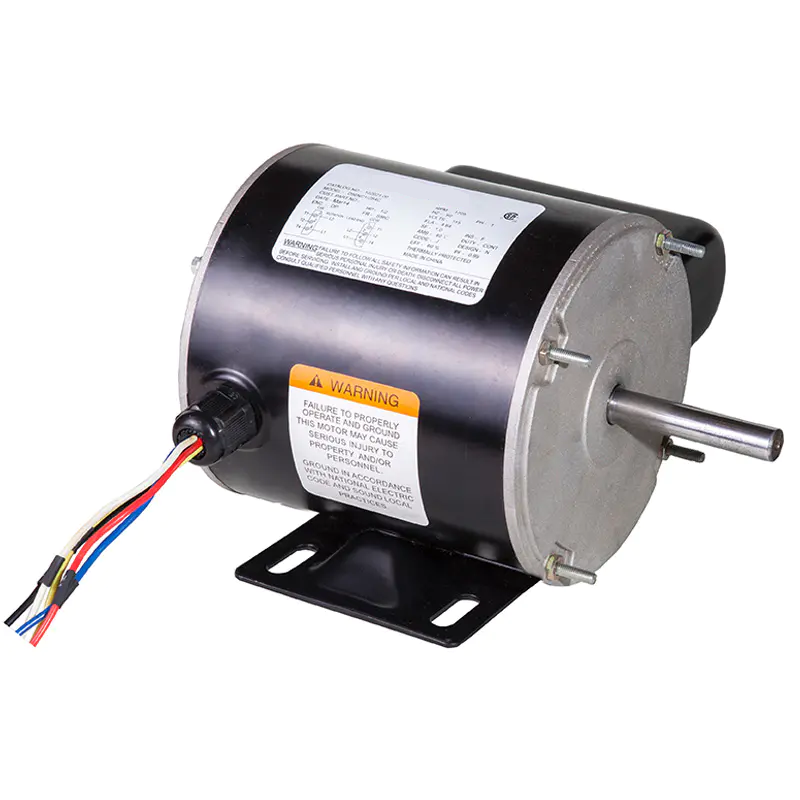

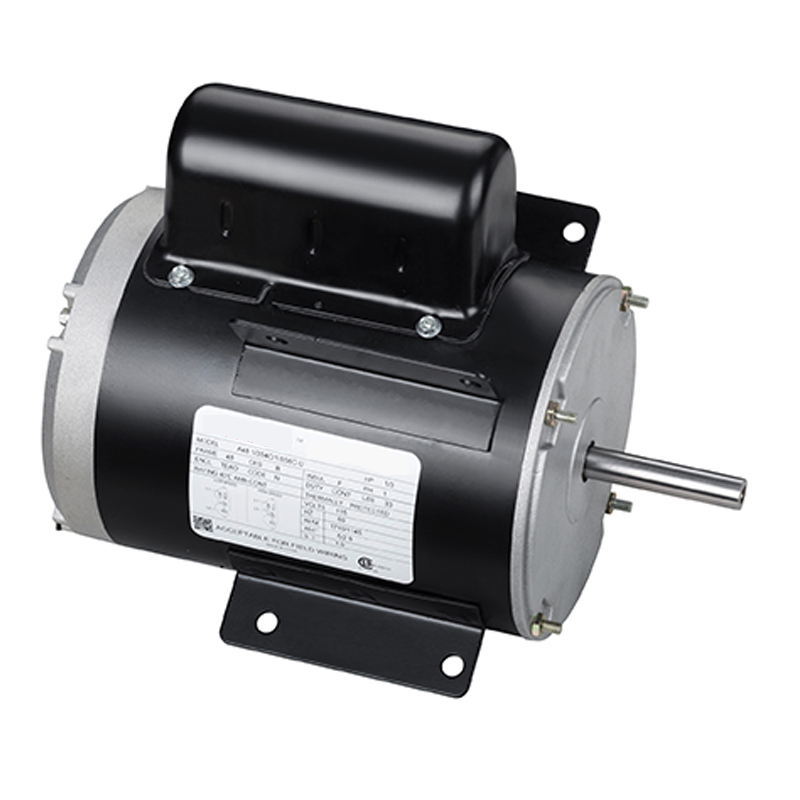

2、TEAO 48、56 Fan Motor

Features:

HP: 1/10HP-1.5HP

Pole: 4P, 6P, 8P

Frame: 48, 56

Rolled steel

NEMA design: N

NEMA service factor: 1.0, 1.4

Insulation Class: F( UL approved)

Enclosure: TEAO

IP Class: IP44, IP55

Accept Auto Thermal Protector

HP	RPM	NEMA FRAME	PH	Model	Volts	HZ	ENCL.	OVER LOAD	S.F	Full Load AMPS	WGT. LBS.
1/10	1625	48	1	A48 1/10S4C	115/230	60	TEAO	AUTO	1.0	1.3/0.65	12
1/8	1625	48	1	A48 1/8S4C	115/230	60	TEAO	AUTO	1.0	1.64/0.84	12
	1080	48	1	A48 1/8S6C	115/230	60	TEAO	AUTO	1.0	1.6/0.8	13
	810	48	1	A48 1/8S8C	115/230	60	TEAO	AUTO	1.0	2.1/1.05	14
1/6	1625	48	1	A48 1/6S4C	115/230	60	TEAO	AUTO	1.0	2.17/1.09	12
	1080	48	1	A48 1/6S6C	115/230	60	TEAO	AUTO	1.0	2.12/1.06	13
	810	48	1	A48 1/6S8C	115/230	60	TEAO	AUTO	1.0	2.75/1.38	14
1/5	1625	48	1	A48 1/5S4C	115/230	60	TEAO	AUTO	1.0	2.2/1.1	12
	1080	48	1	A48 1/5S6C	115/230	60	TEAO	AUTO	1.0	2.6/1.3	13
	810	48	1	A48 1/5S8C	115/230	60	TEAO	AUTO	1.0	2.8/1.4	16
1/4	1625	48	1	A48 1/4S4C	115/230	60	TEAO	AUTO	1.0	2.7/1.4	12
	1080	48	1	A48 1/4S6C	115/230	60	TEAO	AUTO	1.0	3.0/1.5	14
	810	48	1	A48 1/4S8C	115/230	60	TEAO	AUTO	1.0	3.6/1.8	16
1/3	1625	48	1	A48 1/3S4C	115/230	60	TEAO	AUTO	1.0	4.1/2.06	17
	1080	48	1	A48 1/3S6C	115/230	60	TEAO	AUTO	1.0	3.6/1.8	13
	810	48	1	A48 1/3S8C	115/230	60	TEAO	AUTO	1.0	4.2/2.1	18
1/2	1625	48	1	A48 1/2S4C	115/230	60	TEAO	AUTO	1.0	4.9/2.45	20
	1080	48	1	A48 1/2S6C	115/230	60	TEAO	AUTO	1.0	5.1/2.55	21
	810	48	1	A48 1/2S8C	115/230	60	TEAO	AUTO	1.0	7.1/3.7	22
3/4	1625	48	1	A48 3/4S4C	115/230	60	TEAO	AUTO	1.0	67/3.5	21
	1080	48	1	A48 3/4S6C	115/230	60	TEAO	AUTO	1.0	7.8/3.9	23
	810	48	1	A48 3/4S8C	115/230	60	TEAO	AUTO	1.0	8.7/4.4	26
	810	56	1	A563/4S8C	115/208-230	60	TEAO	AUTO	1.0	8.1/4.8<3	33
1	1625	48	1	A48 1S4C	115/230	60	TEAO	AUTO	1.0	9.5/4.95	22
	1080	48	1	A48 1S6C	115/230	60	TEAO	AUTO	1.0	11.0/5.5	27
	810	48	1	A48 1S8C	115/230	60	TEAO	AUTO	1.0	11.5/6.04	30
	810	56	1	A561S8C	115/208-230	60	TEAO	AUTO	1.0	5.04/2.8-2.5	35
	1750	56	1	A561S4C	115/208-230	60	TEAO	AUTO	1.4	8.7/4.8<5	38
	1750	56	3	A561M4A	208-230/460	60	TEAO	AUTO	1.4	4.0-3.6/1.8	26
	810	56	3	A561M8A	208-230/460	60	TEAO	AUTO	1.0	5.6-6.6/3.4	35
1 .5	1750	56	1	A561.5S4C	115/208-230	60	TEAO	AUTO	1.4	13.4/7.3-6.8	42
1 .5	1750	56	3	A561.5M4A	208-230/460	60	TEAO	AUTO	1.4	6.5-5.9/2.95	37
