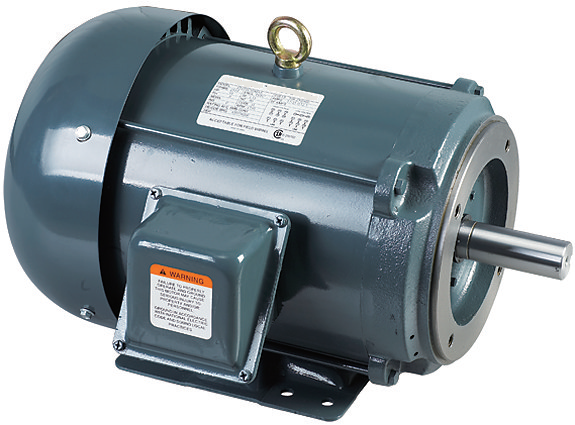

NEMA Totally Enclosed Premium Efficiency Motor

Model:
Totally Enclosed Premium Efficiency Motor
Brand:
start-motors
Code:
0151

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

HP: 1HP-10HP

Pole: 2P, 4P, 6P

Frame: 56-215T

Rolled steel

NEMA design: B

Accept C-face kit

Service factor: 1.15

Insulation Class: F, H (UL approved)

Enclosure: TEFC

IP Class: IP44

Our NEMA Motor Application Scenarios and Characteristics

 High Performance and Reliability: Meets the requirements of high power density, high efficiency, and long lifespan, especially in heavy-duty applications with continuous operation.

 Harsh Environment Adaptability: Provides dustproof, waterproof, and corrosion-resistant protection through NEMA enclosure ratings (e.g., NEMA 4), suitable for humid, dusty, or water-washable areas.

 Energy Saving and Environmental Protection: Meets the energy efficiency requirements of modern industry, reducing operating costs.

 Standardization and Interchangeability: NEMA standards ensure uniformity of motor specifications, facilitating selection, installation, and maintenance, and enabling products to enter the international market.

1、SF56-215T 208-230/460V Three Phase Premium Efficiency Motor Data

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	% EFF.	WGT. LBS.
1	3600	56	SF561M2A	208-230/460	60	TEFC	1.15	4.0-3.6/1.8	77	34
	3600	143T	SF143T1M2A	208-230/460	60	TEFC	1.15	4.0/3.6/1.8	77	35
	1800	56	SF561M4A	208-230/460	60	TEFC	1.15	3.3-3.0/1.5	85.5	44
	1800	143T	SF143T1M4A	208-230/460	60	TEFC	1.15	3.3-3.0/1.5	85.5	45
	1800	56	SF561M6A	208-230/460	60	TEFC	1.15	3.6-3.4/1.7	82.5	44
	1200	145T	SF145T1M6A	208-230/460	60	TEFC	1.15	3.6-3.4/1.7	82.5	45
1.5	3600	56	SF561.5M2A	208-230/460	60	TEFC	1.15	4.3-4.0/2.0	84	41
	3600	143T	SF143T1.5M2A	208-230/460	60	TEFC	1.15	4.3-4.0/2.0	83.6	42
	1800	56	SF561.5M4A	208-230/460	60	TEFC	1.15	4.8-4.4/2.2	86.5	49
	1800	145T	SF145T1.5M4A	208-230/460	60	TEFC	1.15	4.8-4.4/2.2	80.5	52
	1200	182T	SF182T1.5M6A	208-230/460	60	TEFC	1.15	4.8-4.4/2.2	84.5	79
2	3600	56	SF562M2A	208-230/460	60	TEFC	1.15	5.4-5.0/2.5	85.5	45
	3600	145T	SF145T2M2A	208-230/460	60	TEFC	1.15	5.4-5.0/2.5	85.4	46
	1800	56	SF562M4A	208-230/460	60	TEFC	1.15	6.5-6.0/3.0	86.5	55
	1800	145T	SF145T2M4A	208-230/460	60	TEFC	1.15	6.5-6.0/3.0	86.9	56
	1200	184T	SF184T2M6A	208-230/460	60	TEFC	1.15	6.8-6.0/3.0	88.5	87
3	3600	182T	SF182T3M2A	208-230/460	60	TEFC	1.15	8.2-7.6/3.8	85.9	78
	1800	182T	SF182T3M4A	208-230/460	60	TEFC	1.15	8.6-8.0/4.0	88	93
	1200	213T	SF213T3M6A	208-230/460	60	TEFC	1.15	9.04.4/4.2	89.5	123
5	3600	184T	SF184T5M2A	208-230/460	60	TEFC	1.15	13.0-11.8/5.9	89.2	84
	1800	184T	SF184T5M4A	208-230/460	60	TEFC	1.15	13.5-12.4/6.2	88.3	101
	1200	215T	SF215T5M6A	208-230/460	60	TEFC	1.15	15.0-13.6/6.8	89.5	130
7.5	3600	213T	SF213T7.5M2A	208-230/460	60	TEFC	1.15	20.0-18.4/9.2	88.8	91
7.5	1800	213T	SF213T7.5M4A	208-230/460	60	TEFC	1.15	21.0-19.2/9.6	89.6	146
10	3600	215T	SF215T10M2A	208-230/460	60	TEFC	1.15	26.0-24.0/12.0	90.2	135
10	1800	215T	SF215T10M4A	208-230/460	60	TEFC	1.15	27.5-25.2/12.6	89.6	165

2、SF56-215T 575V Three Phase Premium Efficiency Motor Data

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	% EFF.	WGT. LBS.
1	3600	56	SF561M2D	575	60	TEFC	1.15	1.45	77	34
	3600	143T	SF143T1M2D	575	60	TEFC	1.15	1.45	77	35
	1800	56	SF561M4D	575	60	TEFC	1.15	1.3	85.5	44
	1800	143T	SF143T1M4D	575	60	TEFC	1.15	1.3	85.5	45
	1800	56	SF561M6D	575	60	TEFC	1.15	1.36	82.5	44
	1200	145T	SF145T1M6D	575	60	TEFC	1.15	1.36	82.5	45
1.5	3600	56	SF561.5M2D	575	60	TEFC	1.15	1.6	84	41
	3600	143T	SF143T1.5M2D	575	60	TEFC	1.15	1.6	84	42
	1800	56	SF561.5M4D	575	60	TEFC	1.15	1.8	86.5	49
	1800	145T	SF145T1.5M4D	575	60	TEFC	1.15	1.8	81.8	52
	1200	182T	SF182T1.5M6D	575	60	TEFC	1.15	1.7	87.5	79
2	3600	56	SF562M2D	575	60	TEFC	1.15	2.1	85.5	45
	3600	145T	SF145T2M2D	575	60	TEFC	1.15	2.1	85.5	46
	1800	56	SF562M4D	575	60	TEFC	1.15	2.4	86.5	55
	1800	145T	SF145T2M4D	575	60	TEFC	1.15	2.4	84.2	56
	1200	184T	SF184T2M6D	575	60	TEFC	1.15	2.4	88.5	87
3	3600	182T	SF182T3M2D	575	60	TEFC	1.15	3.0	86.5	78
	1800	182T	SF182T3M4D	575	60	TEFC	1.15	3.4	89.5	93
	1200	213T	SF213T3M6D	575	60	TEFC	1.15	3.4	89.5	123
5	3600	184T	SF184T5M2D	575	60	TEFC	1.15	5.0	88.5	84
	1800	184T	SF184T5M4D	575	60	TEFC	1.15	5.2	89.5	101
	1200	215T	SF215T5M6D	575	60	TEFC	1.15	5.5	89.5	130
7.5	3600	213T	SF213T7.5M2D	575	60	TEFC	1.15	7.6	89.5	91
7.5	1800	213T	SF213T7.5M4D	575	60	TEFC	1.15	8.0	91.7	146
10	3600	215T	SF215T10M2D	575	60	TEFC	1.15	9.6	90.2	135
10	1800	215T	SF215T10M4D	575	60	TEFC	1.15	14.2	91.7	165

NEMA Motors Typical Application Examples

In petrochemicals, driving large compressors and pumps.

In water treatment plants, driving water pumps and aerators.

In mines, driving conveyor belts and ventilation systems.

In the food and beverage industry, driving mixers and filling lines.

When selecting a NEMA motor, the key considerations are electrical and mechanical performance. the following requirements:

Efficiency Test: Tests the motor's efficiency under different load conditions to ensure it meets the minimum energy efficiency rating required by NEMA.

Insulation Resistance Test: Evaluates the motor's insulation performance to ensure safe operation in high-voltage and humid environments.

Starting Test: Tests the motor's starting current and starting torque to ensure it can start smoothly under load conditions.
Durability Testing: Evaluates the motor's durability during long-term operation, including continuous operation and frequent starts.

Vibration and Noise Testing: Tests the vibration and noise levels of the motor during operation to ensure compliance with NEMA's mechanical performance requirements.

Environmental Adaptability Testing: Tests the motor in extreme environments such as high and low temperatures, humidity, and dust to ensure its protection level and stable performance.

Please contact our sales team for details regarding model naming.
