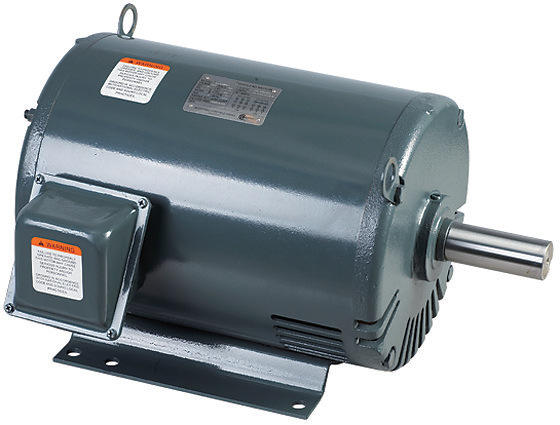

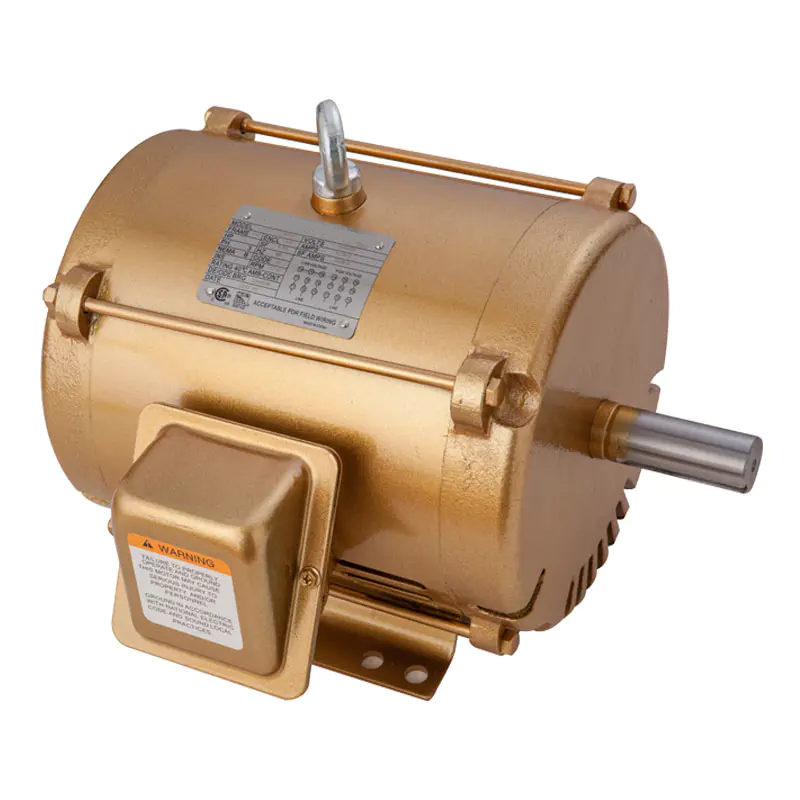

three phase High efficiency motor
start-motors
0149
| Quantity: | |
|---|---|
The NEMA motor standard defines the following key specifications:
Frame and Mounting Dimensions: Specifies the motor's mounting and overall physical dimensions. Common frame sizes include the 56 frame for small industrial and commercial applications; and the 143T/145T frames suitable for pumps, conveyors, and fans. This ensures consistent motor dimensions across different manufacturers, facilitating equipment integration and replacement.
Power and Efficiency Ratings: Clearly defines the motor's power and efficiency ratings, such as NEMA premium efficiency motors, which reduce energy costs over the motor's lifespan, and NEMA energy-efficient motors, which also offer better efficiency than standard motors.
Motor Frame Characteristics: Defines the physical characteristics of the motor frame, ensuring the reliability of the motor structure.
Installation Options: Determine the mounting method, such as foot mounting or flange mounting, and specify the shaft diameter and length to enhance motor compatibility.
Environmental Protection Rating: Different protection ratings are available; for example, open drip-proof (ODP) motors are suitable for clean indoor environments, while totally enclosed fan-cooled (TEFC) motors are used in harsh environments.
Testing and Performance Standards: Establish testing procedures and performance standards to ensure that motor performance meets specifications.
NEMA Motor Features:
HP: 1HP-20HP
Pole: 2P, 4P, 6P
Frame: 143T-256T
Rolled steel
NEMA design B
Accept C-face Kit
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: ODP/TEFC
IP Class: IP23/IP44

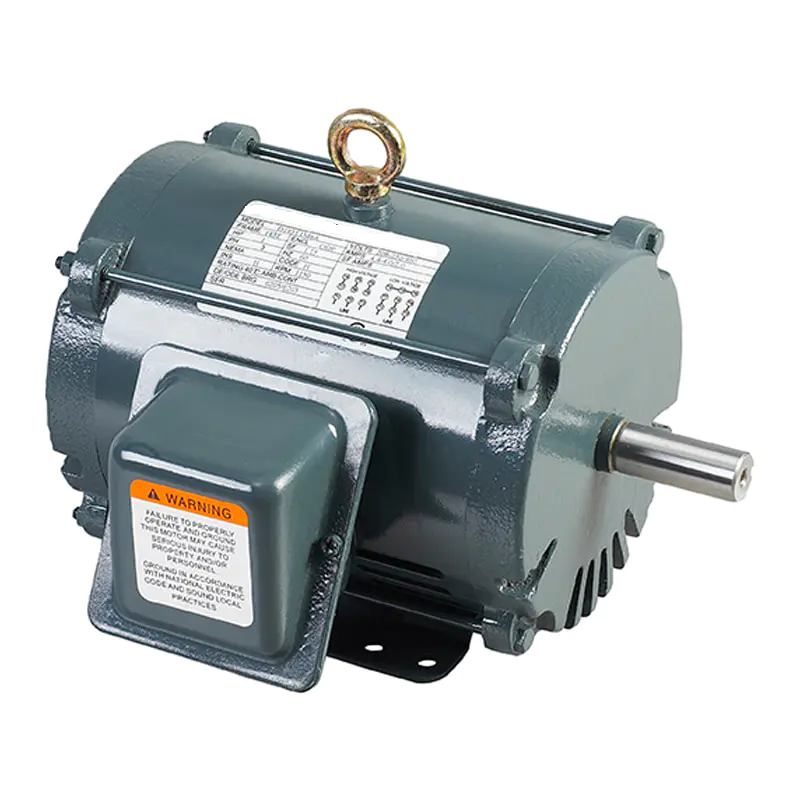

1、Three-Phase Dripproof High-Efficiency Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1 | 3600 | 143T | ED143T1M2A | 2208-230/460 | 60 | ODP | 1.15 | 3.7-3.4/1.7 | 31.5 |
3600 | 143T | ED143T1M2D | 575 | 60 | ODP | 1.15 | 1.36 | 31.5 | |
1800 | 143T | ED143T1M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 40.5 | |
1800 | 143T | ED143T1M4D | 575 | 60 | ODP | 1.15 | 1.28 | 40.5 | |
1200 | 145T | ED145T1M6A | 208-230/460 | 60 | ODP | 1.15 | 4.2-3.8/1.9 | 40 | |
1200 | 145T | ED145T1M6D | 575 | 60 | ODP | 1.15 | 1.52 | 40 | |
1.5 | 3600 | 143T | ED143T1.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.64.2/2.1 | 37 |
3600 | 143T | ED143T1.5M2D | 575 | 60 | ODP | 1.15 | 1.68 | 37 | |
1800 | 145T | EO145T1.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5K6/2.3 | 44 | |
1800 | 145T | ED145T1.5M4O | 575 | 60 | ODP | 1.15 | 1.84 | 44 | |
1200 | 182T | ED182T1.5M6A | 208-230/460 | 60 | ODP | 1.15 | 5.6-6.0/2.5 | 66.5 | |
1200 | 182T | ED182T1.5M6O | 575 | 60 | ODP | 1.15 | 2.0 | 66.5 | |
2 | 3600 | 145T | ED145T2M2A | 208-230/460 | 60 | ODP | 1.15 | 5.9-6.472.7 | 37.5 |
3600 | 145T | ED145T2M2D | 575 | 60 | ODP | 1.15 | 2.16 | 37.5 | |
1800 | 145T | ED145T2M4A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2Z3.1 | 47.5 | |
1800 | 145T | ED145T2M4D | 575 | 60 | ODP | 1.15 | 2.48 | 47.5 | |
1200 | 184T | ED184T2M6A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2/3.1 | 73 | |
1200 | 184T | ED184T2M6D | 575 | 60 | ODP | 1.15 | 2.5 | 73 | |
3 | 3600 | 145T | ED145T3M2A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/40 | 41 |
3600 | 145T | ED145T3M2D | 575 | 60 | ODP | 1.15 | 3.2 | 41 | |
1800 | 182T | ED182T3M4A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 78 | |
1800 | 182T | ED182T3M4G | 220/380 | 60 | ODP | 1.15 | 8.5M.5 | 78 | |
1800 | 182T | ED182T3M4D | 575 | 60 | ODP | 1.15 | 3.2 | 78 | |
1200 | 213T | ED213T3M6A | 208-230/460 | 60 | ODP | 1.15 | 9.5-8.6Z4.3 | 103 | |
1200 | 213T | ED213T3M6D | 575 | 60 | ODP | 1.15 | 3.5 | 103 | |
5 | 3600 | 182T | ED182T5M2A | 208-230/460 | 60 | ODP | 1.15 | 14.1-12.8/6.4 | 73 |
3600 | 182T | ED182T5M2D | 575 | 60 | ODP | 1.15 | 5.12 | 73 | |
1800 | 184T | ED184T5M4A | 208-230/460 | 60 | ODP | 1.15 | 14.3-13.0/6.5 | 85 | |
1800 | 184T | ED184T5M4G | 220/380 | 60 | ODP | 1.15 | 13.5/7.3 | 85 | |
1800 | 184T | ED184T5M4D | 575 | 60 | ODP | 1.15 | 5.2 | 85 | |
1200 | 215T | ED215T5M6A | 208-230/460 | 60 | ODP | 1.15 | 15.6-14.2/7.1 | 112 | |
1200 | 215T | ED215T5M6D | 575 | 60 | ODP | 1.15 | 5.7 | 112 | |
7.5 | 3600 | 184T | ED184T7.5M2A | 208-230/460 | 60 | ODP | 1.15 | 19.6-17.8/8.9 | 79.5 |
3600 | 184T | ED184T7.5M2D | 575 | 60 | ODP | 1.15 | 7.12 | 79.5 | |
1800 | 213T | ED213T7.5M4A | 208-230/460 | 60 | ODP | 1.15 | 20.9-19.0/9.5 | 120 | |
1800 | 213T | ED213T7.5M4G | 220/380 | 60 | ODP | 1.15 | 19.8/10.6 | 120 | |
1800 | 213T | ED213T7.5M4D | 575 | 60 | ODP | 1.15 | 7.6 | 120 | |
10 | 3600 | 213T | ED213T10M2A | 208-230/460 | 60 | ODP | 1.15 | 27.7-25.2/12.6 | 114 |
3600 | 213T | ED213T10M2D | 575 | 60 | ODP | 1.15 | 10.0 | 114 | |
1800 | 215T | ED215T10M4A | 208-230/460 | 60 | ODP | 1.15 | 27.5-25.0/12.5 | 131 | |
1800 | 215T | ED215T10M4G | 220/380 | 60 | ODP | 1.15 | 26.5/14 | 131 | |
1800 | 215T | ED215T10M4D | 575 | 60 | ODP | 1.15 | 10 | 131 | |
15 | 3600 | 215T | ED215T15M2A | 208-230/460 | 60 | ODP | 1.15 | 37.8-34.4/17.2 | 126 |
3600 | 215T | ED215T15M2D | 575 | 60 | ODP | 1.15 | 13.8 | 126 | |
1800 | 254T | ED254T15M4A | 208-230/460 | 60 | ODP | 1.15 | 41.8-38.0/19.0 | 198 | |
1800 | 254T | ED254T15M4D | 575 | 60 | ODP | 1.15 | 15.2 | 198 | |
20 | 1800 | 256T | ED256T20M4A | 208-230/460 | 60 | ODP | 1.15 | 56.5-61.4/25.7 | 210 |
1800 | 256T | ED256T20M4D | 575 | 60 | ODP | 1.15 | 20.6 | 210 |

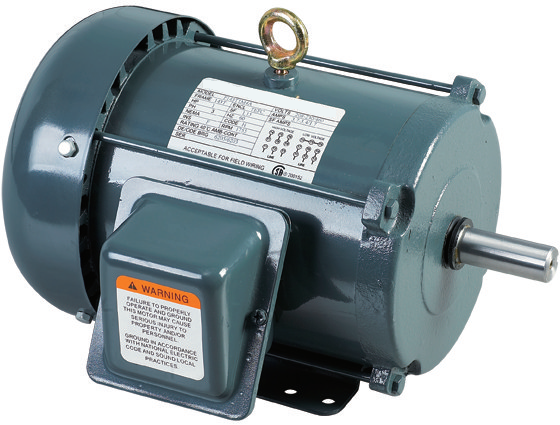

2、Three-Phase Totally Enclosed High-Efficiency Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | % | WGT. |
1 | 3600 | 143T | EF143T1M2A | 208-230/460 | 60 | TEFC | 1.15 | 3.5-3.2/1.6 | 75.5 | 34 |
3600 | 143T | EF143T1M2D | 575 | 60 | TEFC | 1.15 | 1.28 | 75.5 | 34 | |
1800 | 143T | EF143T1M4A | 208-230/460 | 60 | TEFC | 1.15 | 3.7-3.4/1.7 | 82.5 | 48 | |
1800 | 143T | EF143T1M4D | 575 | 60 | TEFC | 1.15 | 1.36 | 82.5 | 48 | |
1200 | 145T | EF145T1M6A | 208-230/460 | 60 | TEFC | 1.15 | 4.4-4.0/2.0 | 80.0 | 47 | |
1200 | 145T | EF145T1M6D | 575 | 60 | TEFC | 1.15 | 1.6 | 80.0 | 47 | |
1.5 | 3600 | 143T | EF143T1.5M2A | 208-230/460 | 60 | TEFC | 1.15 | 4.64.2/2.1 | 82.5 | 43 |
3600 | 143T | EF143T1.5M2D | 575 | 60 | TEFC | 1.15 | 1.68 | 82.5 | 43 | |
1800 | 145T | EF145T1.5M4A | 208-230/460 | 60 | TEFC | 1.15 | 5.5-6.0Z2.5 | 84.0 | 52 | |
1800 | 145T | EF145T1.5M4D | 575 | 60 | TEFC | 1.15 | 2.0 | 84.0 | 52 | |
1200 | 182T | EF182T1.5M6A | 208-230/460 | 60 | TEFC | 1.15 | 5.5-5.0/2.5 | 87.2 | 66.5 | |
1200 | 182T | EF182T1.5M6D | 575 | 60 | TEFC | 1.15 | 2.0 | 87.2 | 66.5 | |
2 | 3600 | 145T | EF145T2M2A | 208-230/460 | 60 | TEFC | 1.15 | 57-5.2/2.6 | 84.0 | 45 |
3600 | 145T | EF145T2M2D | 575 | 60 | TEFC | 1.15 | 2.08 | 84.0 | 45 | |
1800 | 145T | EF145T2M4A | 208-230/460 | 60 | TEFC | 1.15 | 6.6-6.0/3.0 | 84.0 | 55 | |
1800 | 145T | EF145T2M4D | 575 | 60 | TEFC | 1.15 | 2.24 | 84.0 | 55 | |
1200 | 184T | EF184T2M6A | 208-230/460 | 60 | TEFC | 1.15 | 7.3-€.6Z3.3 | 86.5 | 85 | |
1200 | 184T | EF184T2M6D | 575 | 60 | TEFC | 1.15 | 2.56 | 86.5 | 85 | |
3 | 3600 | 182T | EF182T3M2A | 208-230/460 | 60 | TEFC | 1.15 | 8.4-7.6/3.8 | 85.5 | 69 |
3600 | 182T | EF182T3M2D | 575 | 60 | TEFC | 1.15 | 3.05 | 85.5 | 69 | |
1800 | 182T | EF182T3M4A | 208-230/460 | 60 | TEFC | 1.15 | 8.6-7.8Z3.9 | 87.5 | 88 | |
1800 | 182T | EF182T3M4D | 575 | 60 | TEFC | 1.15 | 2.89 | 87.5 | 88 | |
1200 | 213T | EF213T3M6A | 208-230/460 | 60 | TEFC | 1.15 | 10.8-9.8/4.9 | 87.5 | 118 | |
1200 | 213T | EF213T3M6D | 575 | 60 | TEFC | 1.15 | 3.84 | 87.5 | 118 | |
5 | 3600 | 184T | EF184T5M2A | 208-230/460 | 60 | TEFC | 1.15 | 13.4-12.2/6.1 | 87.5 | 88 |
3600 | 184T | EF184T5M2D | 575 | 60 | TEFC | 1.15 | 4.8 | 87.5 | 88 | |
1800 | 184T | EF184T5M4A | 208-230/460 | 60 | TEFC | 1.15 | 14.3-13.0/6.5 | 87.5 | 95 | |
1800 | 184T | EF184T5M4D | 575 | 60 | TEFC | 1.15 | 5.2 | 87.5 | 95 | |
1200 | 215T | EF215T5M6A | 208-230/460 | 60 | TEFC | 1.15 | 16.5-15.0/7.5 | 87.5 | 128 | |
1200 | 215T | EF215T5M6D | 575 | 60 | TEFC | 1.15 | 6.0 | 87.5 | 128 | |
7.5 | 3600 | 213T | EF213T7.5M2A | 208-230/460 | 60 | TEFC | 1.15 | 20.2-18.4/9.2 | 88.5 | 121 |
3600 | 213T | EF213T7.5M2D | 575 | 60 | TEFC | 1.15 | 7.12 | 88.5 | 121 | |
1800 | 213T | EF213T7.5M4A | 208-230/460 | 60 | TEFC | 1.15 | 20.7-18.8/9.4 | 89.5 | 137 | |
1800 | 213T | EF213T7.5M4D | 575 | 60 | TEFC | 1.15 | 7.35 | 89.5 | 137 | |
10 | 3600 | 215T | EF215T10M2A | 208-230/460 | 60 | TEFC | 1.15 | 26.0-23.6/11.8 | 89.5 | 134 |
3600 | 215T | EF215T10M2D | 575 | 60 | TEFC | 1.15 | 9.45 | 89.5 | 134 | |
1800 | 215T | EF215T10M4A | 208-230/460 | 60 | TEFC | 1.15 | 27.5-25.0/12.5 | 89.5 | 146 | |
1800 | 215T | EF215T10M4D | 575 | 60 | TEFC | 1.15 | 10.0 | 89.5 | 146 |
Typical application examples of NEMA motors
In the petrochemical industry, they drive large compressors and pumps.
In water treatment plants, they drive water pumps and aeration blowers.
In mines, they drive conveyor belts and ventilation systems.

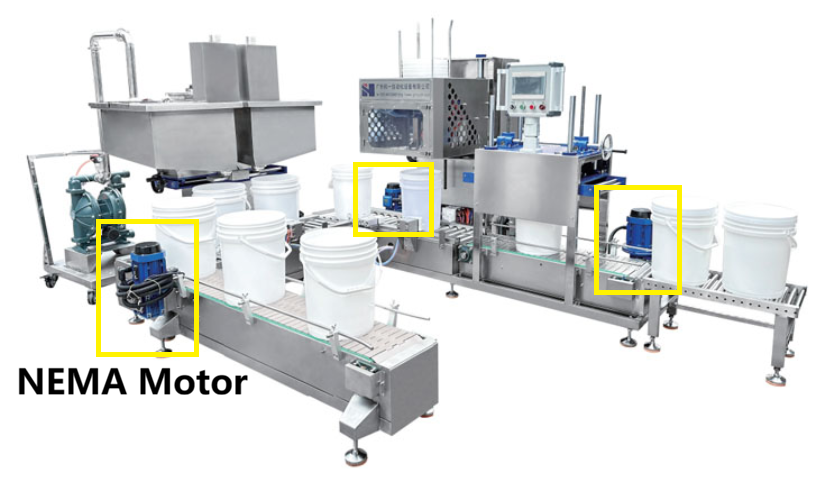

In the food and beverage industry, they drive mixers and filling lines.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
info@start-motors-tech.com (Mr.Louis)
The NEMA motor standard defines the following key specifications:
Frame and Mounting Dimensions: Specifies the motor's mounting and overall physical dimensions. Common frame sizes include the 56 frame for small industrial and commercial applications; and the 143T/145T frames suitable for pumps, conveyors, and fans. This ensures consistent motor dimensions across different manufacturers, facilitating equipment integration and replacement.
Power and Efficiency Ratings: Clearly defines the motor's power and efficiency ratings, such as NEMA premium efficiency motors, which reduce energy costs over the motor's lifespan, and NEMA energy-efficient motors, which also offer better efficiency than standard motors.
Motor Frame Characteristics: Defines the physical characteristics of the motor frame, ensuring the reliability of the motor structure.
Installation Options: Determine the mounting method, such as foot mounting or flange mounting, and specify the shaft diameter and length to enhance motor compatibility.
Environmental Protection Rating: Different protection ratings are available; for example, open drip-proof (ODP) motors are suitable for clean indoor environments, while totally enclosed fan-cooled (TEFC) motors are used in harsh environments.
Testing and Performance Standards: Establish testing procedures and performance standards to ensure that motor performance meets specifications.
NEMA Motor Features:
HP: 1HP-20HP
Pole: 2P, 4P, 6P
Frame: 143T-256T
Rolled steel
NEMA design B
Accept C-face Kit
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: ODP/TEFC
IP Class: IP23/IP44
1、Three-Phase Dripproof High-Efficiency Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1 | 3600 | 143T | ED143T1M2A | 2208-230/460 | 60 | ODP | 1.15 | 3.7-3.4/1.7 | 31.5 |
3600 | 143T | ED143T1M2D | 575 | 60 | ODP | 1.15 | 1.36 | 31.5 | |
1800 | 143T | ED143T1M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 40.5 | |
1800 | 143T | ED143T1M4D | 575 | 60 | ODP | 1.15 | 1.28 | 40.5 | |
1200 | 145T | ED145T1M6A | 208-230/460 | 60 | ODP | 1.15 | 4.2-3.8/1.9 | 40 | |
1200 | 145T | ED145T1M6D | 575 | 60 | ODP | 1.15 | 1.52 | 40 | |
1.5 | 3600 | 143T | ED143T1.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.64.2/2.1 | 37 |
3600 | 143T | ED143T1.5M2D | 575 | 60 | ODP | 1.15 | 1.68 | 37 | |
1800 | 145T | EO145T1.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5K6/2.3 | 44 | |
1800 | 145T | ED145T1.5M4O | 575 | 60 | ODP | 1.15 | 1.84 | 44 | |
1200 | 182T | ED182T1.5M6A | 208-230/460 | 60 | ODP | 1.15 | 5.6-6.0/2.5 | 66.5 | |
1200 | 182T | ED182T1.5M6O | 575 | 60 | ODP | 1.15 | 2.0 | 66.5 | |
2 | 3600 | 145T | ED145T2M2A | 208-230/460 | 60 | ODP | 1.15 | 5.9-6.472.7 | 37.5 |
3600 | 145T | ED145T2M2D | 575 | 60 | ODP | 1.15 | 2.16 | 37.5 | |
1800 | 145T | ED145T2M4A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2Z3.1 | 47.5 | |
1800 | 145T | ED145T2M4D | 575 | 60 | ODP | 1.15 | 2.48 | 47.5 | |
1200 | 184T | ED184T2M6A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2/3.1 | 73 | |
1200 | 184T | ED184T2M6D | 575 | 60 | ODP | 1.15 | 2.5 | 73 | |
3 | 3600 | 145T | ED145T3M2A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/40 | 41 |
3600 | 145T | ED145T3M2D | 575 | 60 | ODP | 1.15 | 3.2 | 41 | |
1800 | 182T | ED182T3M4A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 78 | |
1800 | 182T | ED182T3M4G | 220/380 | 60 | ODP | 1.15 | 8.5M.5 | 78 | |
1800 | 182T | ED182T3M4D | 575 | 60 | ODP | 1.15 | 3.2 | 78 | |
1200 | 213T | ED213T3M6A | 208-230/460 | 60 | ODP | 1.15 | 9.5-8.6Z4.3 | 103 | |
1200 | 213T | ED213T3M6D | 575 | 60 | ODP | 1.15 | 3.5 | 103 | |
5 | 3600 | 182T | ED182T5M2A | 208-230/460 | 60 | ODP | 1.15 | 14.1-12.8/6.4 | 73 |
3600 | 182T | ED182T5M2D | 575 | 60 | ODP | 1.15 | 5.12 | 73 | |
1800 | 184T | ED184T5M4A | 208-230/460 | 60 | ODP | 1.15 | 14.3-13.0/6.5 | 85 | |
1800 | 184T | ED184T5M4G | 220/380 | 60 | ODP | 1.15 | 13.5/7.3 | 85 | |
1800 | 184T | ED184T5M4D | 575 | 60 | ODP | 1.15 | 5.2 | 85 | |
1200 | 215T | ED215T5M6A | 208-230/460 | 60 | ODP | 1.15 | 15.6-14.2/7.1 | 112 | |
1200 | 215T | ED215T5M6D | 575 | 60 | ODP | 1.15 | 5.7 | 112 | |
7.5 | 3600 | 184T | ED184T7.5M2A | 208-230/460 | 60 | ODP | 1.15 | 19.6-17.8/8.9 | 79.5 |
3600 | 184T | ED184T7.5M2D | 575 | 60 | ODP | 1.15 | 7.12 | 79.5 | |
1800 | 213T | ED213T7.5M4A | 208-230/460 | 60 | ODP | 1.15 | 20.9-19.0/9.5 | 120 | |
1800 | 213T | ED213T7.5M4G | 220/380 | 60 | ODP | 1.15 | 19.8/10.6 | 120 | |
1800 | 213T | ED213T7.5M4D | 575 | 60 | ODP | 1.15 | 7.6 | 120 | |
10 | 3600 | 213T | ED213T10M2A | 208-230/460 | 60 | ODP | 1.15 | 27.7-25.2/12.6 | 114 |
3600 | 213T | ED213T10M2D | 575 | 60 | ODP | 1.15 | 10.0 | 114 | |
1800 | 215T | ED215T10M4A | 208-230/460 | 60 | ODP | 1.15 | 27.5-25.0/12.5 | 131 | |
1800 | 215T | ED215T10M4G | 220/380 | 60 | ODP | 1.15 | 26.5/14 | 131 | |
1800 | 215T | ED215T10M4D | 575 | 60 | ODP | 1.15 | 10 | 131 | |
15 | 3600 | 215T | ED215T15M2A | 208-230/460 | 60 | ODP | 1.15 | 37.8-34.4/17.2 | 126 |
3600 | 215T | ED215T15M2D | 575 | 60 | ODP | 1.15 | 13.8 | 126 | |
1800 | 254T | ED254T15M4A | 208-230/460 | 60 | ODP | 1.15 | 41.8-38.0/19.0 | 198 | |
1800 | 254T | ED254T15M4D | 575 | 60 | ODP | 1.15 | 15.2 | 198 | |
20 | 1800 | 256T | ED256T20M4A | 208-230/460 | 60 | ODP | 1.15 | 56.5-61.4/25.7 | 210 |
1800 | 256T | ED256T20M4D | 575 | 60 | ODP | 1.15 | 20.6 | 210 |

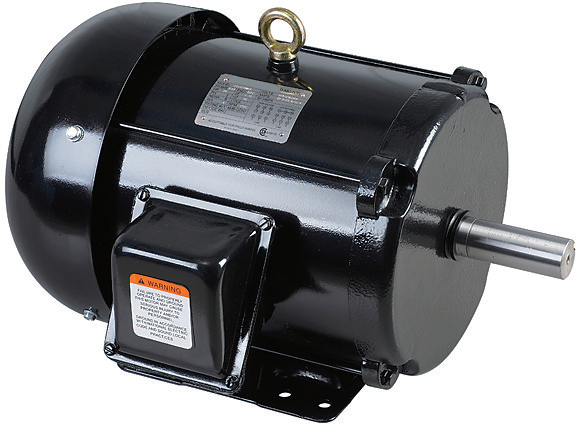

2、Three-Phase Totally Enclosed High-Efficiency Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | % | WGT. |
1 | 3600 | 143T | EF143T1M2A | 208-230/460 | 60 | TEFC | 1.15 | 3.5-3.2/1.6 | 75.5 | 34 |
3600 | 143T | EF143T1M2D | 575 | 60 | TEFC | 1.15 | 1.28 | 75.5 | 34 | |
1800 | 143T | EF143T1M4A | 208-230/460 | 60 | TEFC | 1.15 | 3.7-3.4/1.7 | 82.5 | 48 | |
1800 | 143T | EF143T1M4D | 575 | 60 | TEFC | 1.15 | 1.36 | 82.5 | 48 | |
1200 | 145T | EF145T1M6A | 208-230/460 | 60 | TEFC | 1.15 | 4.4-4.0/2.0 | 80.0 | 47 | |
1200 | 145T | EF145T1M6D | 575 | 60 | TEFC | 1.15 | 1.6 | 80.0 | 47 | |
1.5 | 3600 | 143T | EF143T1.5M2A | 208-230/460 | 60 | TEFC | 1.15 | 4.64.2/2.1 | 82.5 | 43 |
3600 | 143T | EF143T1.5M2D | 575 | 60 | TEFC | 1.15 | 1.68 | 82.5 | 43 | |
1800 | 145T | EF145T1.5M4A | 208-230/460 | 60 | TEFC | 1.15 | 5.5-6.0Z2.5 | 84.0 | 52 | |
1800 | 145T | EF145T1.5M4D | 575 | 60 | TEFC | 1.15 | 2.0 | 84.0 | 52 | |
1200 | 182T | EF182T1.5M6A | 208-230/460 | 60 | TEFC | 1.15 | 5.5-5.0/2.5 | 87.2 | 66.5 | |
1200 | 182T | EF182T1.5M6D | 575 | 60 | TEFC | 1.15 | 2.0 | 87.2 | 66.5 | |
2 | 3600 | 145T | EF145T2M2A | 208-230/460 | 60 | TEFC | 1.15 | 57-5.2/2.6 | 84.0 | 45 |
3600 | 145T | EF145T2M2D | 575 | 60 | TEFC | 1.15 | 2.08 | 84.0 | 45 | |
1800 | 145T | EF145T2M4A | 208-230/460 | 60 | TEFC | 1.15 | 6.6-6.0/3.0 | 84.0 | 55 | |
1800 | 145T | EF145T2M4D | 575 | 60 | TEFC | 1.15 | 2.24 | 84.0 | 55 | |
1200 | 184T | EF184T2M6A | 208-230/460 | 60 | TEFC | 1.15 | 7.3-€.6Z3.3 | 86.5 | 85 | |
1200 | 184T | EF184T2M6D | 575 | 60 | TEFC | 1.15 | 2.56 | 86.5 | 85 | |
3 | 3600 | 182T | EF182T3M2A | 208-230/460 | 60 | TEFC | 1.15 | 8.4-7.6/3.8 | 85.5 | 69 |
3600 | 182T | EF182T3M2D | 575 | 60 | TEFC | 1.15 | 3.05 | 85.5 | 69 | |
1800 | 182T | EF182T3M4A | 208-230/460 | 60 | TEFC | 1.15 | 8.6-7.8Z3.9 | 87.5 | 88 | |
1800 | 182T | EF182T3M4D | 575 | 60 | TEFC | 1.15 | 2.89 | 87.5 | 88 | |
1200 | 213T | EF213T3M6A | 208-230/460 | 60 | TEFC | 1.15 | 10.8-9.8/4.9 | 87.5 | 118 | |
1200 | 213T | EF213T3M6D | 575 | 60 | TEFC | 1.15 | 3.84 | 87.5 | 118 | |
5 | 3600 | 184T | EF184T5M2A | 208-230/460 | 60 | TEFC | 1.15 | 13.4-12.2/6.1 | 87.5 | 88 |
3600 | 184T | EF184T5M2D | 575 | 60 | TEFC | 1.15 | 4.8 | 87.5 | 88 | |
1800 | 184T | EF184T5M4A | 208-230/460 | 60 | TEFC | 1.15 | 14.3-13.0/6.5 | 87.5 | 95 | |
1800 | 184T | EF184T5M4D | 575 | 60 | TEFC | 1.15 | 5.2 | 87.5 | 95 | |
1200 | 215T | EF215T5M6A | 208-230/460 | 60 | TEFC | 1.15 | 16.5-15.0/7.5 | 87.5 | 128 | |
1200 | 215T | EF215T5M6D | 575 | 60 | TEFC | 1.15 | 6.0 | 87.5 | 128 | |
7.5 | 3600 | 213T | EF213T7.5M2A | 208-230/460 | 60 | TEFC | 1.15 | 20.2-18.4/9.2 | 88.5 | 121 |
3600 | 213T | EF213T7.5M2D | 575 | 60 | TEFC | 1.15 | 7.12 | 88.5 | 121 | |
1800 | 213T | EF213T7.5M4A | 208-230/460 | 60 | TEFC | 1.15 | 20.7-18.8/9.4 | 89.5 | 137 | |
1800 | 213T | EF213T7.5M4D | 575 | 60 | TEFC | 1.15 | 7.35 | 89.5 | 137 | |
10 | 3600 | 215T | EF215T10M2A | 208-230/460 | 60 | TEFC | 1.15 | 26.0-23.6/11.8 | 89.5 | 134 |
3600 | 215T | EF215T10M2D | 575 | 60 | TEFC | 1.15 | 9.45 | 89.5 | 134 | |
1800 | 215T | EF215T10M4A | 208-230/460 | 60 | TEFC | 1.15 | 27.5-25.0/12.5 | 89.5 | 146 | |
1800 | 215T | EF215T10M4D | 575 | 60 | TEFC | 1.15 | 10.0 | 89.5 | 146 |
Typical application examples of NEMA motors
In the petrochemical industry, they drive large compressors and pumps.
In water treatment plants, they drive water pumps and aeration blowers.
In mines, they drive conveyor belts and ventilation systems.
In the food and beverage industry, they drive mixers and filling lines.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
info@start-motors-tech.com (Mr.Louis)
