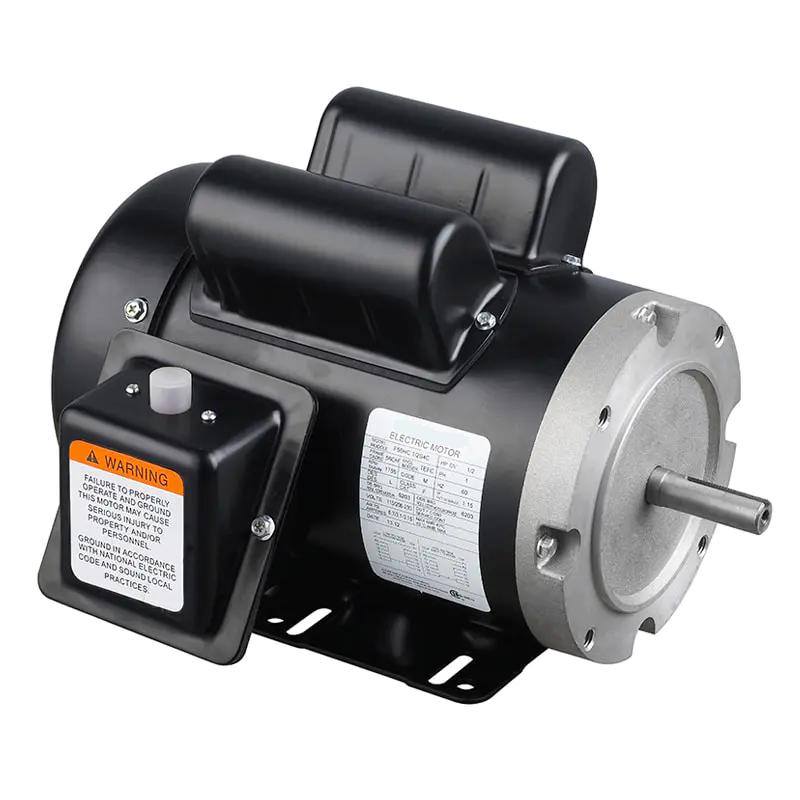

56C/56J
start-motors
0145
| Quantity: | |
|---|---|
Application scenario characteristics
• High Performance and Reliability: Meets the requirements for high power density, high efficiency, and long lifespan, especially in continuous heavy-duty applications.
• Adaptability to Harsh Environments: Provides dustproof, waterproof, and corrosion-resistant protection through NEMA enclosure ratings (such as NEMA 4), suitable for damp, dusty, or areas requiring water washdown.
• Energy Saving and Environmental Protection: Meets modern industrial requirements for energy efficiency, reducing operating costs.
• Standardization and Interchangeability: NEMA standards ensure uniformity of motor specifications, facilitating selection, installation, and maintenance, and promoting product access to international markets.
Features:
HP: 1HP-3HP
Pole: 2P, 4P
Frame: 56C, 56HC，56J
Rolled steel
NEMA design: B、N
Service factor: 1.15， 1.1-1.67
Insulation Class: F (UL approved)
Enclosure: TEFC、ODP
IP Class: IP44、 IP23
HP | RPM | NEMA | Model | Volts | HZ | PH | ENCL. | S.F | Full Load AMPS | WGT. |
1 | 1800 | 56C | F56C1S4C | 115/230 | 60 | 1 | TEFC | 1.15 | 9.2/5.0^.7 | 38 |
3600 | 56C | F56C1S2C | 115/230 | 60 | 1 | TEFC | 1.15 | 8.3/4.4 | 30 | |
2 | 1800 | 56C | F56C2S4C | 115/230 | 60 | 1 | TEFC | 1.15 | 16.5/8.3 | 47 |
3600 | 56C | F56C2S2C | 115/230 | 60 | 1 | TEFC | 1.15 | 16.5/8.4 | 44 | |
3 | 3600 | 56HC | F56HC3S2C | 230 | 60 | 1 | TEFC | 1.15 | 13.0 | 60 |

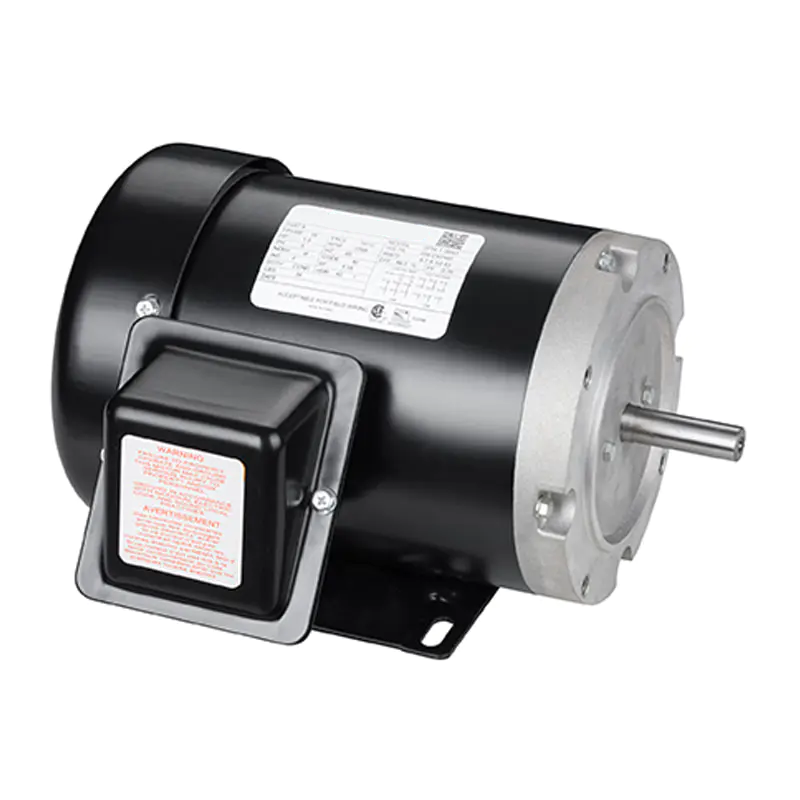

1 | 1800 | 56C | F56C1M4A | 230/460 | 60 | 3 | TEFC | 1.15 | 3.4/1.7 | 33 |
1800 | 56C | F56C1M4D | 575 | 60 | 3 | TEFC | 1.15 | 1.4 | 33 | |
1.5 | 1800 | 56C | F561.5M4A | 230/460 | 60 | 3 | TEFC | 1.15 | 5.2/2.6 | 37 |
1800 | 56C | F56C1.5M4D | 575 | 60 | 3 | TEFC | 1.15 | 2.0 | 37 | |
2 | 1800 | 56C | F56C2M4A | 230/460 | 60 | 3 | TEFC | 1.15 | 6.0/3.0 | 40 |
1800 | 56C | F56C2M4D | 575 | 60 | 3 | TEFC | 1.15 | 2.5 | 40 | |
3600 | 56C | F56C2M2D | 575 | 60 | 3 | TEFC | 1.15 | 2.1 | 34 | |
3 | 1800 | 56HC | F56HC3M4A | 230/460 | 60 | 3 | TEFC | 1.15 | 9.0/4.5 | 47 |
1800 | 56HC | F56HC3M4D | 575 | 60 | 3 | TEFC | 1.15 | 3.6 | 47 |

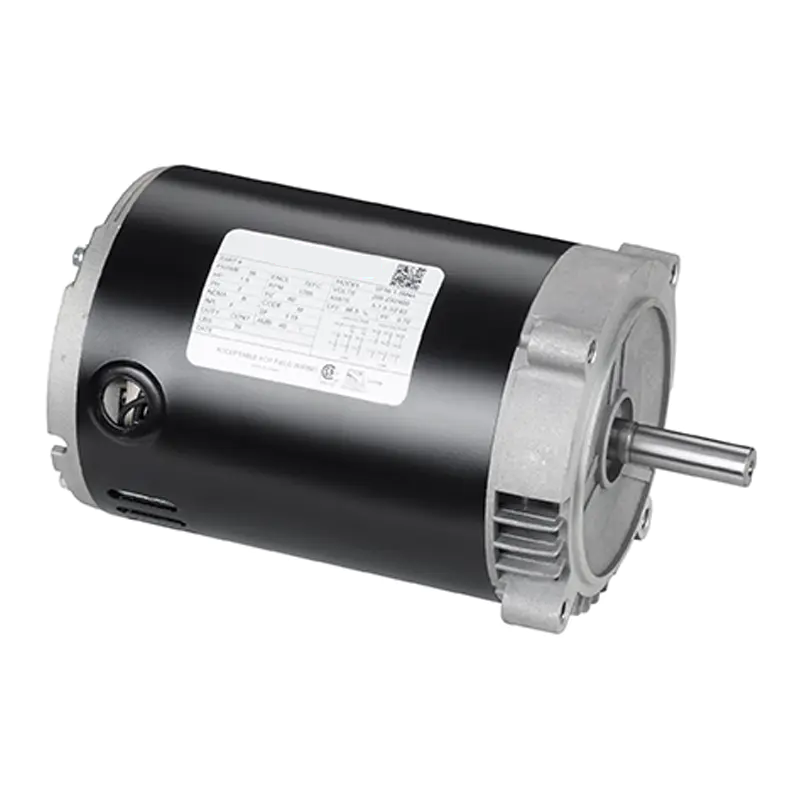

2、Single-Phase Pool and Spa Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
3/4 | 3600 | 56J | D56J3/4S2C-Y-1.67 | 115/230 | 60 | ODP | 1.67 | 8.6/4.3 | 24 |
1 | 3600 | 56J | D56J1S2C-Y-1.4 | 115/230 | 60 | ODP | 1.4 | 10.24/5.51 | 28 |
3600 | 56J | D56J1S2C-Y-1.65 | 115/230 | 60 | ODP | 1.65 | 9.65/5 | 28 | |
1.5 | 3600 | 56J | D56J1.5S2C-Y-1.3 | 115/230 | 60 | ODP | 1.3 | 12.53/6.31 | 35 |
2 | 3600 | 56J | D56J2S2C-Y-1.1 | 115/230 | 60 | ODP | 1.1 | 12.53/6.31 | 43 |
3600 | 56J | D56J2S2C-Y-1.2 | 115/230 | 60 | ODP | 1.2 | 17.6/8.8 | 43 | |
3600 | 56J | D56J2S2C-Y-1.3 | 115/230 | 60 | ODP | 1.3 | 17.4/8.7 | 43 |
NEMA motors are used in many different applications due to their wide range of uses and excellent performance. The following are some of the main applications, categorized and summarized by different fields:
1. Industrial Sector:
Machinery Drives: NEMA motors are commonly used to drive various mechanical equipment, such as pumps, fans, and compressors. They play a crucial role in these devices, providing essential power support.
Production Lines: In manufacturing, NEMA motors are widely used in various stages of production lines, such as conveyor belts and mixing equipment. The high reliability and efficiency of these motors ensure the stable operation of the production line.
2. Commercial Environments:
HVAC Systems: In commercial buildings, NEMA motors are commonly used in fans and compressors of HVAC (Heating, Ventilation, and Air Conditioning) systems. They provide comfortable environmental control indoors. Other Commercial Equipment: NEMA motors are also used in other commercial equipment, such as electric doors and motorized blinds, providing flexible and reliable power support.
3. Home Automation:
Home Appliances: In the home environment, NEMA motors are used to drive various home appliances, such as electric curtains and electric doors. These motors provide convenience and comfort for home automation.
4. Special Applications:
Special Operating Environments: Depending on the NEMA motor grade, they are also suitable for some special operating environments. For example, NEMA F-grade motors are suitable for operation in high-temperature environments, while NEMA G-grade motors are suitable for special requirements in special operating environments.
Please contact our sales team for details regarding model naming.
