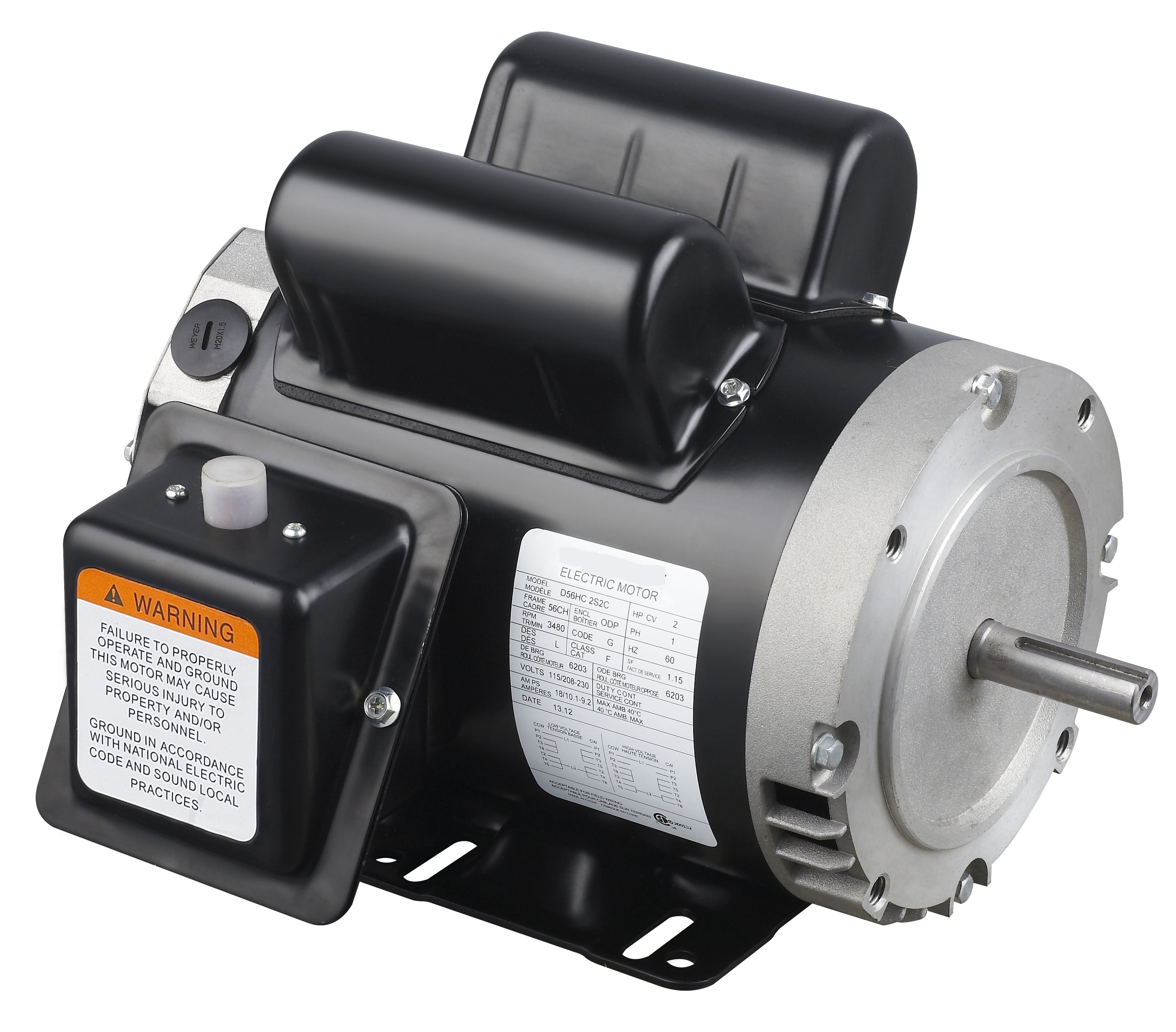

NEMA 56J
start-motors
0142
| Quantity: | |
|---|---|
Features:
HP: 1/3HP-3HP
Capacitor Start
Pole:2P
Frame: 56J
Rolled Steel
NEMA design: N/B
Service Factor: 1.15
Insulation Class: F(UL approved)
Enclosure: ODP
IP Class: IP23, IP44

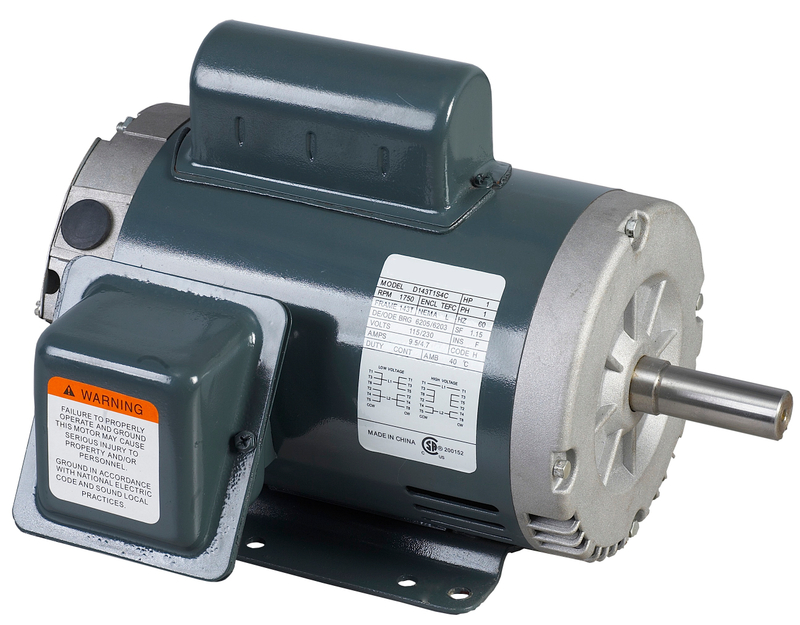

1、56 Frame Dripproof Single-Phase Jet Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56J | D56J 1/3S2C-C | 115/230 | 60 | ODP | 1.15 | 6.4/3.5 | 25 |
1/2 | 3600 | 56J | D56J 1/2S2C-C | 115/230 | 60 | ODP | 1.15 | 7.9/4 | 26 |
3/4 | 3600 | 56J | D56J 3/4S2C-C | 115/230 | 60 | ODP | 1.15 | 9.6/4.8 | 28 |
1 | 3600 | 56J | D56J 1S2C-C | 115/230 | 60 | ODP | 1.15 | 11.4/5.8 | 30 |
1.5 | 3600 | 56J | D56J 1.5S2C-C | 115/230 | 60 | ODP | 1.15 | 15.7/7.8 | 33 |
2 | 3600 | 56J | D56J 2S2C-C | 115/230 | 60 | ODP | 1.15 | 20.8/10.4 | 47 |
3 | 3600 | 56J | D56J 3S2C-C | 115/230 | 60 | ODP | 1.15 | 28.5/14.3 | 57 |
2、56 Frame Dripproof Three-Phase Jet Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56J | D56J 1/3M2A | 230/460 | 60 | ODP | 1.15 | 1.7/0.85 | 18 |
3600 | 56J | D56J 1/3M2D | 575 | 60 | ODP | 1.15 | 0.68 | 18 | |
1/2 | 3600 | 56J | D56J 1/2M2A | 230/460 | 60 | ODP | 1.15 | 2.0/1.0 | 23 |
3600 | 56J | D56J 1/2M2D | 575 | 60 | ODP | 1.15 | 0.80 | 23 | |
3/4 | 3600 | 56J | D56J 3/4M2A | 230/460 | 60 | ODP | 1.15 | 2.6/1.3 | 23.5 |
3600 | 56J | D56J 3/4M2D | 575 | 60 | ODP | 1.15 | 1.05 | 23.5 | |
1 | 3600 | 56J | D56J 1M2A | 230/460 | 60 | ODP | 1.15 | 3.4/1.7 | 24 |
3600 | 56J | D56J 1M2D | 575 | 60 | ODP | 1.15 | 1.36 | 24 | |
1.5 | 3600 | 56J | D56J 1.5M2A | 230/460 | 60 | ODP | 1.15 | 4.4/2.2 | 29 |
3600 | 56J | D56C 1.5M2D | 575 | 60 | ODP | 1.15 | 1.76 | 29 | |
2 | 3600 | 56J | D56J 2M2A | 230/460 | 60 | ODP | 1.15 | 5.1/2.85 | 33 |
3600 | 56J | D56J 2M2D | 575 | 60 | ODP | 1.15 | 2.28 | 33 | |
3 | 3600 | 56J | D56J 3M2A | 230/460 | 60 | ODP | 1.15 | 7.8/3.9 | 38 |
3600 | 56J | D56J 3M2D | 575 | 60 | ODP | 1.15 | 3.12 | 38 |
3、56 Frame Totally Enclosed Three-Phase Jet Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56J | F56J 1/3M2A | 230/460 | 60 | TEFC | 1.15 | 1.7/0.85 | 22.5 |
3600 | 56J | F56J 1/3M2D | 575 | 60 | TEFC | 1.15 | 0.68 | 22.5 | |
1/2 | 3600 | 56J | F56J 1/2M2A | 230/460 | 60 | TEFC | 1.15 | 2.0/1.0 | 24.5 |
3600 | 56J | F56J 1/2M2D | 575 | 60 | TEFC | 1.15 | 0.80 | 24.5 | |
3/4 | 3600 | 56J | F56J 3/4M2A | 230/460 | 60 | TEFC | 1.15 | 2.6/1.3 | 25 |
3600 | 56J | F56J 3/4M2D | 575 | 60 | TEFC | 1.15 | 1.05 | 25 | |
1 | 3600 | 56J | F56J 1M2A | 230/460 | 60 | TEFC | 1.15 | 3.4/1.7 | 25.5 |
3600 | 56J | F56J 1M2D | 575 | 60 | TEFC | 1.15 | 1.36 | 25.5 | |
1.5 | 3600 | 56J | F56J 1.5M2A | 230/460 | 60 | TEFC | 1.15 | 4.4/2.2 | 31 |
3600 | 56J | F56J 1.5M2D | 575 | 60 | TEFC | 1.15 | 1.76 | 31 | |
2 | 3600 | 56J | F56J 2M2A | 230/460 | 60 | TEFC | 1.15 | 5.1/2.85 | 35 |
3600 | 56J | F56J 2M2D | 575 | 60 | TEFC | 1.15 | 2.28 | 35 | |
3 | 3600 | 56J | F56J 3M2A | 230/460 | 60 | TEFC | 1.15 | 7.8/3.9 | 40 |
3600 | 56J | F56J 3M2D | 575 | 60 | TEFC | 1.15 | 3.12 | 40 |
Core application areas:
1. Application Scenario: Conveyors
The NEMA 56 Frame Dripproof Single-Phase/Three-phase/totally Enclosed Jet Pump Motor is ideal for use in conveyors to improve the transportation efficiency of goods. With its powerful performance and reliable operation, this motor ensures smooth and uninterrupted operation of conveyors, enhancing productivity in various industrial settings. Additionally, its dustproof, waterproof, and corrosion-resistant protection guarantees long-lasting durability, even in harsh working environments.

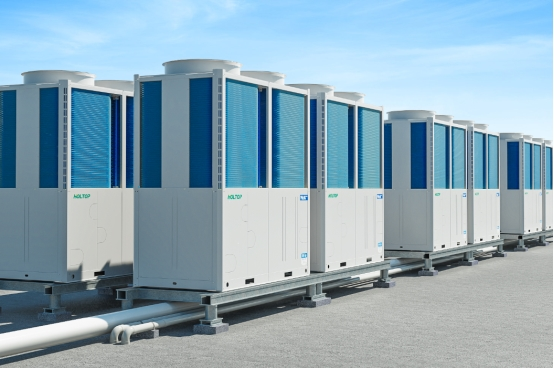

2. Application Scenario: Fans
When used in fans, the NEMA 56 Frame Dripproof Single-Phase/Three-phase/totally Enclosed Jet Pump Motor significantly enhances the dust suppression and capacity of the fan. This results in improved air circulation and ventilation, creating a more comfortable and healthier environment. The motor's robust construction and advanced features make it a reliable choice for fan applications, ensuring optimal performance and energy efficiency.
3. Application Scenario: Gear reducers
Gear reducers play a crucial role in various industrial machinery, and the NEMA 56 Frame Dripproof Single-Phase/Three-phase/totally Enclosed Jet Pump Motor is the perfect choice for powering these components. With its high torque output and precise control, this motor enhances the efficiency and reliability of gear reducers, contributing to smooth and efficient operation. Its dustproof, waterproof, and corrosion-resistant design provides added protection, ensuring long-term performance in demanding applications.

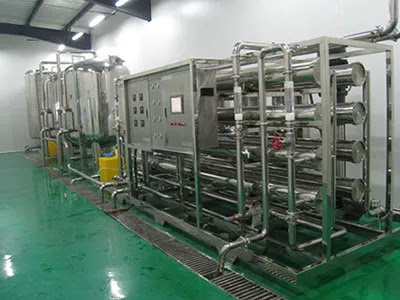

4. Application Scenario: Pumps
Pumps are essential for various industrial processes, and the NEMA 56 Frame Dripproof Single-Phase/Three-phase/totally Enclosed Jet Pump Motor is specifically designed to optimize the performance of pumps. By improving the dust suppression and capacity of the pump, this motor ensures reliable and efficient operation, contributing to increased productivity and reduced downtime. Its durable construction and protective features make it suitable for use in challenging environments, providing long-lasting performance and peace of mind.
Precautions for using NEMA motors
Select the appropriate model: The appropriate model and specifications need to be determined based on actual requirements. Parameters such as motor power, rated values, rated voltage, and installation dimensions should be considered to ensure the motor meets the actual project requirements.
When installing NEMA motors, choose a well-ventilated, dry, and clean location, away from humid, corrosive gases, or dusty environments. Avoid harsh environments that could damage the motor or degrade its performance.
The power supply wiring should be connected according to the instruction manual or relevant standards. Ensure voltage and frequency are matched to avoid damage to the motor caused by excessively high or low voltage.
Please contact our sales team for details regarding model naming.
