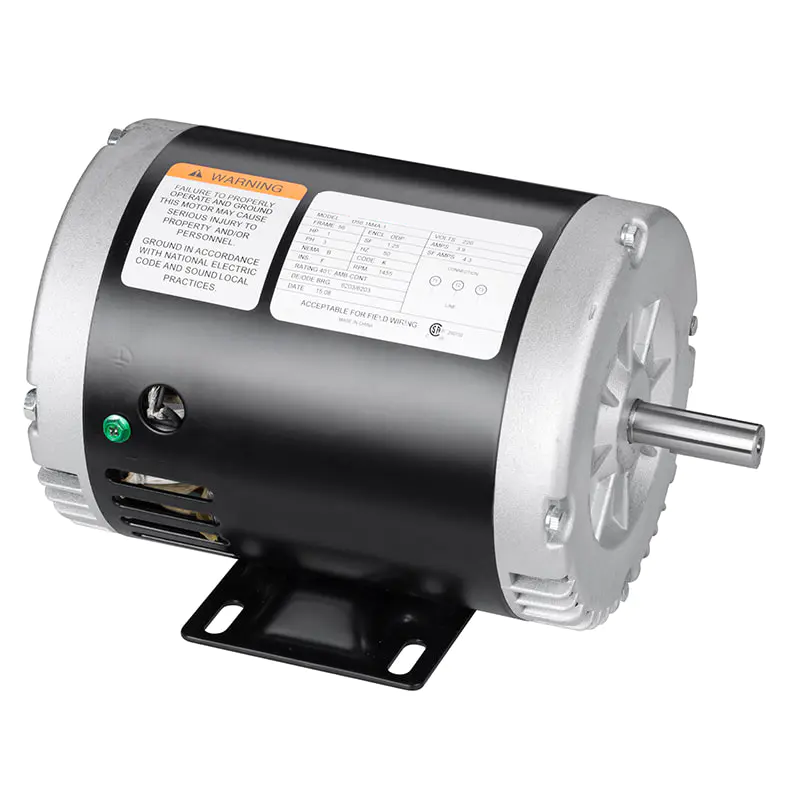

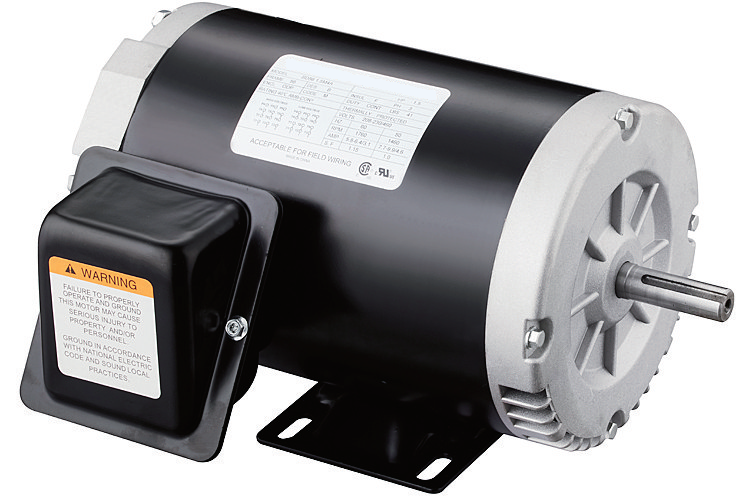

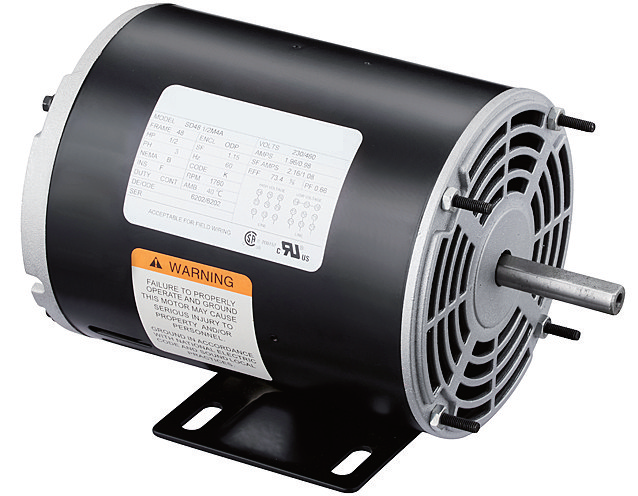

NEMA Three Phase Fractional Horsepower Premium Efficiency Motor

Features:

HP: 1/4HP-2HP

Frame: 48-56

Rolled steel frame

NEMA design B

Service factor. 1.15

Insulation Class F

Enclosure:. ODP

IP Class: IP23

1. Industrial Conveyor Belt System Description: In a bustling factory setting, the Totally Enclosed Single-Phase, Dripproof, General Purpose, Capacitor Start/Run NEMA Motor plays a crucial role in driving the industrial conveyor belt system. As products move along the assembly line, this powerful motor ensures smooth and efficient operation, allowing for seamless transportation of goods from one station to another. With its reliable performance and durable design, this motor keeps the production line running smoothly, ultimately contributing to the timely delivery of goods and services to customers.

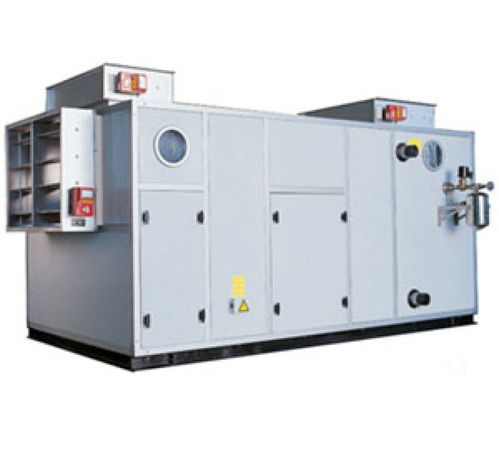

 2. HVAC System in Commercial Buildings Description: Within the confines of a large commercial building, the Totally Enclosed Single-Phase, Dripproof, General Purpose, Capacitor Start/Run NEMA Motor serves as the driving force behind the HVAC system. By powering the air conditioning and ventilation units, this motor helps maintain a comfortable indoor environment for occupants. Its efficient operation ensures proper air circulation and temperature control, creating a pleasant atmosphere conducive to productivity and well-being. With this motor in place, the building occupants can enjoy a comfortable and healthy indoor environment throughout the day.

 3. Water Pump System for Agricultural Irrigation Description: In the vast expanse of agricultural fields, the Totally Enclosed Single-Phase, Dripproof, General Purpose, Capacitor Start/Run NEMA Motor powers the water pump system essential for irrigation purposes. By drawing water from a water source and distributing it to crops through a network of pipes, this motor facilitates the growth and development of plants. Its reliable performance ensures a consistent supply of water to the fields, promoting healthy crop growth and maximizing agricultural productivity. With this motor driving the water pump system, farmers can effectively irrigate their fields and ensure a bountiful harvest at the end of the season.

How to choose the right NEMA motor for your need?

1. Motor Size and Enclosure: NEMA defines motor mounting dimensions and enclosure types to ensure interchangeability in various installation environments. Common enclosure types include Totally Enclosed Fan Cooled (TEFC) and Open Drip Proof (ODP).

2. Efficiency Rating: NEMA clearly categorizes motor energy efficiency levels, with common standards including NEMA Premium (high-efficiency motors) and NEMA Standard (standard motors), supporting the goals of energy conservation, emission reduction, and lower operating costs.

3. Performance parameters: such as power, speed, frequency, torque, and starting characteristics. The NEMA standard specifies the ranges and measurement methods for these parameters.

4. Environmental and operating conditions: The NEMA standard also has requirements for the motor's environmental adaptability, including temperature, humidity, dust, and protection class.

Common Issues with NEMA Motors

Causes of overheating and excessive temperature rise (most common failure)

1) Voltage issues: NEMA allows ±10% voltage fluctuation; low voltage → higher current and heating; high voltage → magnetic saturation and increased iron loss.

2) Three-phase voltage imbalance: According to NEMA MG-1 standards, if the imbalance >1%, derating is required. Every 1% voltage imbalance leads to 6%~10% current imbalance, causing rapid overheating; in severe cases, single-phase operation (missing phase) can burn out the winding in a short time.

3) Overloading: Many people misuse the Service Factor (SF=1.15) by running at a continuous 115% load; SF only allows short-term peak overloads, not 24/7 operation.

4) Poor heat dissipation: Installed in sealed, unventilated spaces, motor casing covered with dust; vertical installation reduces cooling efficiency without derating.

5) VFD drives: PWM harmonics increase losses and shaft current, causing extra heating.

Key Points to Address:

• Measure the voltage at the motor terminals under load and check the three-phase balance;

• Don’t continuously use a 1.15 service factor;

• For variable frequency operation, derate according to NEMA MG1 Part 30;

• Clean the airflow channels and add cooling fans or a heat-dissipating base.
