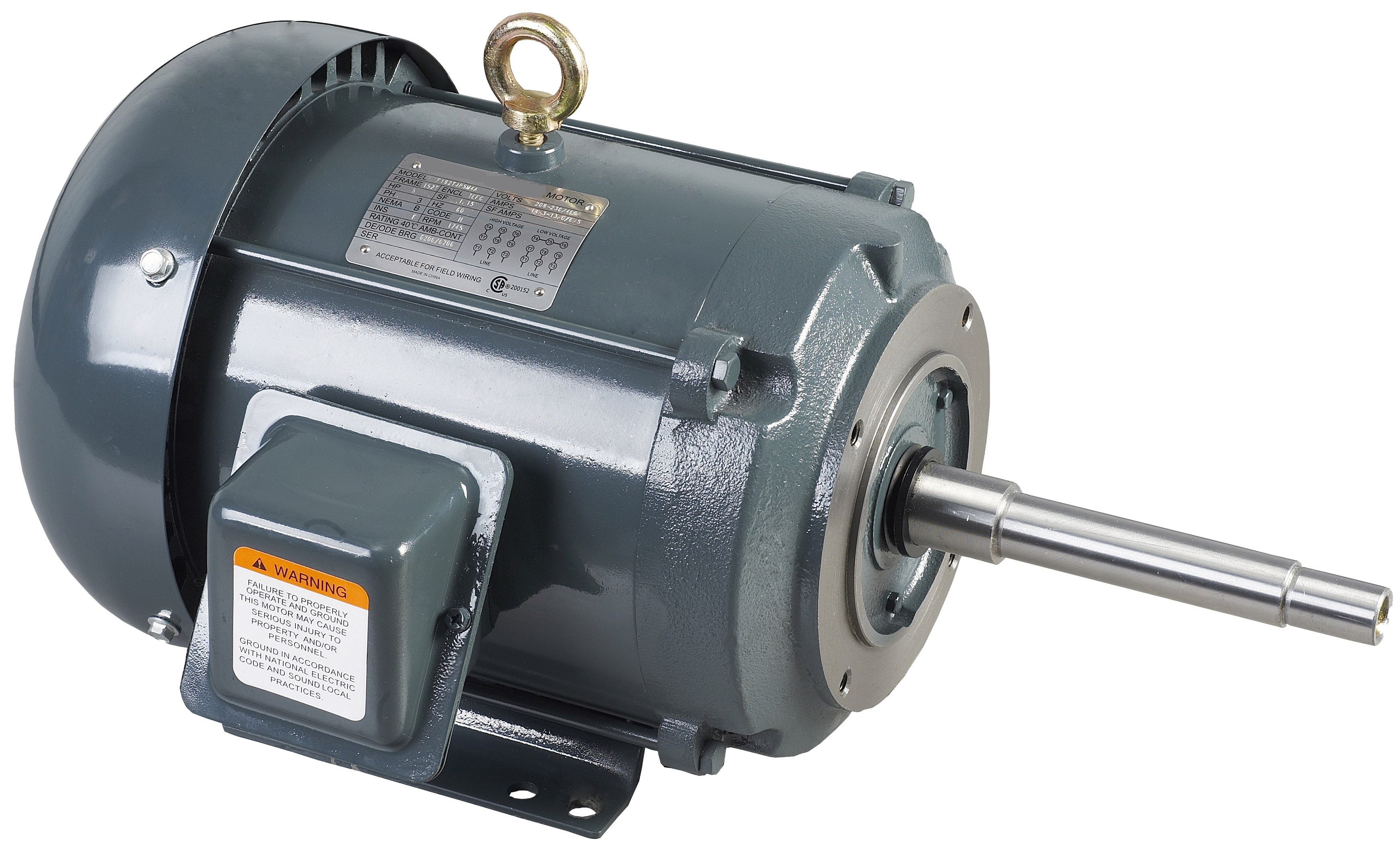

TEFC NEMA Three-Phase JM / JP Close-Coupled Pump Motor

We can make "tailor-made" Three-Phase JP Close-Coupled Pump Motor according to the requirements of different customers. All our motors are exported to the United States, Canada, Mexico, Japan, Australia, New Zealand, Saudi Arabia, etc. Motors are widely used in woodworking, air compressors, blowers, fans, water pumps, hydraulic pumps, etc.

Model:
Frame(TEFC)140/180/210JM
Brand:
start-motors
Code:
0144

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

HP: 1HP-10HP

Pole: 2P, 4P

Frame: 140JM/JP, 180JM/JP, 210JM/JP

Rolled steel

NEMA design: B

Service factor: 1.15

Insulation Class: F (UL approved)

Enclosure: TEFC

IP Class: IP44

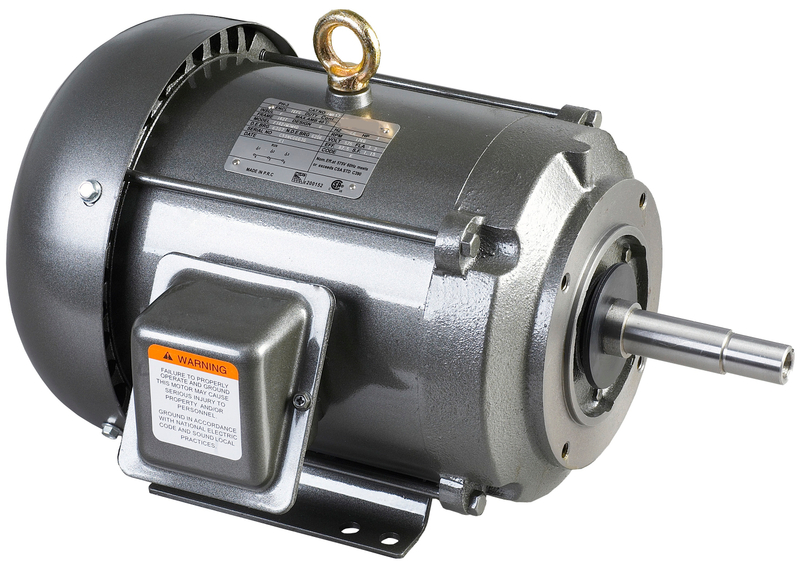

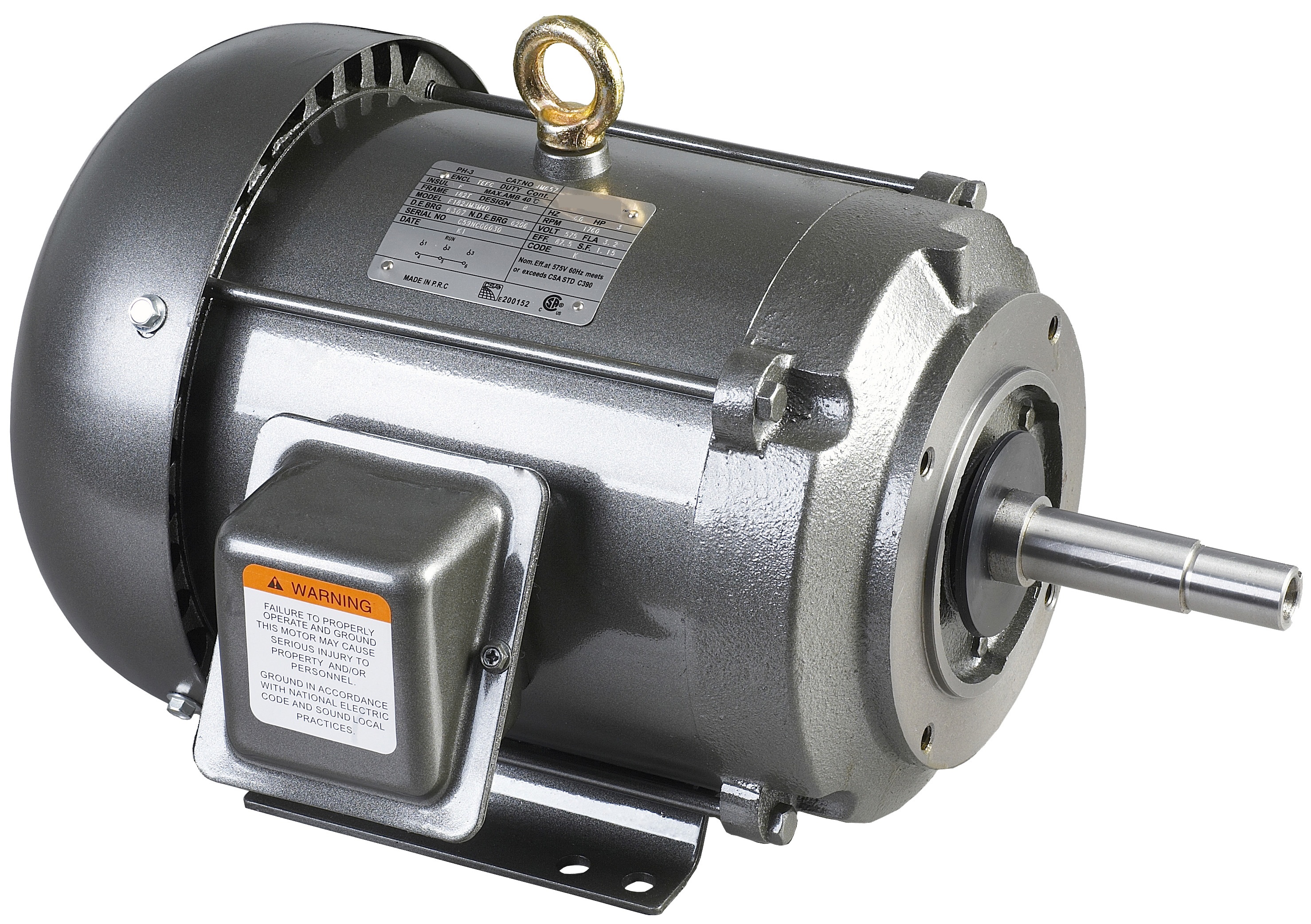

1、TEFC NEMA Three-Phase JM Close-Coupled Pump Motor

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	WGT. LBS.
1	3600	143JM	F143JM1M2A	208-230/460	60	TEFC	1.15	3.5-3.2/1.6	41
	3600	143JM	F143JM1M2D	575	60	TEFC	1.15	1.28	41
	1800	143JM	F143JM1M4A	208-230/460	60	TEFC	1.15	3.7-3.4/1.7	56
	1800	143JM	F143JM1M4D	575	60	TEFC	1.15	1.36	56
1.5	3600	143JM	F143JM1.5M2A	208-230/460	60	TEFC	1.15	4.6<2/2.1	51
	3600	143JM	143JM1.5M2D	575	60	TEFC	1.15	1.68	51
	1800	145JM	F145JM1.5M4A	208-230/460	60	TEFC	1.15	5.5-5.0/2.5	60
	1800	145JM	F145JM1.5M4D	575	60	TEFC	1.15	2.0	60
2	3600	145JM	F145JM2M2A	208-230/460	60	TEFC	1.15	57-5.2/2.6	53
	3600	145JM	F145JM2M2D	575	60	TEFC	1.15	2.08	53
	1800	145JM	F145JM2M4A	208-230/460	60	TEFC	1.15	6.6-6.0/3.0	63
	1800	145JM	F145JM2M4D	575	60	TEFC	1.15	2.24	63
3	3600	182JM	F182JM3M2A	208-230/460	60	TEFC	1.15	8.3-7.6/3.8	81
	3600	182JM	F182JM3M2D	575	60	TEFC	1.15	3.05	81
	1800	182JM	F182JM3M4A	208-230/460	60	TEFC	1.15	8.6-7.8/3.9	100
	1800	182JM	F182JM3M4D	575	60	TEFC	1.15	3.2	100
5	3600	184JM	F184JM5M2A	208-230/460	60	TEFC	1.15	13.5-12.2/6.1	102
	3600	184JM	F184JM5M2D	575	60	TEFC	1.15	4.8	102
	1800	184JM	F184JM5M4A	208-230/460	60	TEFC	1.15	14.3-13.0/6.5	106
	1800	184JM	F184JM5M4D	575	60	TEFC	1.15	5.28	106
7.5	3600	213JM	F213JM7.5M2A	208-230/460	60	TEFC	1.15	20.2-18.4/9.2	137
	3600	213JM	F213JM7.5M2D	575	60	TEFC	1.15	7.12	137
	1800	213JM	F213JM7.5M4A	208-230/460	60	TEFC	1.15	20.7-18.8/9.4	150
	1800	213JM	F213JM7.5M4D	575	60	TEFC	1.15	7.35	150
10	3600	215JM	F215JM10M2A	208-230/460	60	TEFC	1.15	26.0-23.6/11.8	148
	3600	215JM	F215JM10M2D	575	60	TEFC	1.15	9.45	148
	1800	215JM	F215JM10M4A	208-230/460	60	TEFC	1.15	27.5-25.0/12.5	157
	1800	215JM	F215JM10M4D	575	60	TEFC	1.15	10.0	157

2、TEFC NEMA Three-Phase JP Close-Coupled Pump Motor

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	WGT. LBS.
1	3600	143JP	F143JP1M2A	208-230/460	60	TEFC	1.15	3.5-3.2/1.6	41
	3600	143JP	F143JP1M2D	575	60	TEFC	1.15	1.28	41
	1800	143JP	F143JP1M4A	208-230/460	60	TEFC	1.15	3.7-3.4/1.7	56
	1800	143JP	F143JP1M4D	575	60	TEFC	1.15	1.36	56
1.5	3600	143JP	F143JP1.5M2A	208-230/460	60	TEFC	1.15	4.64.2/2.1	51
	3600	143JP	143JP1.5M2D	575	60	TEFC	1.15	1.68	51
	1800	145JP	F145JP1.5M4A	208-230/460	60	TEFC	1.15	5.5-5.0/2.5	60
	1800	145JP	F145JP1.5M4D	575	60	TEFC	1.15	2.0	60
2	3600	145JP	F145JP2M2A	208-230/460	60	TEFC	1.15	5.74.2/2.6	53
	3600	145JP	F145JP2M2D	575	60	TEFC	1.15	2.08	53
	1800	145JP	F145JP2M4A	208-230/460	60	TEFC	1.15	6.6-6.0/3.0	63
	1800	145JP	F145JP2M4D	575	60	TEFC	1.15	2.24	63
3	3600	182JP	F182JP3M2A	208-230/460	60	TEFC	1.15	8.3-7.6/3.8	81
	3600	182JP	F182JP3M2D	575	60	TEFC	1.15	3.05	81
	1800	182JP	F182JP3M4A	208-230/460	60	TEFC	1.15	8.6-7.8/3.9	100
	1800	182JP	F182JP3M4D	575	60	TEFC	1.15	3.2	100
5	3600	184JP	F184JP5M2A	208-230/460	60	TEFC	1.15	13.5-12.2/6.1	102
	3600	184JP	F184JP5M2D	575	60	TEFC	1.15	4.8	102
	1800	184JP	F184JP5M4A	208-230/460	60	TEFC	1.15	14.3-13.0/6.5	106
	1800	184JP	F184JP5M4D	575	60	TEFC	1.15	5.28	106
7.5	3600	213JP	F213JP.5M2A	208-230/460	60	TEFC	1.15	20.2-18.4/9.2	137
	3600	213JP	F213JP7.5M2D	575	60	TEFC	1.15	7.12	137
	1800	213JP	F213JP7.5M4A	208-230/460	60	TEFC	1.15	20.7-18.8/9.4	150
	1800	213JP	F213JP7.5M4D	575	60	TEFC	1.15	7.35	150
10	3600	215JP	F215JP10M2A	208-230/460	60	TEFC	1.15	26.0-23.6/11.8	148
	3600	215JP	F215JP10M2D	575	60	TEFC	1.15	9.45	148
	1800	215JP	F215JP10M4A	208-230/460	60	TEFC	1.15	27.5-25.0/12.5	157
	1800	215JP	F215JP10M4D	575	60	TEFC	1.15	10.0	157
