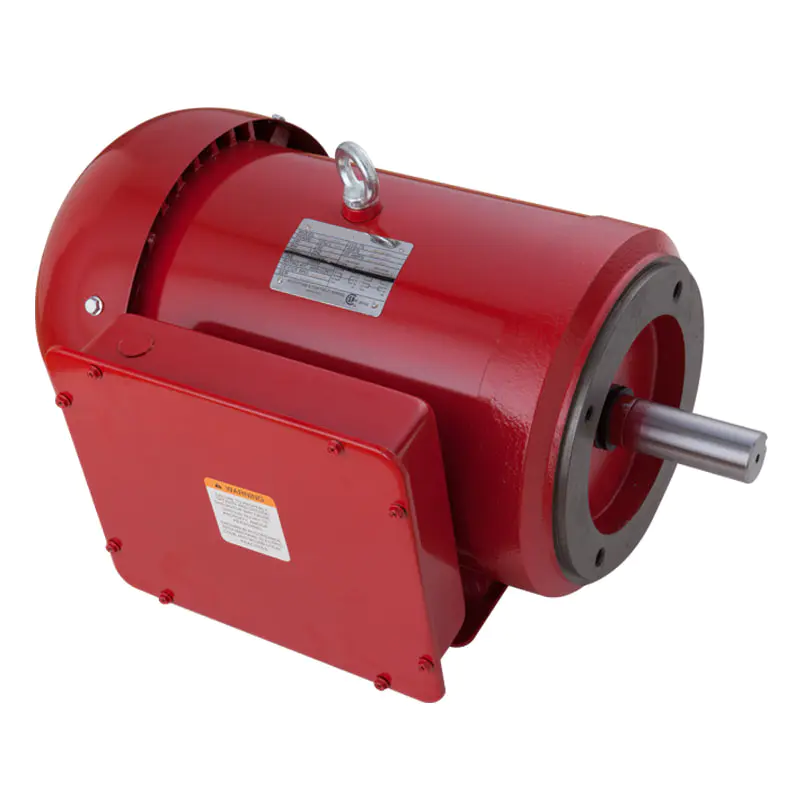

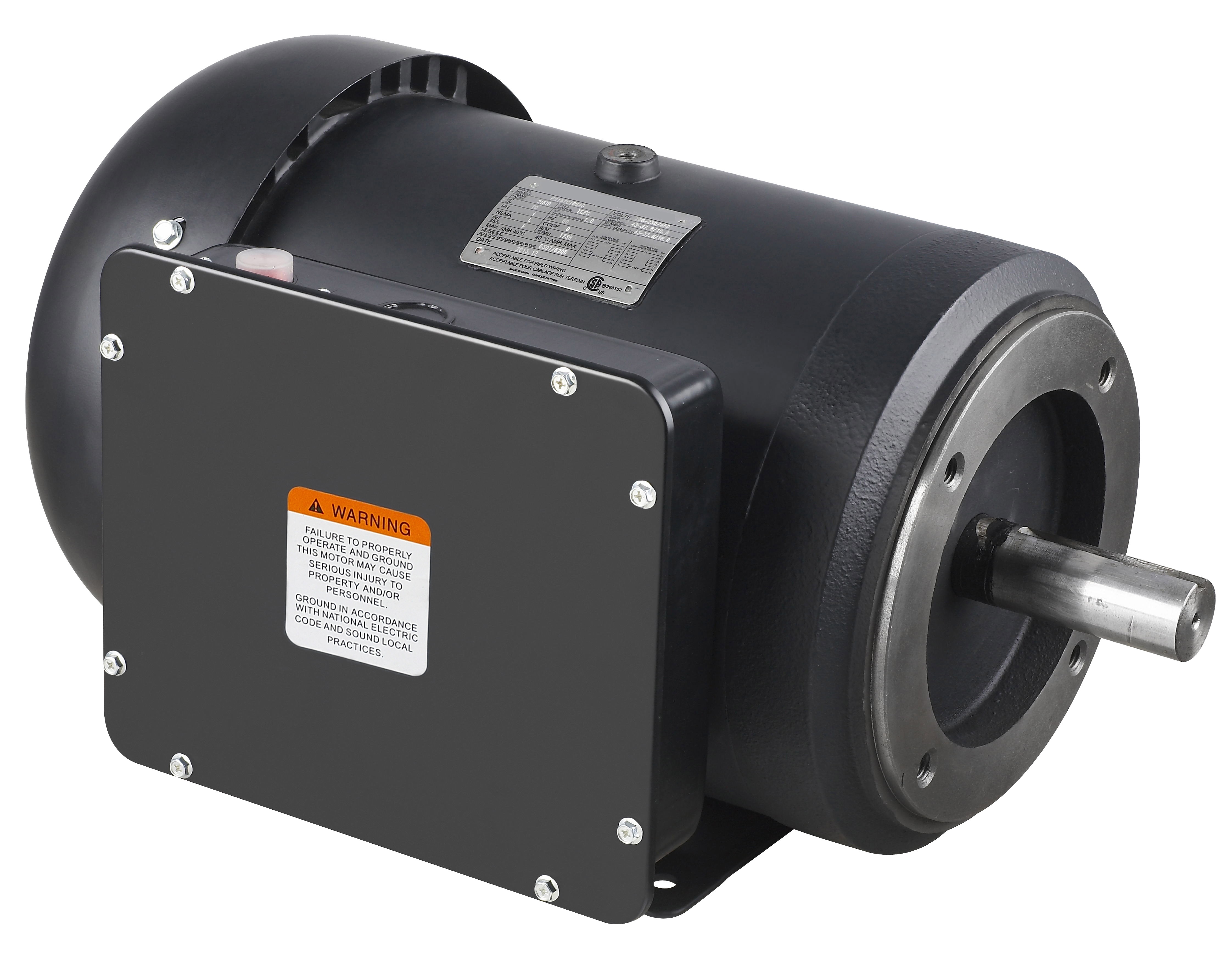

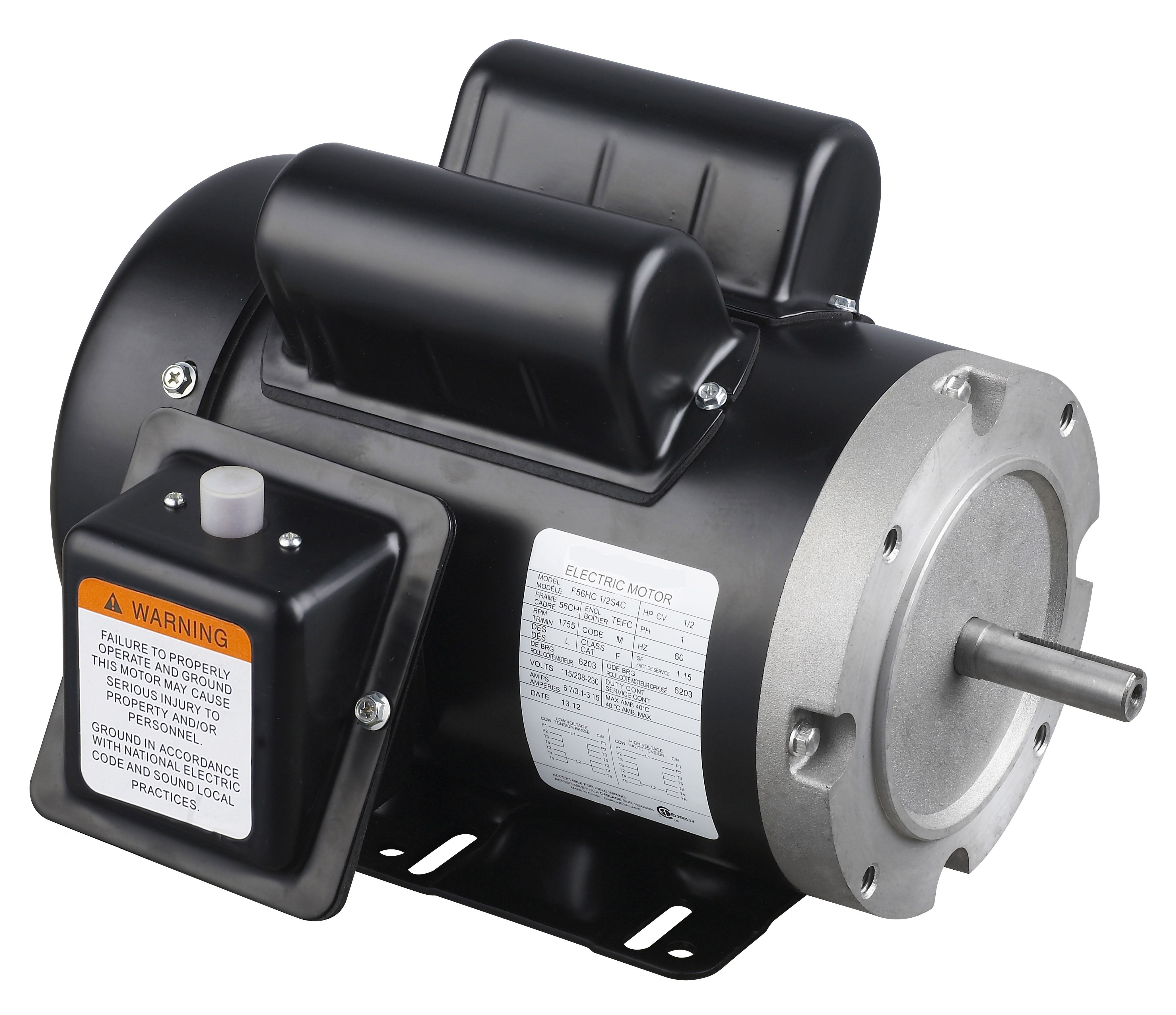

SD48/F56/F145/F184/F213
start-motors
0140
| Quantity: | |
|---|---|
Features:
HP: 1/3-10HP
Pole: 2P, 4P
Frame: 48, 56-215T
Rolled steel frame
Enclosure: TEFC/ODP
IP Class: IP44/IP23
Service Factor: 1.15
Capacitor Start and Capacitor Run
Accept C-face Kit
Accept Manual or Auto Thermal Protector
CSA&CUS,UL certified
1、Single-Phase, Totally Enclosed, General Purpose, Capacitor Start & Run Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1/3 | 3600 | 56 | F56 1/3S2C | 115/208-230 | 60 | TEFC | 1.15 | 4.55/2.19-2.36 | 23 |
1800 | 56 | F56 1/3S4C | 115/208-230 | 60 | TEFC | 1.15 | 4.99/2.31-2.58 | 23 | |
1/2 | 3600 | 56 | F56 1/2S2C | 115/208-230 | 60 | TEFC | 1.15 | 6.01/3.06-3.11 | 24 |
1800 | 56 | F56 1/2S4C | 115/208-230 | 60 | TEFC | 1.15 | 6.68/3.11-3.45 | 25 | |
3/4 | 3600 | 56 | F56 3/4S2C | 115/208-230 | 60 | TEFC | 1.15 | 8.47/4.18-4.29 | 26 |
1800 | 56 | F56 3/4S4C | 115/208-230 | 60 | TEFC | 1.15 | 8.27/4^.22 | 29 | |
1 | 3600 | 56 | F56 1S2C | 115/208-230 | 60 | TEFC | 1.15 | 9.44/5.06^.9 | 30 |
1800 | 56 | F56 1S4C | 115/208-230 | 60 | TEFC | 1.15 | 9.7/4.89-5.04 | 38 | |
1800 | 143T | F143T1S4C | 115/208-230 | 60 | TEFC | 1.15 | 9.3/5.18-4.78 | 40 | |
1.5 | 3600 | 56 | F56 1.5S2C | 115/208-230 | 60 | TEFC | 1.15 | 13.14/7.33-6.77 | 38 |
1800 | 56 | F56 1.5S4C | 115/208-230 | 60 | TEFC | 1.15 | 13.63/7.09-6.66 | 43.8 | |
1800 | 145T | F145T1.5S4C | 115/208-230 | 60 | TEFC | 1.15 | 13.3/7.1-6.6 | 45 | |
2 | 3600 | 145T | F145T1.5S2C | 115/208-230 | 60 | TEFC | 1.15 | 13.1/7.0-6.6 | 40 |
3600 | 56 | F56 2S2C | 115/208-230 | 60 | TEFC | 1.15 | 15.3/8.48-7.8 | 44 | |
1800 | 56 | F56 2S4C | 115/208-230 | 60 | TEFC | 1.15 | 16.51/9.08-8.27 | 47 | |
1800 | 145T | F145T2S4C | 115/208-230 | 60 | TEFC | 1.15 | 16.51/9.08-8.27 | 55 | |
3 | 3600 | 145T | F145T2S2C | 115/208-230 | 60 | TEFC | 1.15 | 16.5/9.2-8.4 | 50 |
3600 | 56 | F56 3S2C | 115/208-230 | 60 | TEFC | 1.15 | 24.0/13-12.3 | 62 | |
3600 | 145T | F145T3S2C | 115/208-230 | 60 | TEFC | 1.15 | 24.0/13-12.3 | 67 | |
1800 | 182T | F182T3S4A | 208-230/460 | 60 | TEFC | 1.15 | 14.5-12.55/6.35 | 91.5 | |
5 | 3600 | 184T | F184T5S2A | 208-230/460 | 60 | TEFC | 1.15 | 22.95-19.75/10 | 95 |
1800 | 184T | F184T5S4A | 208-230/460 | 60 | TEFC | 1.15 | 23.4-20.3/10.3 | 110 | |
7.5 | 1800 | 213T | F213T7.5S4A | 208-230/460 | 60 | TEFC | 1.15 | 33.8-29.5/14.86 | 153 |
10 | 1800 | 215T | F215T10S4A | 208-230/460 | 60 | TEFC | 1.15 | 43-37.8/18.9 | 190 |
2、Single Phase Fractional Horsepower Premium Efficiency Motor (Two capacitors)
HP | RPM | NEMA | Model | Volts | ENCL. | BRGS. | S.F | Full Load AMPS | WGT. |
1/4 | 3600 | 48 | SD481/4S2C | 115/230 | ODP | BALL | 1.15 | 2.31/1.27-1.20 | 17.0 |
1800 | 48 | SD481/4S4C | 115/230 | ODP | BALL | 1.15 | 2.40/1.31-1.20 | 18.5 | |
3600 | 56 | SD561/4S2C | 115/230 | ODP | BALL | 1.15 | 2.50/1.38-1.30 | 20.0 | |
1800 | 56 | SD561/4S4C | 115/230 | ODP | BALL | 1.15 | 2.42/1.38-1.25 | 22.0 | |
1/3 | 3600 | 48 | SD481/3S2C | 115/230 | ODP | BALL | 1.15 | 2.45/1.35-1.22 | 17.5 |
1800 | 48 | SD481/3S4C | 115/230 | ODP | BALL | 1.15 | 3.10/1.70-1.55 | 19.0 | |
3600 | 56 | SD561/3S2C | 115/230 | ODP | BALL | 1.15 | 2.91/1.59-1.46 | 22.0 | |
1800 | 56 | SD561/3S4C | 115/230 | ODP | BALL | 1.15 | 2.76/1.63-1.49 | 23.0 | |
1/2 | 3600 | 48 | SD481/2S2C | 115/230 | ODP | BALL | 1.15 | 4.31/2.41-2.20 | 22.0 |
1800 | 48 | SD481/2S4C | 115/230 | ODP | BALL | 1.15 | 4.40/2.41-2.20 | 24.0 | |
3600 | 56 | SD561/2S2C | 115/230 | ODP | BALL | 1.15 | 4.90/2.61-2.47 | 25.0 | |
1800 | 56 | SD56 1/2S4C | 115/230 | ODP | BALL | 1.15 | 4.27/2.40-2.15 | 26.0 | |
3/4 | 3600 | 48 | SD483/4S2C | 115/230 | ODP | BALL | 1.15 | 6.20/3.40-3.10 | 24.0 |
1800 | 48 | SD483/4S4C | 115/230 | ODP | BALL | 1.15 | 6.30/3.45-3.20 | 26.0 | |
3600 | 56 | SD56 3/4S2C | 115/230 | ODP | BALL | 1.15 | 6.58/3.61-3.28 | 27.0 | |
1800 | 56 | SD563/4S4C | 115/230 | ODP | BALL | 1.15 | 6.30/3.50/3.20 | 28.0 | |
1 | 3600 | 48 | SD481S2C | 115/230 | ODP | BALL | 1.15 | 7.98/4.374.00 | 25.0 |
1800 | 48 | SD481S4C | 115/230 | ODP | BALL | 1.15 | 7.96/4.364.00 | 27.0 | |
3600 | 56 | SD561S2C | 115/230 | ODP | BALL | 1.15 | 8.70/4.804.41 | 30.0 | |
1800 | 56 | SD561S4C | 115/230 | ODP | BALL | 1.15 | 8.26/4.62^.10 | 31.0 | |
1.5 | 3600 | 56 | SD561.5S2C | 115/230 | ODP | BALL | 1.15 | 12.19/6.75-6.12 | 36.0 |
1800 | 56 | SD56 .5S4C | 115/230 | ODP | BALL | 1.15 | 11.61/6.64-6.91 | 37.0 | |
2 | 3600 | 56 | SD562S2C | 115/230 | ODP | BALL | 1.15 | 15.35/8.50-7.71 | 41.0 |
1800 | 56 | SD562S4C | 115/230 | ODP | BALL | 1.15 | 16.81/9.23-8.35 | 44.0 | |
3 | 3600 | 56 | SD563S2A | 208-230 | ODP | BALL | 1.15 | 12.40-11.23 | 40.0 |
An introduction to our NEMA motors and their market positioning.
NEMA Single Phase is a leading provider of premium efficiency motors, specializing in NEMA single phase, totally enclosed motors for fractional horsepower applications. Our brand is dedicated to not only providing high-quality products but also offering comprehensive solutions to address the pain points of our customers.
At NEMA Single Phase, we understand the importance of addressing all details before and after the sale, building trust with our clients, and fostering long-term cooperative relationships. Our ultimate goal is to provide localization services to meet the specific needs of our customers in the North American market, including the United States, Canada, and Mexico.
With a focus on professionalism and expertise, NEMA Single Phase is committed to delivering top-of-the-line motors that meet the highest efficiency standards. Our core products include NEMA single phase motors, totally enclosed NEMA motors, and fractional horsepower premium efficiency NEMA motors.
Choose NEMA Single Phase for reliable, efficient, and tailored motor solutions that exceed expectations and drive success in your business.
Typical applications of NEMA motors:
1. CNC Machine Tools: Used to control the movement of cutting tools and worktables to achieve precision machining.
2. Printing Machinery: Controls key components such as printing rollers and conveyor belts to ensure printing quality and stability.
3. Medical Equipment: Used for positioning and controlling medical imaging equipment, laboratory instruments, etc.
If you have any concerns about the following issues please feel to contact me
Price: Can you offer more competitive pricing?
Quality/Reliability: How durable is the product?
Delivery Time: Can you deliver on time?
Payment Methods: What international payment methods do you accept?
After-Sales Service: What happens if there are problems?
Please contact our sales team for details regarding model naming.
