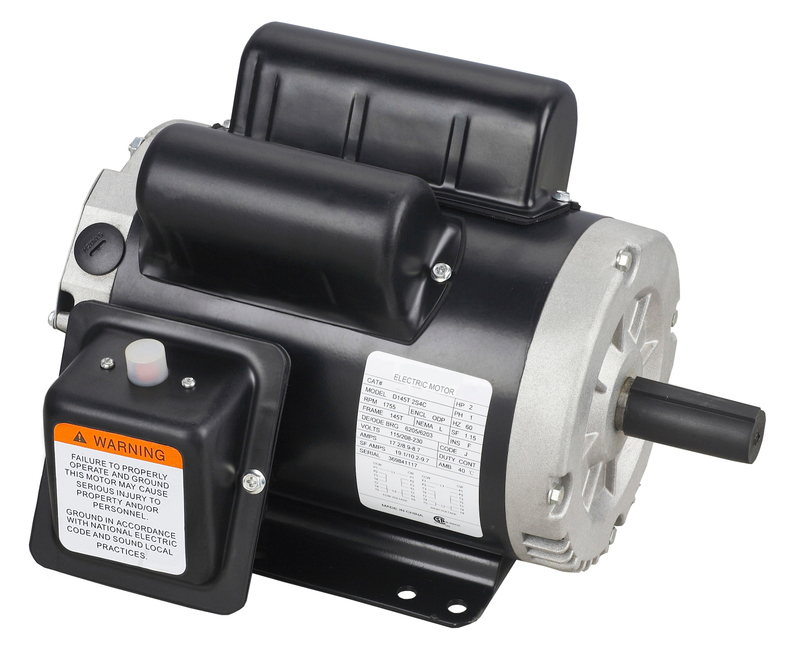

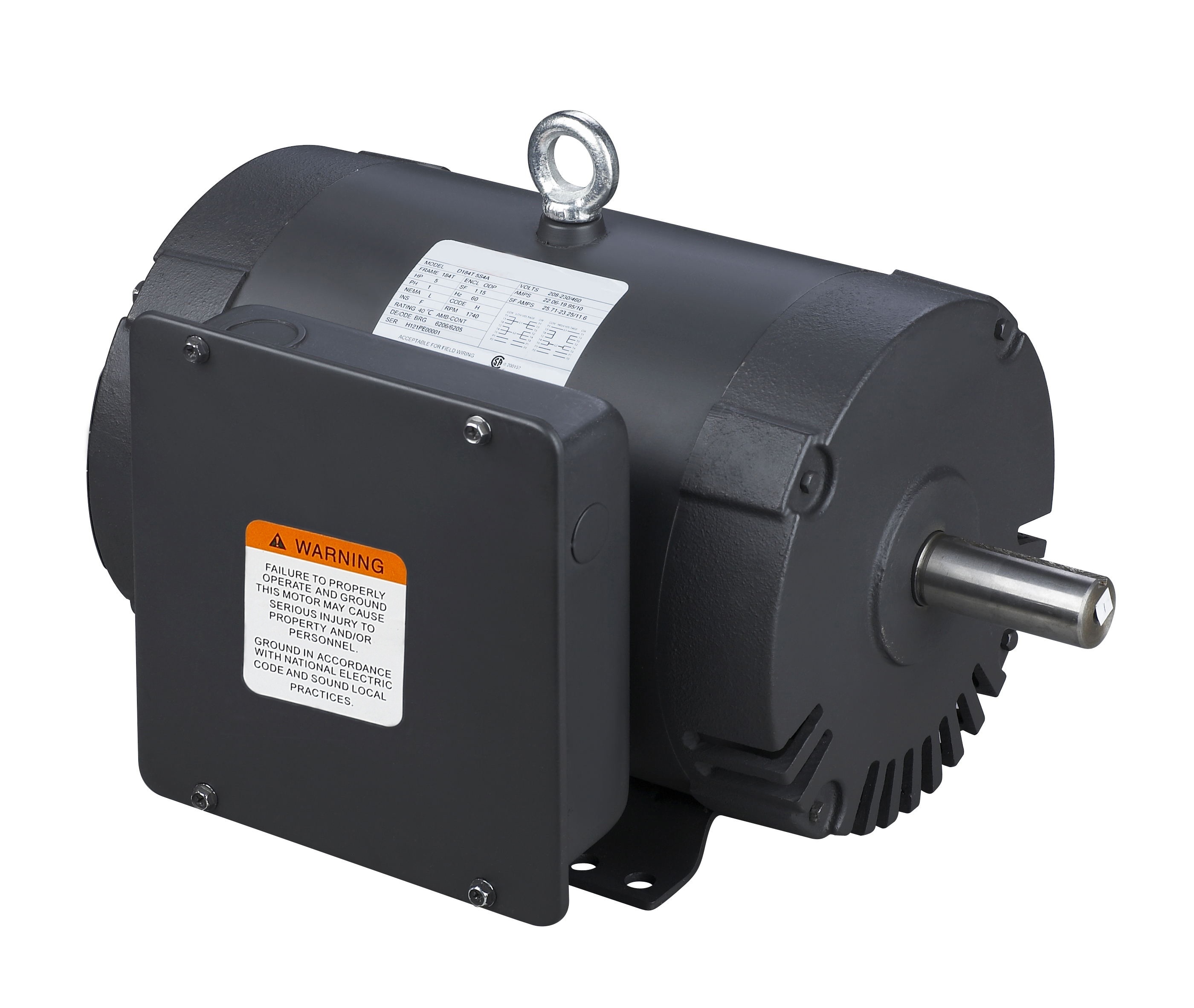

Totally Enclosed Single-Phase, Dripproof, General Purpose, Capacitor Start/Run Motor

Model:
D56/F145/F181/F213T
Brand:
start-motors
Code:
0139

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

HP: 1/3-10HP

Pole: 2P, 4P

Frame: 56-215T

Rolled steel, C-face Kit

NEMA design: N

Enclosure: ODP, TEFC

IP Class: IP23, IP44

Service Factor: 1.15

Capacitor Start and Capacitor Run

Accept C-face Kit

Accept Manual or Auto Thermal Protector

1. Totally Enclosed Single-Phase Capacitor Run Motor

HP	RPM	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	WGT. LBS.
1/3	3600	56	F56 1/3S2C-Y	115/208-230	60	TEFC	1.15	4.7/2.3-2.5	19
1/3	1800	56	F56 1/3S4C-Y	115/208-230	60	TEFC	1.15	4.3/2.1-2.3	19
1/2	3600	56	F56 1/2S2C-Y	115/208-230	60	TEFC	1.15	5.9/2.9-3.1	20
1/2	1800	56	F56 1/2S4C-Y	115/208-230	60	TEFC	1.15	5.8/2.8-3.0	22
3/4	3600	56	F56 3/4S2C-Y	115/208-230	60	TEFC	1.15	8.1/4.24.1	24
3/4	1800	56	F56 3/4S4C-Y	115/208-230	60	TEFC	1.15	8.1/4.CM.2	27
1	3600	56	F56 1S2C-Y	115/208-230	60	TEFC	1.15	8.3/4.84.4	26
	3600	143T	F143T1S2C-Y	115/208-230	60	TEFC	1.15	8.3/4.84.4	27
	3600	143T	F143T1S2A-Y	208-230/460	60	TEFC	1.15	4.94.6/2.4	26
	1800	56	F56 1S4C-Y	115/208-230	60	TEFC	1.15	9.2/5.0-4.7	38
	1800	143T	F143T1S4C-Y	115/208-230	60	TEFC	1.15	9.2Z5.0-4.7	39
	1800	143T	F143T1S4A-Y	208-230/460	60	TEFC	1.15	4.9-47/2.5	38
1.5	3600	56	F56 1.5S2C-Y	115/208-230	60	TEFC	1.15	13.1/7.0-6.6	33
	3600	145T	F145T1.5S2C-Y	115/208-230	60	TEFC	1.15	13.1/7.0-6.6	34
	3600	145T	F145T1.5S2A-Y	208-230/460	60	TEFC	1.15	7.1-6.3/3.3	33
	1800	56	F561.5S4C-Y	115/208-230	60	TEFC	1.15	13.1/7.0-6.6	42
	1800	145T	F145T1.5S4C-Y	115/208-230	60	TEFC	1.15	13.3/7.1-6.6	43
	1800	145T	F145T1.5S4A-Y	208-230/460	60	TEFC	1.15	6.4-5.9/3.0	42
2	3600	56	F56 2S2C-Y	115/208-230	60	TEFC	1.15	16.5/9.1-8.3	43
	3600	145T	F145T2S2C-V	115/208-230	60	TEFC	1.15	16.5/9.1-8.3	44
	3600	145T	F145T2S2A-Y	208-230/460	60	TEFC	1.15	9.2/8.14.1	43
	1800	56	F56 2S4C-Y	115/208-230	60	TEFC	1.15	16.5/9.0-8.3	44
	1800	145T	F145T2S4C-Y	115/208-230	60	TEFC	1.15	16.5/9.0-8.3	43
	1800	145T	F145T2S4A-Y	208-230/460	60	TEFC	1.15	9.4-8.6/4.5	44
3	3600	56	F56 3S2C-Y	115/208-230	60	TEFC	1.15	24.0/13.2-12.3	51
	3600	145T	F145T3S2C-V	115/208-230	60	TEFC	1.15	24.0/13-12.3	52
	3600	145T	F145T3S2A-Y	208-230/460	60	TEFC	1.15	14-12.5/6.5	51

2、Single-Phase, Dripproof, General Purpose, Capacitor Start & Run Motor

HP	RPM 60HZ	NEMA FRAME	Model	Volts	HZ	ENCL.	S.F	Full Load AMPS	WGT. LBS.
1/3	3600	56	D56 1/3S2C	115/208-230	60	ODP	1.15	4.4/2.25-2.35	23
1/3	1800	56	D56 1/3S4C	115/208-230	60	ODP	1.15	4.3/2.3-2.1	24.5
1/2	3600	56	D56 1/2S2C	115/208-230	60	ODP	1.15	6.0/3.06-3.11	24
1/2	1800	56	D56 1/2S4C	115/208-230	60	ODP	1.15	5.8/3.0-2.8	25
3/4	3600	56	D56 3/4S2C	115/208-230	60	ODP	1.15	8.1/4.2-4.1	26
3/4	1800	56	D56 3/4S4C	115/208-230	60	ODP	1.15	8.27/4^.22	29
1	3600	56	D56 1S2C	115/208-230	60	ODP	1.15	9.66/5.37-5.24	30
	1800	56	D56 1S4C	115/208-230	60	ODP	1.15	9.5/4.73^.87	38
	1800	143T	D143T1S4C	115/208-230	60	ODP	1.15	11.5/6.0-5.7	41
1.5	3600	56	D56 1.5S2C	115/208-230	60	ODP	1.15	13/6.98-6.58	37
	1800	56	D56 1.5S4C	115/208-230	60	ODP	1.15	14.2/7.37-7.23	42
	1800	145T	D145T1.5S4C	115/208-230	60	ODP	1.15	15/8.1-7.6	45
2	3600	145T	D145T1.5S2C	115/208-230	60	ODP	1.15	14.5/8.0-7.6	41
	3600	56	D56 2S2C	115/208-230	60	ODP	1.15	17.24/8.55-7.96	44
	1800	56	D56 2S4C	115/208-230	60	ODP	1.15	18.9/9.96	47
	1800	145T	D145T2S4C	115/208-230	60	ODP	1.15	19.0/10-9.3	50
3	3600	145T	D145T2S2C	115/208-230	60	ODP	1.15	18/10.2-9.4	48
	3600	56	D56 3S2C	115/208-230	60	ODP	1.15	12.59-11.28/5.97	60
	3600	145T	D145T3S2C	115/208-230	60	ODP	1.15	25/14.2-13	67
	1800	182T	D182T3S4C	208-230	60	ODP	1.15	13.5-12/6.2	88
5	3600	184T	D184T5S2C	208-230	60	ODP	1.15	22-20/10	95
5	1800	184T	D184T5S4C	208-230	60	ODP	1.15	22.5-20/10	96
7.5	1800	213T	D213T7.5S4C	208-230	60	ODP	1.15	32.8-30/15.2	153
10	1800	215T	D215T10S4C	208-230	60	ODP	1.15	41.2-39/19.5	190
