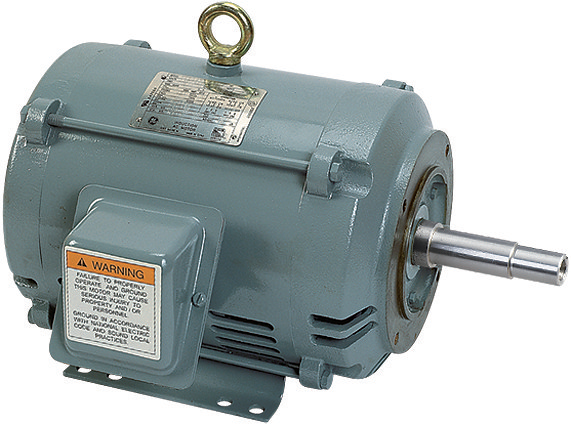

Frame(ODP)140/180/210JM
start-motors
0143
| Quantity: | |
|---|---|
Features:
HP: 1HP-15HP
Pole: 2P, 4P
Frame: 140JM/JP, 180JM/JP, 210JM/JP
Rolled steel
NEMA design: B
Service factor: 1.15
Insulation Class: F (UL approved)
Enclosure: ODP
IP Class: IP23

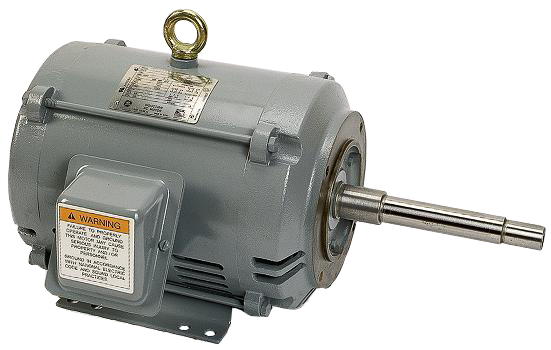

1、OPD NEMA Three-Phase JM Close-Coupled Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1 | 3600 | 143JM | D143JM1M2A | 208-230/460 | 60 | ODP | 1.15 | 3.7-3.4/1.7 | 35 |
3600 | 143JM | D143JM1M2D | 575 | 60 | ODP | 1.15 | 1.36 | 35 | |
1800 | 143JM | D143JM1M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 44 | |
1800 | 143JM | D143JM1M4D | 575 | 60 | ODP | 1.15 | 1.28 | 44 | |
1.5 | 3600 | 143JM | D143JM1.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.6<2/2.1 | 41 |
3600 | 143JM | D143JM1.5M2D | 575 | 60 | ODP | 1.15 | 1.68 | 41 | |
1800 | 145JM | D145JM1.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5.1 <6/2.3 | 47 | |
1800 | 145JM | D145JM1.5M4D | 575 | 60 | ODP | 1.15 | 1.84 | 47 | |
2 | 3600 | 145JM | D145JM2M2A | 208-230/460 | 60 | ODP | 1.15 | 5.9-5.4/27 | 41 |
3600 | 145JM | D145JM2M2D | 575 | 60 | ODP | 1.15 | 2.16 | 41 | |
1800 | 145JM | D145JM2M4A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2/3.1 | 51 | |
1800 | 145JM | D145TJM2M4D | 575 | 60 | ODP | 1.15 | 2.48 | 51 | |
3 | 3600 | 145JM | D145JM3M2A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 44 |
3600 | 145JM | D145JM3M2D | 575 | 60 | ODP | 1.15 | 3.2 | 44 | |
1800 | 182JM | D182JM3M4A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 84 | |
1800 | 182JM | D182JM3M4D | 575 | 60 | ODP | 1.15 | 3.2 | 84 | |
5 | 3600 | 182JM | D182JM5M2A | 208-230/460 | 60 | ODP | 1.15 | 14.0-12.8/6.4 | 79 |
3600 | 182JM | D182JM5M2D | 575 | 60 | ODP | 1.15 | 5.12 | 79 | |
1800 | 184JM | D184JM5M4A | 208-230/460 | 60 | ODP | 1.15 | 14.3-13.0/6.5 | 91 | |
1800 | 184JM | D184JM5M4D | 575 | 60 | ODP | 1.15 | 5.2 | 91 | |
7.5 | 3600 | 184JM | D184JM7.5M2A | 208-230/460 | 60 | ODP | 1.15 | 20.2-18.4/9.2 | 86 |
3600 | 184JM | D184JM7.5M2D | 575 | 60 | ODP | 1.15 | 7.12 | 86 | |
1800 | 213JM | D213JM7.5M4A | 208-230/460 | 60 | ODP | 1.15 | 20.9-19.0/9.5 | 133 | |
1800 | 213JM | D213JM7.5M4D | 575 | 60 | ODP | 1.15 | 7.6 | 133 | |
10 | 3600 | 213JM | D213JM10M2A | 208-230/460 | 60 | ODP | 1.15 | 27.7-25.2/12.6 | 127 |
3600 | 213JM | D213JM10M2D | 575 | 60 | ODP | 1.15 | 10.0 | 127 | |
1800 | 215JM | D215JM10M4A | 208-230/460 | 60 | ODP | 1.15 | 27.5-25.0/12.5 | 144 | |
1800 | 215JM | D215JM10M4D | 575 | 60 | ODP | 1.15 | 10.0 | 144 | |
15 | 3600 | 215JM | D215JM15M2A | 208-230/460 | 60 | ODP | 1.15 | 39.8-36.2/18.1 | 139 |
3600 | 215JM | D215JM15M2D | 575 | 60 | ODP | 1.15 | 13.8 | 139 |
2、OPD NEMA Three-Phase JP Close-Coupled Pump Motor
HP | RPM | NEMA | Model | Volts | HZ | ENCL. | S.F | Full Load AMPS | WGT. |
1 | 3600 | 143JP | D143JP1M2A | 208-230/460 | 60 | ODP | 1.15 | 3.7-3.4/1.7 | 35 |
3600 | 143JP | D143JP1M2D | 575 | 60 | ODP | 1.15 | 1.36 | 35 | |
1800 | 143JP | D143JP1M4A | 208-230/460 | 60 | ODP | 1.15 | 3.5-3.2/1.6 | 44 | |
1800 | 143JP | D143JP1M4D | 575 | 60 | ODP | 1.15 | 1.28 | 44 | |
1.5 | 3600 | 143JP | D143JP1.5M2A | 208-230/460 | 60 | ODP | 1.15 | 4.64.2/2.1 | 41 |
3600 | 143JP | D143JP1.5M2D | 575 | 60 | ODP | 1.15 | 1.68 | 41 | |
1800 | 145JP | D145JP1.5M4A | 208-230/460 | 60 | ODP | 1.15 | 5.14.6/2.3 | 47 | |
1800 | 145JP | D145JP1.5M4D | 575 | 60 | ODP | 1.15 | 1.84 | 47 | |
2 | 3600 | 145JP | D145JP2M2A | 208-230/460 | 60 | ODP | 1.15 | 5.9-5.4/27 | 41 |
3600 | 145JP | D145JP2M2D | 575 | 60 | ODP | 1.15 | 2.16 | 41 | |
1800 | 145JP | D145JP2M4A | 208-230/460 | 60 | ODP | 1.15 | 6.8-6.2/3.1 | 51 | |
1800 | 145JP | D145TJP2M4D | 575 | 60 | ODP | 1.15 | 2.48 | 51 | |
3 | 3600 | 145JP | D145JP3M2A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 44 |
3600 | 145JP | D145JP3M2D | 575 | 60 | ODP | 1.15 | 3.2 | 44 | |
1800 | 182JP | D182JP3M4A | 208-230/460 | 60 | ODP | 1.15 | 8.8-8.0/4.0 | 84 | |
1800 | 182JP | D182JP3M4D | 575 | 60 | ODP | 1.15 | 3.2 | 84 | |
5 | 3600 | 182JP | D182JP5M2A | 208-230/460 | 60 | ODP | 1.15 | 14.0-12.8/6.4 | 79 |
3600 | 182JP | D182JP5M2D | 575 | 60 | ODP | 1.15 | 5.12 | 79 | |
1800 | 184JP | D184JP5M4A | 208-230/460 | 60 | ODP | 1.15 | 14.3-13.0/6.5 | 91 | |
1800 | 184JP | D184JP5M4D | 575 | 60 | ODP | 1.15 | 5.2 | 91 | |
7.5 | 3600 | 184JP | D184JP7.5M2A | 208-230/460 | 60 | ODP | 1.15 | 20.2-18.4/9.2 | 86 |
3600 | 184JP | D184JP7.5M2D | 575 | 60 | ODP | 1.15 | 7.12 | 86 | |
1800 | 213JP | D213JP7.5M4A | 208-230/460 | 60 | ODP | 1.15 | 20.9-19.0/9.5 | 133 | |
1800 | 213JP | D213JP7.5M4D | 575 | 60 | ODP | 1.15 | 7.6 | 133 | |
10 | 3600 | 213JP | D213JP10M2A | 208-230/460 | 60 | ODP | 1.15 | 27.7-25.2/12.6 | 127 |
3600 | 213JP | D213JP10M2D | 575 | 60 | ODP | 1.15 | 10.0 | 127 | |
1800 | 215JP | D215JP10M4A | 208-230/460 | 60 | ODP | 1.15 | 27.5-25.0/12.5 | 144 | |
1800 | 215JP | D215JP10M4D | 575 | 60 | ODP | 1.15 | 10.0 | 144 | |
15 | 3600 | 215JP | D215JP15M2A | 208-230/460 | 60 | ODP | 1.15 | 39.8-36.2/18.1 | 139 |
3600 | 215JP | D215JP15M2D | 575 | 60 | ODP | 1.15 | 13.8 | 139 |
Please contact our sales team for details regarding model naming.
